*Machine picture shown is reference only
HP-330H
Automatic Running Saw Machine
Dual Pneumatic Ruler
Pneumatic Saw Lock/Unlock Shaft
Chrome Treatment Steel Working Table
Exclusive Developed Control System
Ball Screw Driven Lifting System
Heavy Duty Rear Loading

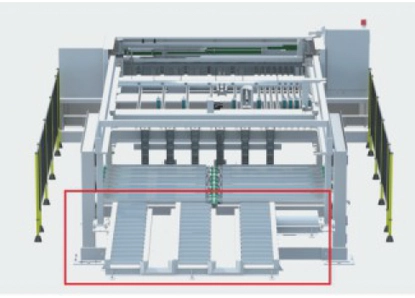

Optional Configuration
Rear Loading with Powered Conveyor Roller Conveyor
Specification of HP330H
| Model | HP330H |
|---|---|
| Feeding method | Rear feeding |
| Max. cutting length | 3180 mm |
| Max. cutting width | 3300 mm |
| Max. height of blade | 120 mm |
| Main saw blade | 400 x 4.4 / 3.2 x 75 x 72T x 15/105 450 x 4.4 / 3.2 x 75 x 72T x 15/105 (optional) |
| Scoring saw blade | 160 x 5.3 / 3.2 x 45 x 24T |
| Forward speed of saw carriage | 5 - 100 m/min |
| Backward speed of saw carriage | 0 - 100 m/min |
| Forward speed of mechanical grippers | 0 - 100 m/min |
| Backward speed of mechanical grippers | 0 - 100 m/min |
| Side pressure device | Pneumatic double side pressing wheels |
| Motor power of main saw shaft | 22 kW |
| Motor power of scoring saw shaft | 2.2 kW |
| Saw carriage servo motor | 1.8 kW |
| Feeding shaft motor | 1.8 kW |
| Mechanical gripper's quantity | 10 pcs |
| High pressure blower of air floating table | 2.2 kW |
| Rear feeding table's dimensions | 3800 x 2200 x 6000 mm |
| Floor area | 8100 x 5400 x 2200 mm |
| Weight | 10500 kg |
| Minimum cutting size | 50 x 30 mm |
| Total power | 39 kW |
