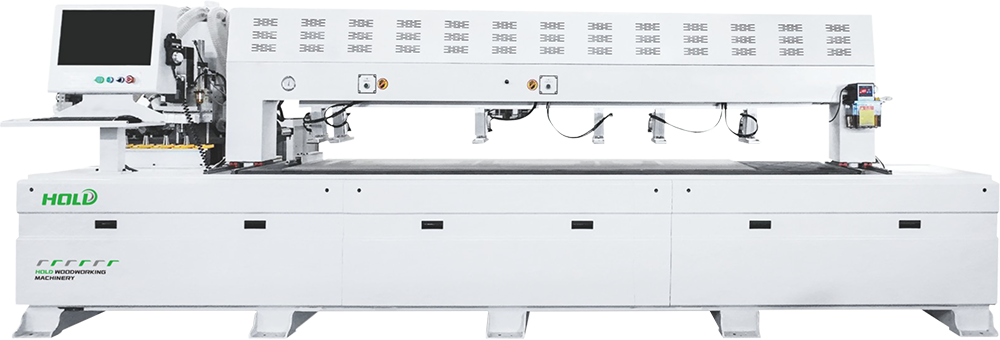

*Machine picture shown is reference only
HMD22H6
Door, Wall and Cabinet Processing Center Machine
- Capable of processing side holes, cam fittings, blind holes, slots, concealed connectors, hinge holes, straighteners, handle free grooves, lock holes, hinges, and hardware handle slots
- Six tool magazine with automatic tool change and automatic tool setting
- Handwheel mode supports cam fitting scanning and processing.
- Supports NC file integration and barcode scanning processing. Customizable development for hardware hole processing.
Specification Door Wall and Cabinet Processing Center Machine
| Model | HMD22H |
|---|---|
| Machine dimensions | 4500 x 1300 x 1600 mm |
| Total power | 15 kW |
| Processing length | 2800 mm |
| Processing thickness | 60 mm |
| Horizontal motor | 2.2 kW x 1, 3.5 kW x 1, 18000 rpm |
| Vertical motor | 6 kW x 1, 18000 rpm |
| Servo motor | 750 kW x 3 |
| Idle speed | 100 m/min |
| Processing speed | 0 - 60 m/min |
| Machine weight | 1300 kg |
* The above parameters and functions are subject to change without prior notice, the actual machine shall prevail.
