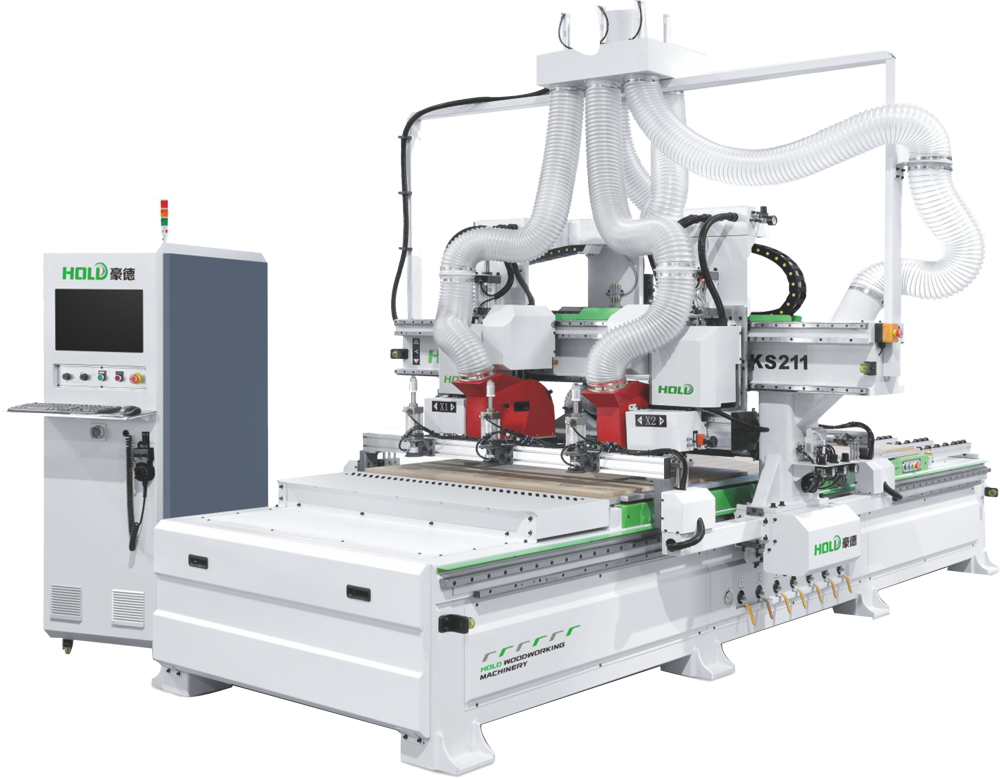

*Machine picture shown is reference only
HKS211
CNC Door Pocket Nesting Machine
Specification HKS211 CNC Door Pocket Nesting Machine
| Model | HKS211 |
|---|---|
| Processing size | 1220 x 2800 x 30 mm |
| Idle speed | 80 m/min |
| Working speed | 12 - 18 m/min |
| Spindle power | 6 kW |
| Main saw power | 5.8 kW |
| Main saw RPM | 3000 r/min |
| Main saw blade specification | Φ 30 x 300 mm |
| Scoring saw power | 1.1 kW |
| Scoring saw RPM | 12000 r/min |
| Scoring saw blade specification | Φ 22 x 120 mm |
| Total power | 32 kW |
| Machine dimension | 4700 x 2850 x 3050 mm |
| Table height | 840 mm |
| Quantity of suction port | Φ 200 x 1 + Φ 100 x 1 |
