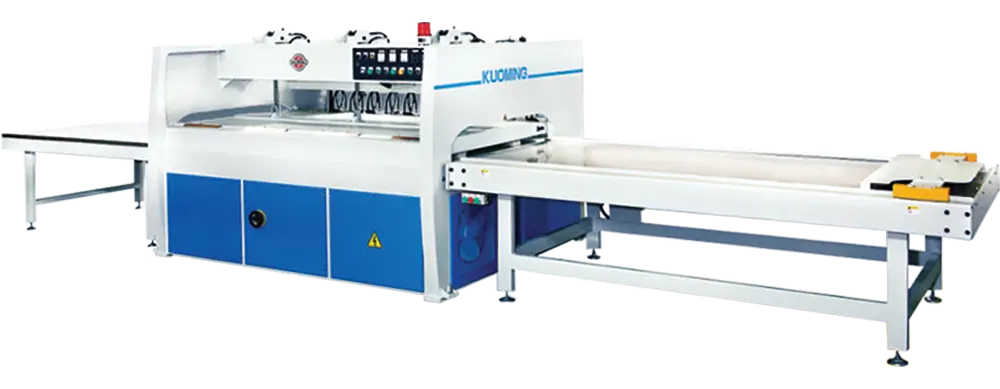

High Frequency Press Edge Glue
Standard Press

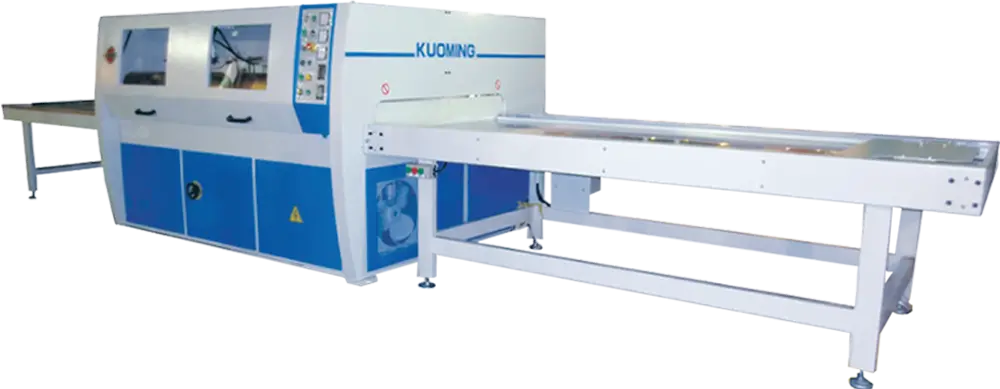

High Frequency Press Edge Glue
CE Certification

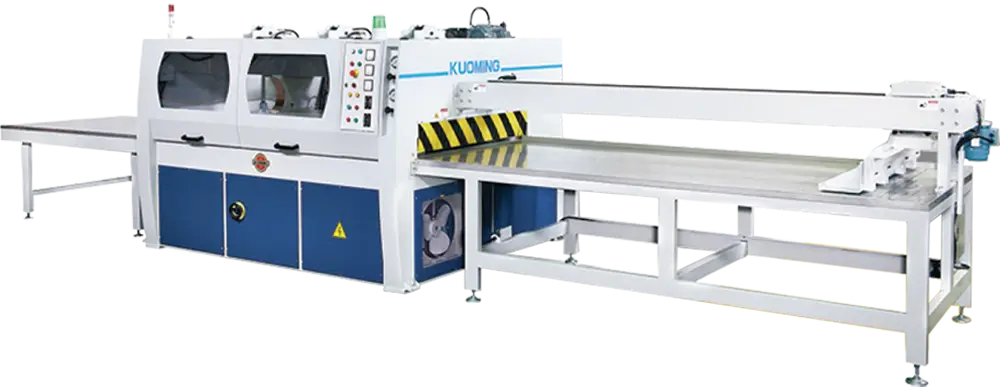

High Frequency Press Edge Glue
Framed Inlet Table

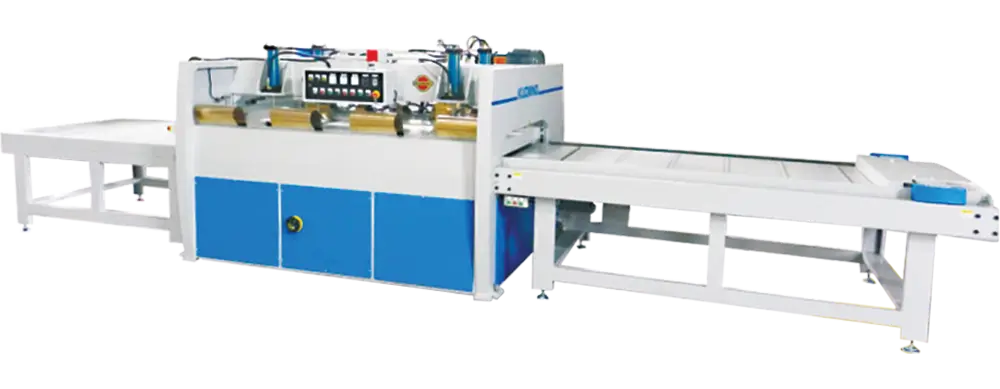

High Frequency Press Edge Glue
Heavy Duty

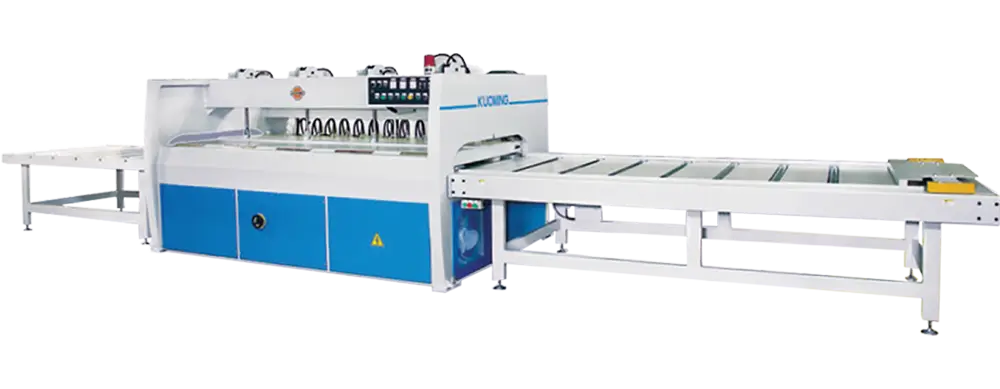

High Frequency Press Edge Glue
3M Length Edge Glue
Specification Edge Glue
| Model | KGW-1010H | KGW-1030H | KGW-1040H | KGW-1050H |
|---|---|---|---|---|
| Voltage | 3⌀ 220 / 380 / 400 / 415 / 440 / 480V | 3⌀ 220 / 380 / 400 / 415 / 440 / 480V | 3⌀ 220 / 380 / 400 / 415 / 440 / 480V | 3⌀ 220 / 380 / 400 / 415 / 440 / 480V |
| Input power | 15 KVA | 40 KVA | 60 KVA | 90 KVA |
| Output power | 10 kW | 30 kW | 30 kW | 60 kW |
| Platen (W x L) | 900 x 1220 mm 900 x 1800 mm | 1220 x 2440 mm 1300 x 2500 mm 1500 x 2440 mm | 1220 x 3000 mm 1300 x 3000 mm 1500 x 3000 mm | 1300 x 3000 mm; 1220 x 5000 mm; 1300 x 5000 mm |
| Thickness | 10 ~ 30 mm | 0 ~ 60 mm / 30 ~ 300 mm | 10 ~ 60 mm / 30 ~ 300 mm | 15 ~ 50 mm / 30 ~ 300 mm |
| Pressing | Side, top pressing / hydraulic | Side, top pressing / hydraulic | Side, top pressing / hydraulic | Side, top pressing / hydraulic |
| Dimension (L x W x H) | 4350 x 1840 x 1900 mm 6120 x 1840 x 1900 mm | 7990 x 2210 x 1900 mm 8820 x 2300 x 1900 mm 8490 x 2300 x 1900 mm | 9230 x 2210 x 1900 mm 9330 x 2300 x 1900 mm 9730 x 2300 x 1900 mm | 9330 x 2300 x 1900 mm; 15850 x 2200 x 1950 mm; 15850 x 2300 x 1950 mm |
| Weight | 2800 / 3100 kg | 4650 / 4800 / 5200 kg | 6100 / 6200 / 6500 kg | 6800 / 9300 / 11900 kg |
