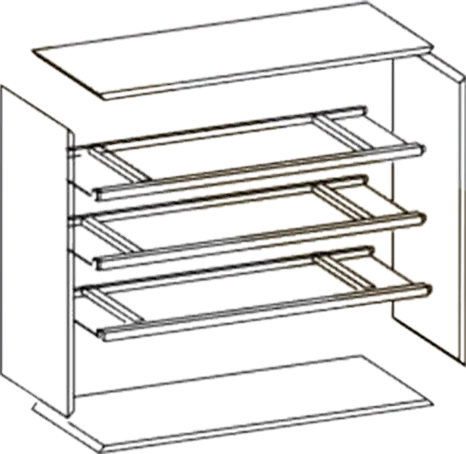

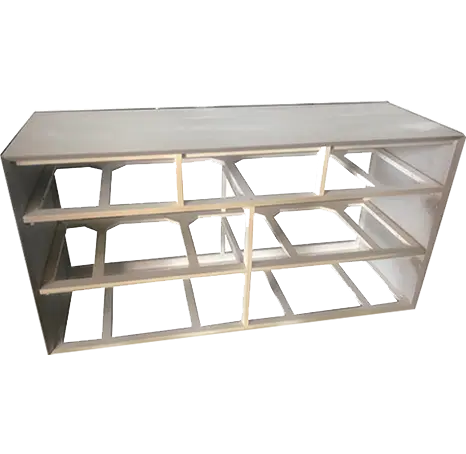

Cabinet Body

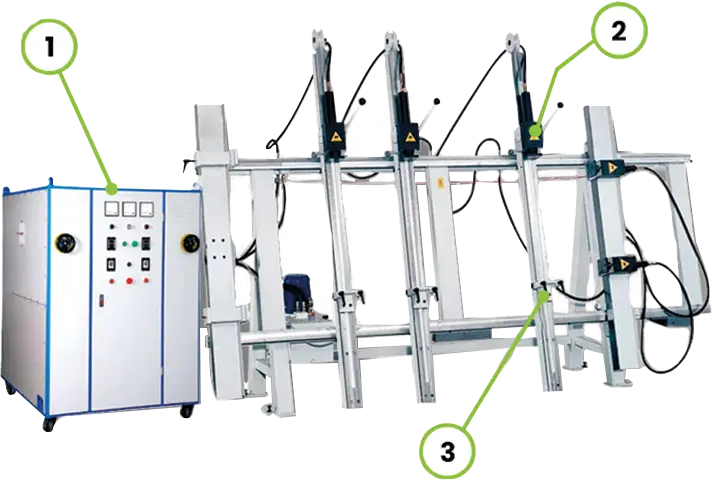

KGW-2412-8KC
Remark
- K : Kuoming, P : Press, W : Wood, 2412 : 2400 x 1200, 8K : 8 kW, C : Cabinet
- The appearance and weight are subject to change wihtout any notice.
- Best moisture content for wood to glue is under 12%
- Standard equip:
(1) Lifetime guarantee variable-capacitor,
(2) Spark suppressor
(3) Tube protector
(4) Accuracy positioning by square function computing
(5) Ball screw made in Taiwan
(6) Equipped with spark tube 5557
(7) Surge wave protection
(8) Optimization frequency setting for wood processing
Features
- Build in H.F system with International frequency 27.12 Mhz. 20% faster efficiency.
- Equipped with moveable side and rear pressing cylinder.
- Workable on 90° and 45° cabinet body, gkue curing time around 30 to 45 second.
Specification Cabinet Body
| Model | KGW-2412-8KC |
|---|---|
| Voltage | 3⌀ 220/380/400/415/440/480 V |
| Input power | 15 KVA |
| Output power | 8 kW |
| Platen (W x L) | Max. : 2400 x 1200 mm Min. : 450 x 450 mm |
| Depth | 200 to 500 mm |
| Pressing | Corner Pressing / Hydraulic |
| Dimension (L x W x H) | 2700 x 1500 x 1200 mm |
| Weight | 2200 kg |
