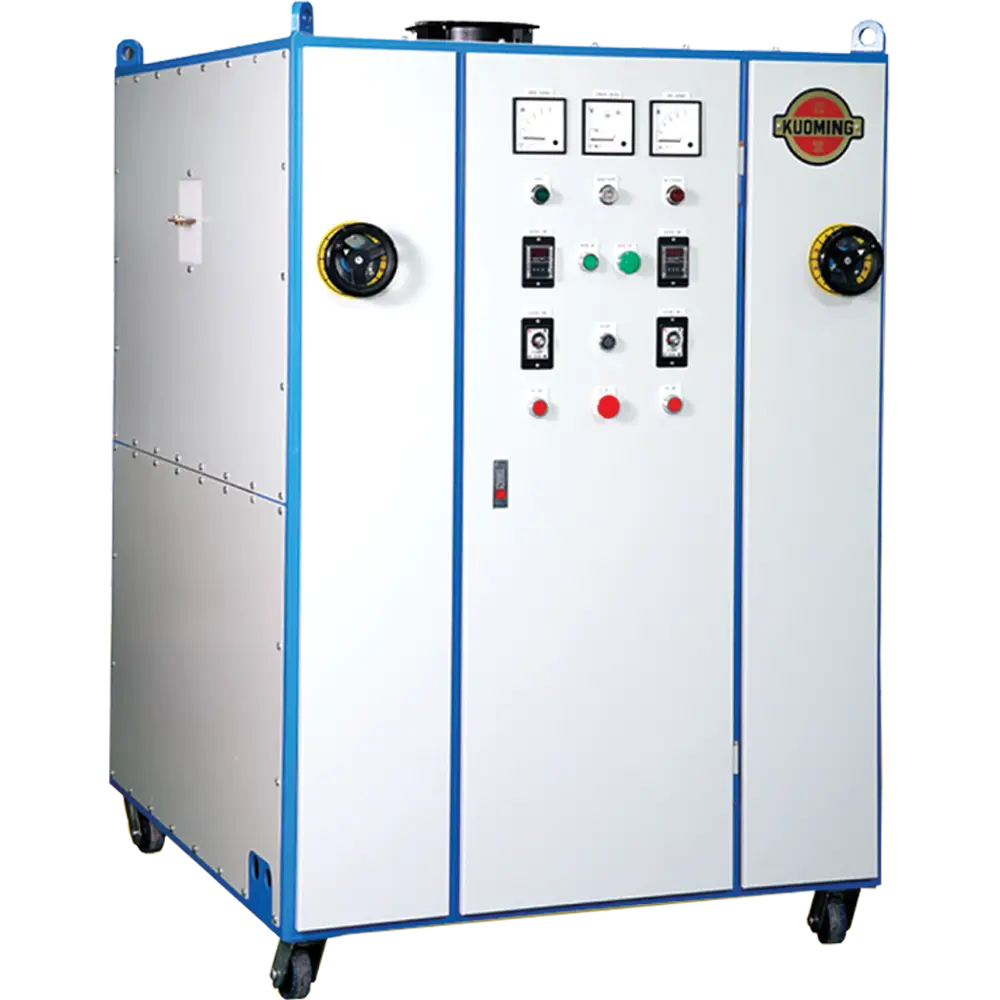

High Frequency Generator
KGW-HG2/HG4 Series
2 Outputs
4 Outputs
Advantages
- Each end bending press processing on different size products, due to equipped with two independent “variable capacitor” which for life-time free guarantee.
- High Frequency output links to hydraulic press / inclined bed / edge glue press.
- Best setting 13.56 Mhz High Frequency, curring for wood bending panel in just around 60 – 180 second.
- Automatically adjust high frequency current to maintain optimal wood shaping effect and efficiency.
Specification High Frequency Generator
| Model | KGW-1010 HG2/HG4 | KGW-1020 HG2/HG4 | KGW-1030 HG2/HG4 | KGW-1040 HG2/HG4 | KGW-1060 HG2/HG4 | KGW-10120 HG2/HG4 |
|---|---|---|---|---|---|---|
| Voltage | ||||||
| Input power | 15 KVA | 30 KVA | 50 KVA | 60 KVA | 90 KVA | 150 KVA |
| Output power | 10 kW | 20 kW | 30 kW | 40 kW | 60 kW | 120 kW |
| Thickness | 8~20 mm | 8~30 mm | 8~50 mm | 8~50 mm | 8~50 mm | 8~50 mm |
| Dimensions | 1000 × 800 × 1600 mm | 1340 × 1200 × 1700 mm | 1340 × 1200 × 1700 mm | 1500 × 1300 × 1800 mm | 1550 × 1500 × 1800 mm | 1600 × 1500 × 1800 mm |
| Weight | 400 kg | 550 kg | 650 kg | 800 kg | 900 kg | 1050 kg |
