Home > Product > Brand > Chia Chung

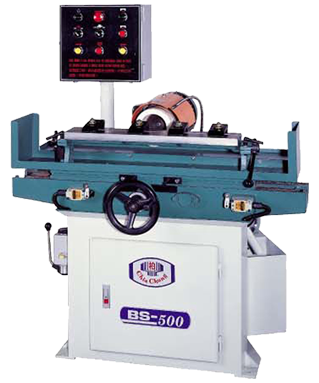

BS-500 - Heavy Duty Straight Knife Grinder

BS-500

Heavy Duty Straight Knife Grinder

It is suitable for sharpening knives in various industries such as plastic shredder knives, paper cutting knives, chipboard cutting knives, plastic cutting knives and all kinds of straight knives. (Magnetic chuck is available upon request)

optional accessories

Optional accessories: Magnetic chuck plate

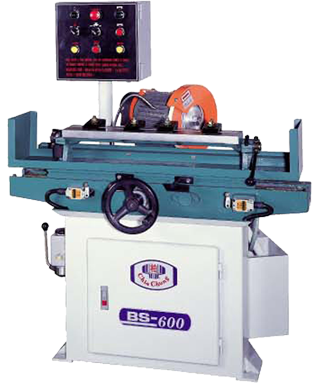

BS-600 - Super Sharp Straight Knife Grinder

BS-600

Super Sharp Straight Knife Grinder
Especially suitable for sharpening woodworking straight knife, plain knife and various types of industrial straight knives. The knife goes through a coarse grinding wheel before the fine grinding wheel for sharpening the knife edges twice. Super sharp edges are achieved while extending the knife cutting lifetime.
BS-650A - Super Sharp Straight Knife Grinder

BS-650

Super Sharp Straight Knife Grinder
Equipped with magnetic chuck for fast operation and easy calibration. The grinding speed is faster than BS-600.
Optional:
  • Travel speed is controlled by frequency inverter
  • Feed is indicated by digital scale

BS-650 Super Sharp Straight Knife Grinder (Chuck Plate Type)

    BS-650A - Super Sharp Straight Knife Grinder

    BS-900 | BS-1500 | BS-1800 |

    Super Sharp Straight Knife Grinder
    Well-suited for sharpening knives in various industries such as plastic crushing knives, paper cutting knives, chipboard cutting knives, plastic cutting knives and all kinds of straight knives. (The magnetic chuck is available upon request.)

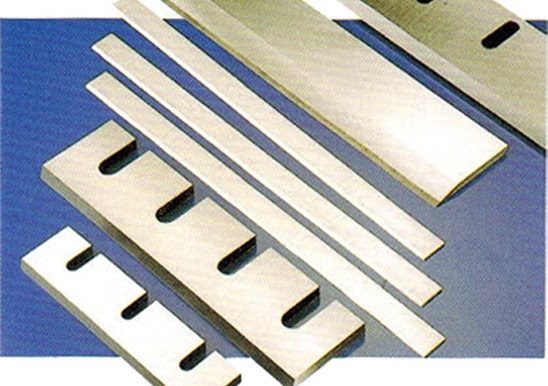

    Typical Application

    Download Catalog Chia Chung Heavy Duty Straight Knife Grinder
    Spesifikasi Heavy Duty Straight Knife Grinder

    MODEL
    BS-500
    BS-600
    BS-650A
    Coarse capacity
    660 x 126 x 16 mm
    660 x 76 x 16 mm
    660 x 76 x 16 mm
    Coarse grinding wheel size
    Ø 150 x 90 x 22 mm
    Ø 255 x 16 x 25.4 mm
    Ø 255 x 16 x 25.4 mm
    Fine grinding wheel size
    Ø 150 x 90 x 22 mm
    Ø 100 x 50 x 50.8 mm
    Ø 100 x 50 x 50.8 mm
    Grinding wheel speed
    3400 rpm
    1700 rpm
    1700 rpm
    Coarse wheel motor
    3 HP
    1 HP
    2 HP
    Fine wheel motor
    3 HP
    1 HP
    1⁄2 HP
    Table travel motor
    ¼ HP
    ¼ HP
    ¼ HP
    Coolant pump motor
    ⅛ HP
    ⅛ HP
    ⅛ HP
    Machine size
    1150 x 750 x 1350 mm
    1150 x 750 x 1350 mm
    1670 x 740 x 1500 mm
    N.W. / G.W.
    280 / 330 kgs
    270 / 320 kgs
    630 / 750 kgs
    MODEL
    BS-900
    BS-1500
    BS-1800
    Grinding capacity
    1000 x 127 x 18 mm
    1500 x 157 x 20 mm
    1800 x 157 x 20 mm
    Coarse grinding wheel size
    Ø 150 x 90 x 22 mm
    Ø 150 x 90 x 22 mm
    Ø 150 x 90 x 22 mm
    Fine grinding wheel size
    Ø 150 x 90 x 22 mm
    Ø 150 x 90 x 22 mm
    Ø 150 x 90 x 22 mm
    Grinding wheel speed
    3400 rpm
    3400 rpm
    3400 rpm
    Coarse wheel motor
    5 HP
    5 HP
    5 HP
    Fine wheel motor
    5 HP
    5 HP
    5 HP
    Table travel motor
    ¼ HP
    1 HP
    1 HP
    Coolant pump motor
    ⅛ HP
    ⅛ HP
    ⅛ HP
    Machine size
    1470 x 840 x 1500 mm
    2550 x 910 x 1460 mm
    2550 x 910 x 1460 mm
    N.W. / G.W.
    340 / 430 kgs
    790 / 930 kgs
    790 / 930 kgs
