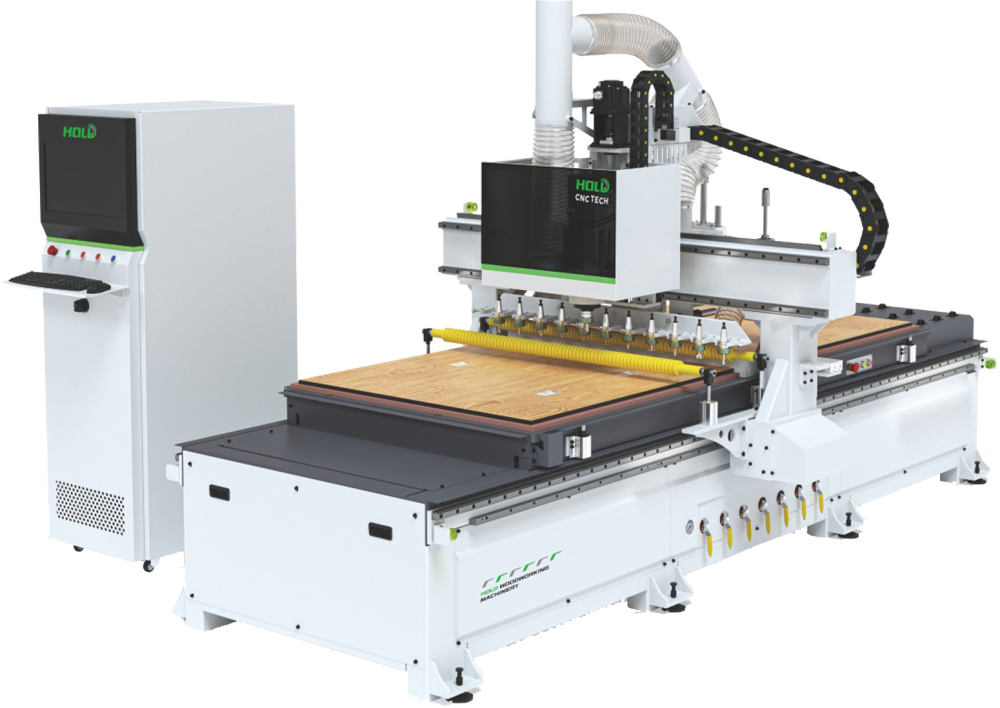

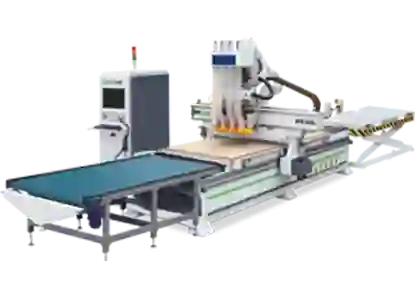

HE-409GA
CNC Router
Technical Info
- Windows based operating software
- Servo drive system
- Processing size : 1220 x 2750 mm
- Heavy duty servo motor, stable output
- High performance inverter, anti-strong interference, energy saving and environmental protecition
Standard Configuration

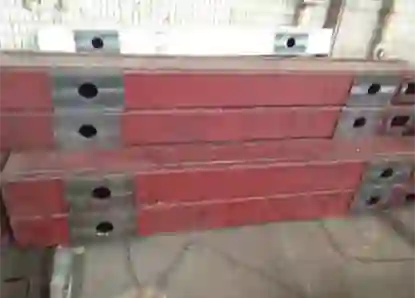

Heavy Duty Machine Frame

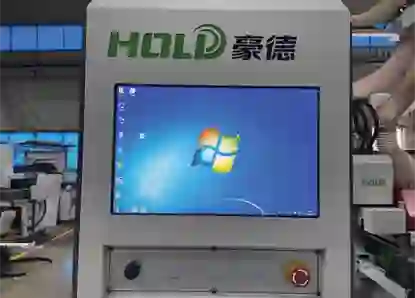

Computer Operation

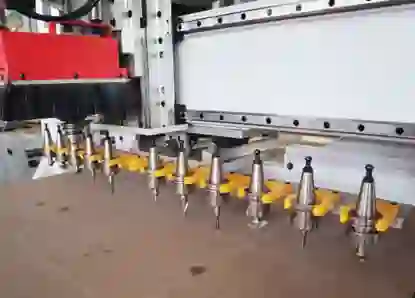

12 Straight Tool Magazine

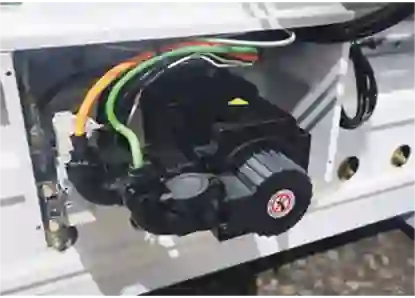

1.5 kW Servo Motor

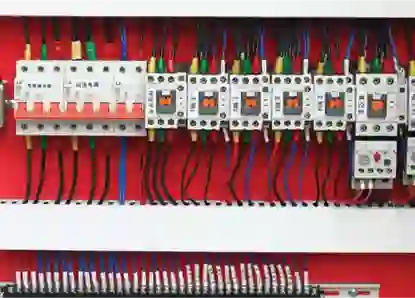

Excellent Electrical Components
Stable Control System

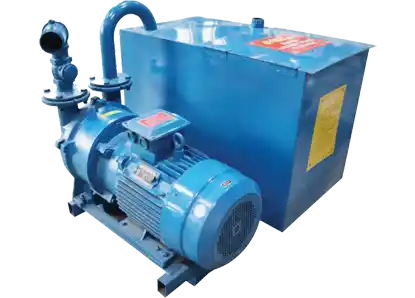

7.5 kW Air Cooling Vacuum Pump

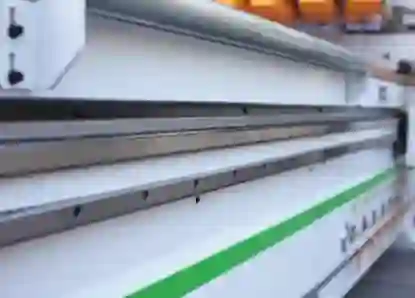

High Precision 30 Guide Rail

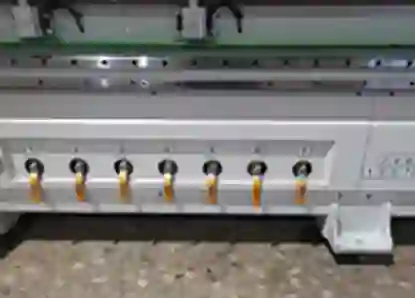

7-zone Vacuum Adsorption Platform

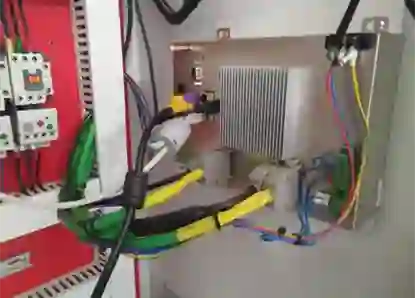

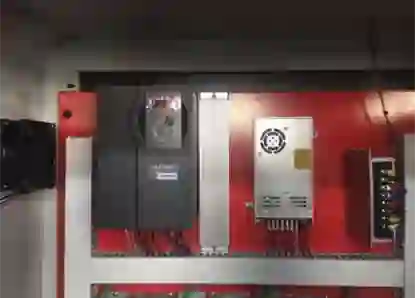

High Performance Inverter

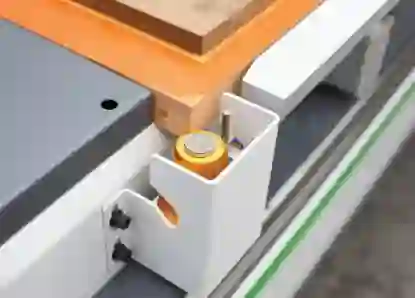

Thousands of Classification and High Precision Tool Alignment Instrument

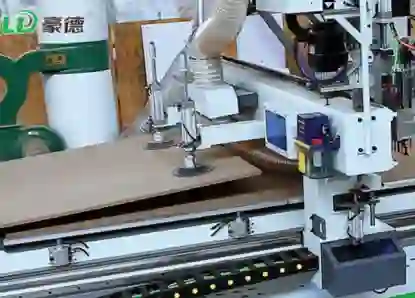

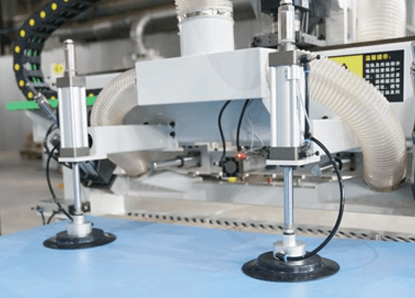

Strong Suction Cup Grab Plate Device

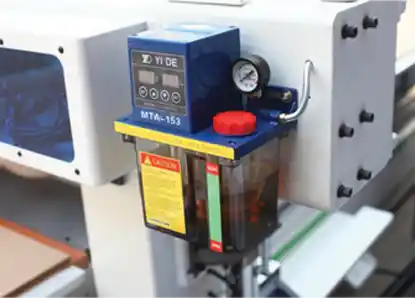

Precision Automatic Lubrication System
Optional Configuration

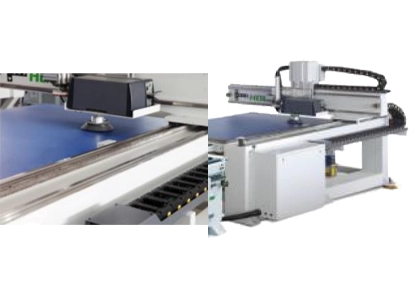

Auto Labeling Device
Loading – Unloading System
Specification of CNC Router
| Model | HE409GA |
|---|---|
| Working size | 1220 x 2750 x 30 mm |
| Working stroke | 1850 x 3500 x 260 mm |
| Idling speed | 80 m/min |
| Working speed | 12 - 25 m/min |
| Spindle power | 9.0 kW |
| Spindle speed | 0 - 18000 r/min |
| Suction port size | Up : φ 150mm Down : φ 100mm |
| Total power | 26 kW |
| Driving system | servo drive |
| Control system | Taiwan LNC control system |
| Total weight | About 2200 kg |
| Overall dimension | 4250 x 2750 x 3150 mm |
