HD691JBYZ
Aluminum Honeycomb Panel Edge Machine
Piece counting
Production reports
Intelligent touch screen control
Diamond pre-milling cutter

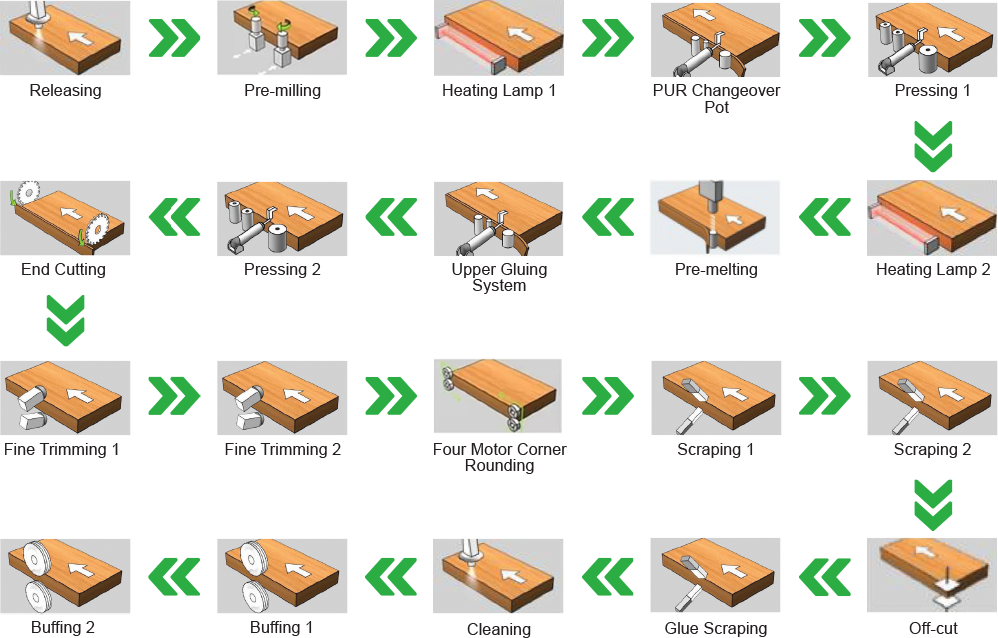

Standard Process
Standard Process of HD857J
- Releasing
- Pre-milling
- Heating lamp 1
- PUR changeover pot
- Pressing 1
- Heating lamp 2
- Pre-melting
- Upper gluing system
- Pressing 2
- End cutting
- Fine trimming 1
- Fine trimming 2
- Four motor corner rounding
- Scraping 1
- Scraping 2
- Off cut
- Glue scraping
- Cleaning
- Buffing 1
- Buffing 2
Configurtion Instructions (Optional)
Pre-melting + Upper Gluing System (PKQ)
PUR Changeover Pot (B)
Laser Edge Banding Upgrade Solution
Multi Slot Servo Edge Feeder (A)
I Shape PUR Melter (Y)
Cross PUR Melter (Y)
Waxing
Sanding (M)
Visual Inspection System
Specification of HD857J Aluminum Honeycomb Panel Edge Band Machine
| Model | HD857J |
|---|---|
| Lifting | CNC lifting |
| Total power | 32 kW |
| Overall size | 9800 x 1000 x 1800 mm |
| Feed speed | Ordinary plate: 14 - 20 - 23 m/min |
| Tape thickness | 0.4 - 3 mm |
| Panel thickness | 10 - 60 mm |
| Panel length | ≥ 120 mm |
| Panel width | Wood: ≥ 40 mm Aluminium plate: ≥ 100 mm |
| Working air pressure | 0.6 mpa |
| Min. panel size | Wood: 120 x 80 mm Aluminum plate: 120 x 100 mm |
