*Machine picture shown is reference only
HD856J
Cabinet Door Edge Banding Machine
Maintenance reminder
Piece counting
Tool change reminder
One click parameter download
CNC lifting press beam
Double row gantry support roller
V-blet feeding
Intelligent control system
Standard Process

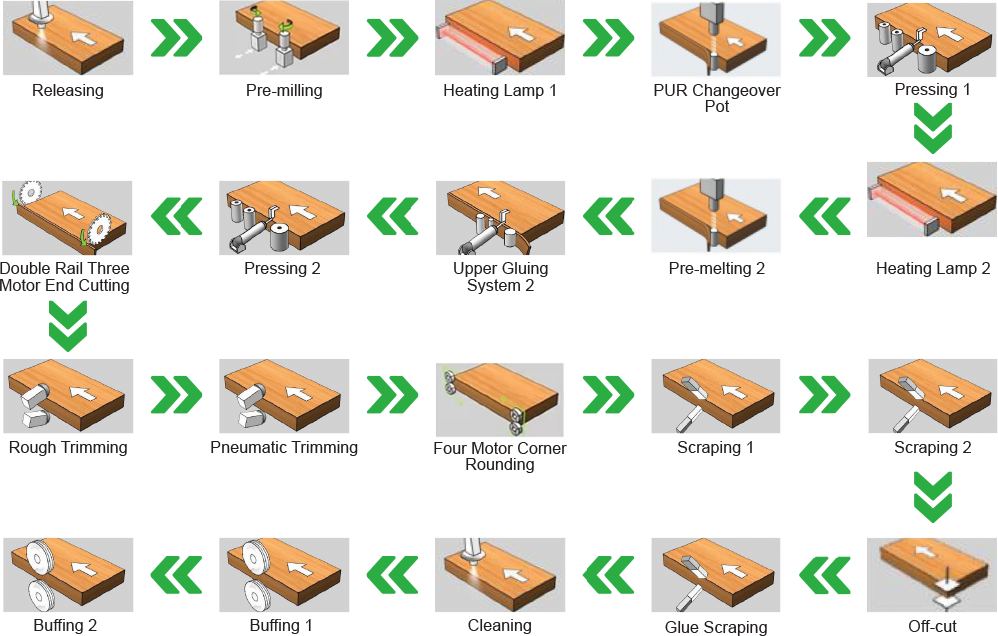

Standard Process of HD856J
- Releasing
- Pre-milling
- Heating lamp 1
- PUR changeover pot
- Pressing 1
- Heating lamp 2
- Pre-melting 2
- Upper gluing system 2
- Pressing 2
- Double rail three motor end cutting
- Rough trimming
- Pneumatic trimming
- Four motor corner rounding
- Scraping 1
- Scraping 2
- Off cut
- Glue scraping
- Cleaning
- Buffing 1
- Buffing 2
Configurtion Instructions (Optional)
Pre-melting + Upper Gluing System (PKQ)
PUR Changeover Pot (B)
Laser Edge Banding Upgrade Solution
Multi Slot Servo Edge Feeder (A)
I Shape PUR Melter (Y)
Cross PUR Melter (Y)
Waxing
Sanding (M)
Visual Inspection System
Specification of HD856J
| Model | HD856J |
|---|---|
| Lifting | CNC lifting |
| Total power | 33 kW |
| Overall size | 10500 x 1000 x 1800 mm |
| Feed speed | 20 - 23 - 26 m/min |
| Tape thickness | 0.4 - 3 mm |
| Panel thickness | 10 - 60 mm |
| Panel length | ≥ 120 mm |
| Panel width | ≥ 50 mm |
| Working air pressure | 0.6 mpa |
| Min. panel size | 50 x 120 mm (corner rounding off) 50 x 300 (corner rounding on) |
Discover More Cabinet Door Edge Banding Machine Series
*Machine picture shown is reference only

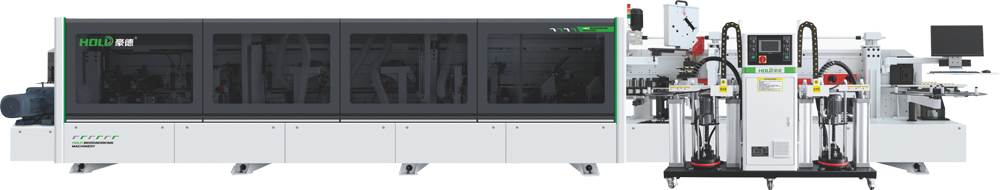

HQ533J
