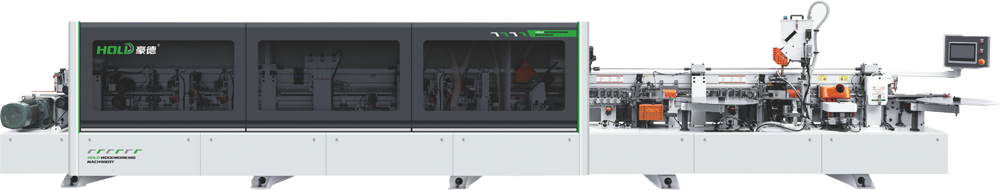

*Machine picture shown is reference only
HD855J
Narrow Edge Bander Machine
Piece counting
Production reports
Rubber coated support rollers
Intelligent touch screen control
Standard Process

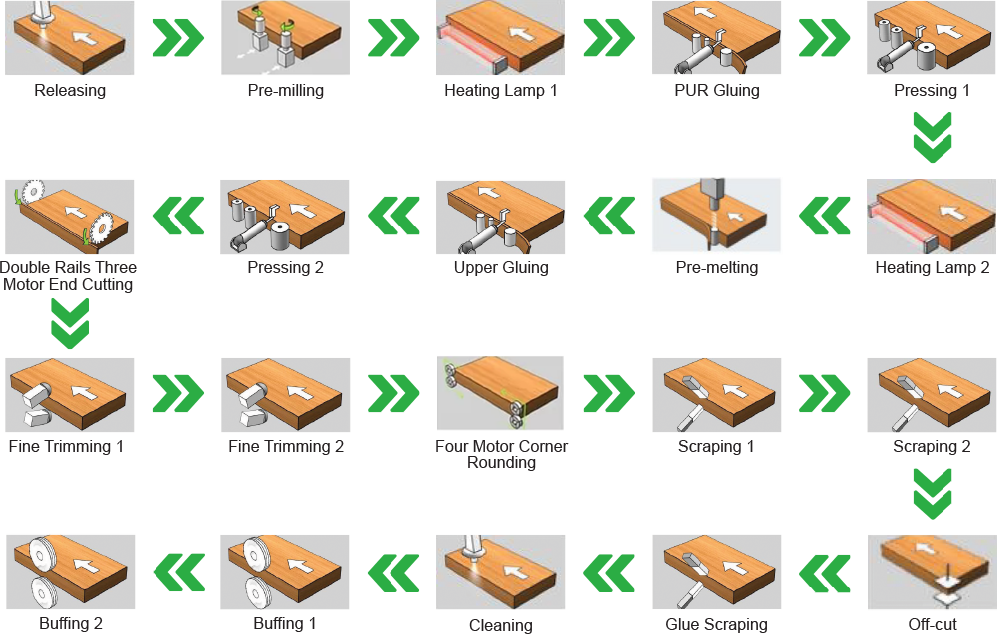

Standard Process of HD855J
- Releasing
- Pre-milling
- Heating lamp 1
- PUR gluing
- Pressing 1
- Heating lamp 2
- Pre-melting
- Upper gluing 2
- Pressing 2
- Double rail three motor end cutting
- Fine trimming 1
- Fine trimming 2
- Scraping 1
- Scraping 2
- Off cut
- Glue scraping
- Cleaning
- Buffing 1
- Buffing 2
Configurtion Instructions (Optional)
Pre-melting + Upper Gluing System (PKQ)
PUR Changeover Pot (B)
Laser Edge Banding Upgrade Solution
Multi Slot Servo Edge Feeder (A)
I Shape PUR Melter (Y)
Cross PUR Melter (Y)
Waxing
Sanding (M)
Visual Inspection System
Specification of HD855J Narrow Edge Bander Series
| Model | HD855J |
|---|---|
| Lifting | CNC lifting |
| Total power | 33 kW |
| Overall size | 10300 x 1000 x 1800 mm |
| Feed speed | 14 - 20 - 23 m/min |
| Tape thickness | 0.4 - 3 mm |
| Panel thickness | 10 - 60 mm |
| Panel length | 40 mm pre-milling 30 mm corner rounding |
| Panel width | 40 mm pre-milling 30 mm corner rounding |
| Working air pressure | 0.6 mpa |
| Min. panel size | 40 x 300 mm |
