*Machine picture shown is reference only
HD-783J
Bevel and Straight Edge Bander Machine
Standard Process
- Spray Unit
- Pre-milling
- Tape Grooving
- Bevel Gluing
- Heating Lamp 1
- Straight Gluing
- Heating Lamp 2
- Pressing
- Double Rails End Cutting
- Rough Trimming
- Fine Trimming
- Two-tool Corner Trimming
- Scraping
- Flat Scraping 1
- Flat Scraping 2
- Buffing 1
- Buffing 2
*The first step is spray unit, it is separation function to avoid glue staying on the surface of the panel. It is different from the cleaning function after scrapping. The cleaning function is spray unit also, but it is for diluting residual hot melt adhesive easier to clean.
Technical Info
- Two functions in one machine, bevel and straight switch fast
- 45° bevel forming
- Electric beam lifter to reduce labor strength and improve accuracy and efficiency
- The transmission reducer adopts high-efficiency hard tooth surface reducer, which is powerful
- Equipped with cleaning device
- Electric reciprocating buffing can prolong the cloth wheel service life
Standard Configuration
Control System: Operation Flexible
Electric Press Beam Lifting
Spray Unit
Pre-milling Device: Bevel + Straight
Gluing Device + Bevel Edge Ribbon Slot Device

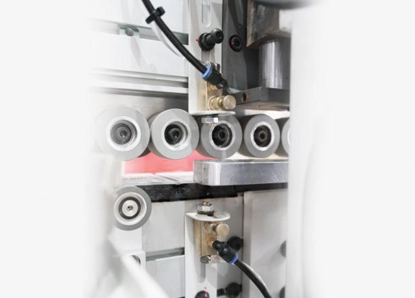

Bevel Side Pressing Unit
Rough Trimming + Double Rails End Cutting
Fine Trimming
Corner Rounding (For Straight Edge)
Scraping Device
Flat Scraping + Cleaning Device
Electric Reciprocating Buffing
5.5 kW Harden Gear Reducer
Unique Design: Rubber-coated Wheel
Specification of HD783J
| Model | HD-783J |
|---|---|
| Electric lifter | √ |
| Total power | 30 kW |
| Dimensions | 9800 x 960 x 1750 mm |
| Feeding speed | Bevel edge : ≤ 14 m/min Straight: 14/20/23 m/min |
| Edge banding thickness | Bevel edge: 0.6 - 1.2 mm Straight edge : 0.4 - 3 mm |
| Panel thickness | Bevel edge : 15 - 25 mm Straight edge : 10 - 60 mm |
| Min. panel size | Bevel edge : 200 x 120 mm Straight edge : 120 x 100 mm |
| Working pressure | 0.6 Mpa |
| Panel length | Bevel edge : ≥ 200 mm Straight edge : ≥ 120 mm |
| Panel width | Bevel edge : ≥ 120 mm Straight edge : ≥ 100 mm |
