*Machine picture shown is reference only
HD730JBY
Wooden Door Edge Bander Machine
Piece counting
Production reports
Rubber coated support rollers
Intelligent touch screen control
Standard Process

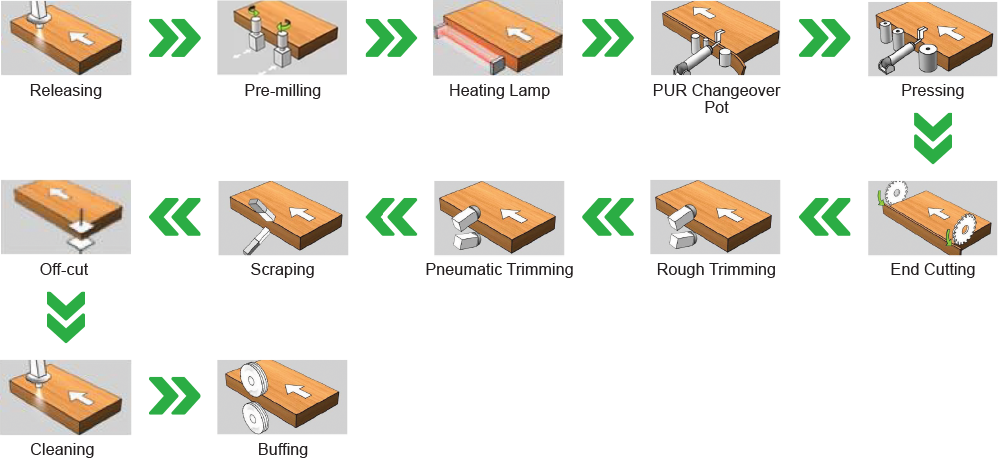

Standard Process of HD730JBY
- Releasing
- Pre-milling
- Heating lamp
- PUR changeover pot
- Pressing
- End cutting
- Rough trimming
- Pneumatic trimming
- Pneumatic trimming
- Off-cut
- Cleaning
- Buffing
Configurtion Instructions (Optional)
Pre-melting + Upper Gluing System (PKQ)
PUR Changeover Pot (B)
Laser Edge Banding Upgrade Solution
Multi Slot Servo Edge Feeder (A)
I Shape PUR Melter (Y)
Cross PUR Melter (Y)
Waxing
Sanding (M)
Visual Inspection System
Specification of HD730JBY Wooden Door Edge Bander Series
| Model | HD730JBY |
|---|---|
| Lifting | Electric lifting |
| Total power | 19 kW |
| Overall size | 6200 x 900 x 1700 mm |
| Feed speed | 14 - 20 - 23 m/min |
| Tape thickness | 0.4 - 3 mm |
| Panel thickness | 10 - 60 mm |
| Panel length | ≥ 120 mm |
| Panel width | ≥ 100 mm |
| Working air pressure | 0.6 mpa |
| Min. panel size | 120 x 100 mm |
