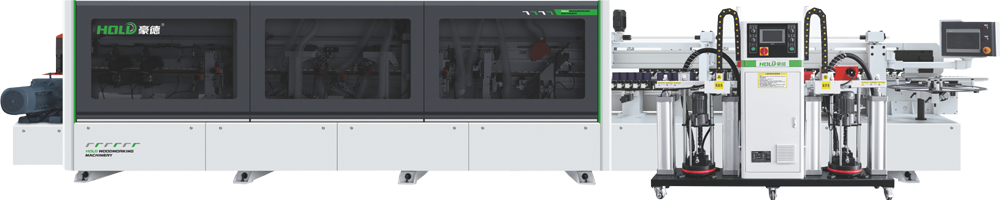

*Machine picture shown is reference only
HD691JBYZ
Aluminum Honeycomb Panel Edge Machine
Piece counting
Production reports
Intelligent touch screen control
Diamond pre-milling cutter
Standard Process

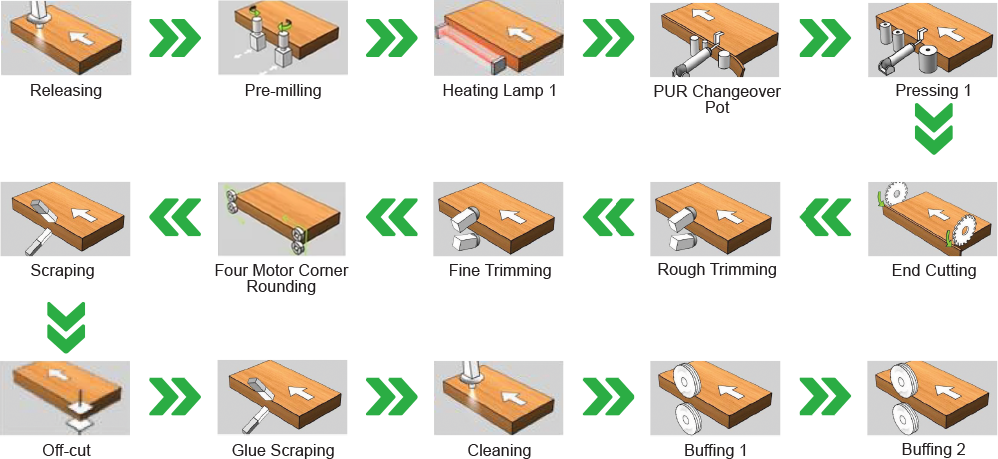

Standard Process of HD691JBYZ
- Releasing
- Pre-milling
- Heating lamp 1
- PUR changeover pot
- Pressing 1
- End cutting
- Rough trimming
- Fine trimming 1
- Four motor corner rounding
- Scraping 1
- Off cut
- Glue scraping
- Cleaning
- Buffing 1
- Buffing 2
Configurtion Instructions (Optional)
Pre-melting + Upper Gluing System (PKQ)
PUR Changeover Pot (B)
Laser Edge Banding Upgrade Solution
Multi Slot Servo Edge Feeder (A)
I Shape PUR Melter (Y)
Cross PUR Melter (Y)
Waxing
Sanding (M)
Visual Inspection System
Specification of HD691JBYZ Aluminum Honeycomb Panel Edge Band Machine
| Model | HD691JBYZ |
|---|---|
| Lifting | Electric lifting |
| Total power | 25 kW |
| Overall size | 9300 x 900 x 1700 mm |
| Feed speed | Aluminum honeycomb panel: 14 m/min |
| Tape thickness | 1.5 - 2 mm |
| Panel thickness | 10 - 60 mm |
| Panel length | ≥ 120 mm |
| Panel width | ≥ 100 mm |
| Working air pressure | 0.6 mpa |
| Min. panel size | 120 x 100 mm |
