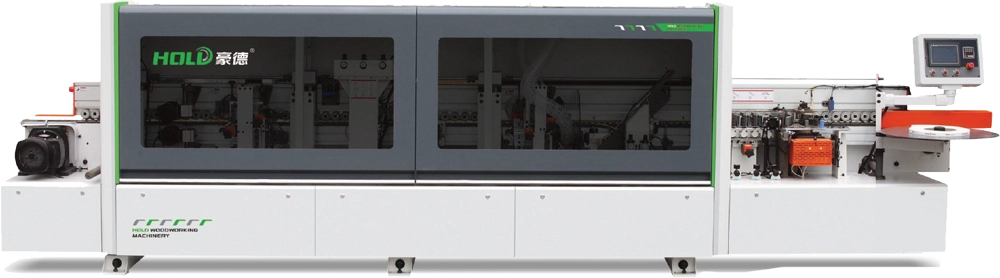

HD-623
Narrow End Edge Bander Machine
Standard Process
- Lower EVA Gluing
- Pressing
- End Cutting
- Rough Trimming
- Fine Trimming
- Scraping
- Buffing
Technical Info
This equipment is suitable for the edge banding of customized furniture companies, especially for processing narrow panels with a width of 35 – 60 mm. It can replace the manual processing mode of narrow panels, solving the problem of narrow panel edge sealing in factories.
- The machine frame is welded with high-strength structural steel panel, with high strength and stability, and the surface is rust-proofed and high-temperature lacquer

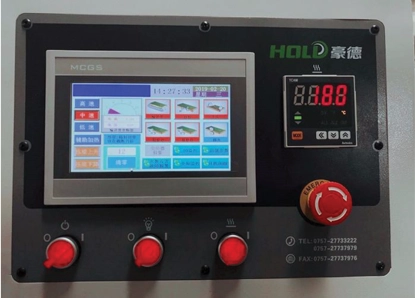

- Electric adjustable lifting press beam, touch screen control, reduce labor intensity, improve efficiency and accuracy

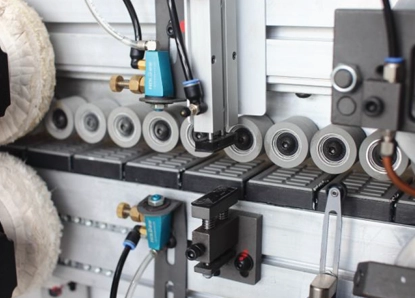

- Four pressing wheels with enlarged diameter and four air cylinders ensure that the edge band is tightly pressed on the work piece

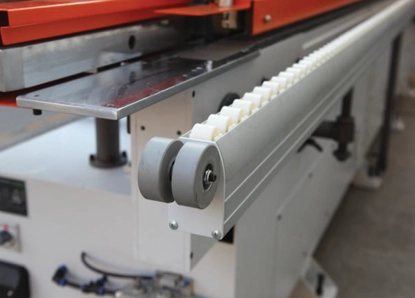

- Conveyor reducer is strong and powerful
- Narrow-sided panel ≥ 45 mm
Standard Configuration
Control System: Operation Flexible

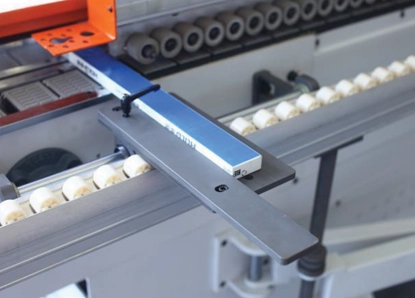

Auxiliary Feeding of Narrow Side End

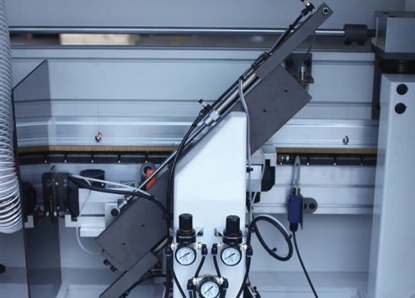

Narrow Side Automatic Side Pressing Device

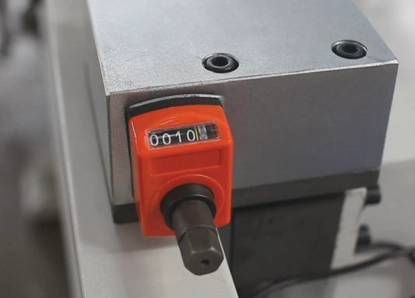

Electric Press Beam Lifting

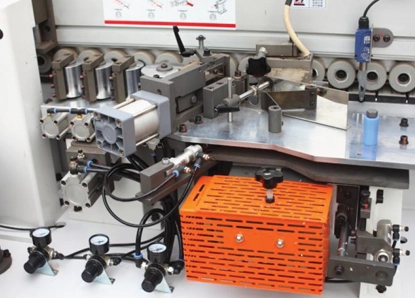

EVA Gluing Device
Pressing
Ending Cutting Device

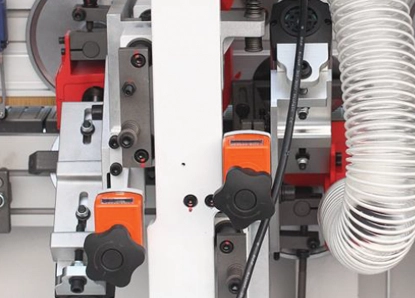

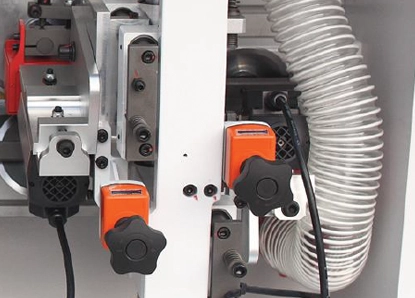

Rough Trimming Device

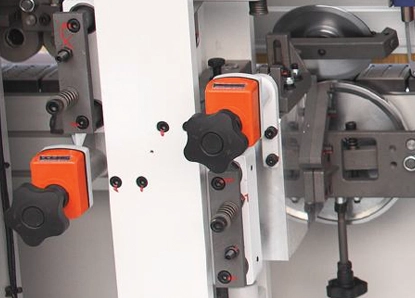

Fine Trimming Device
Scraping Device
Buffing Device

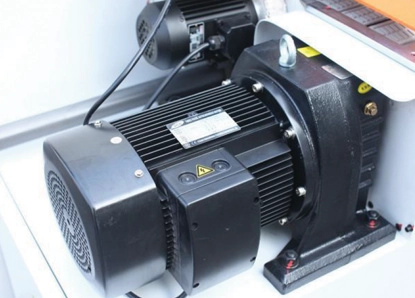

4.0 kW Harden Gear Reducer
Unique Design: Rubber-coated Wheel
Optional Configuration
Liquids for Cleaning at the End
Specification of HD623
| Model | HD623 |
|---|---|
| Electric lifter | √ |
| Total power | 10.3 kW |
| Dimensions | 4500 x 900 x 1700 mm |
| Feeding speed | 14/20/23 m/min |
| Edge banding thickness | 0.4 - 3 mm |
| Panel thickness | 10 - 60 mm |
| Min. panel size | 30 x 300 mm or 120 x 50 mm |
| Panel length | ≥ 120 mm |
| Panel width | ≥ 30 mm |
| Working pressure | 0.6 Mpa |
