*Machine picture shown is reference only
HD316
Unequal Double Door Edge Bander Machine
Quick switching between T-shape L-shaped
Servo profiling pre-milling
Servo profiling pressing
Widened press beam
Heightened edge tape gluing
Pneumatic trimming, scraping
Double row gantry support roller
One-click parameter download
Production reports
Piece counting
Maintenance reminder
Standard Process

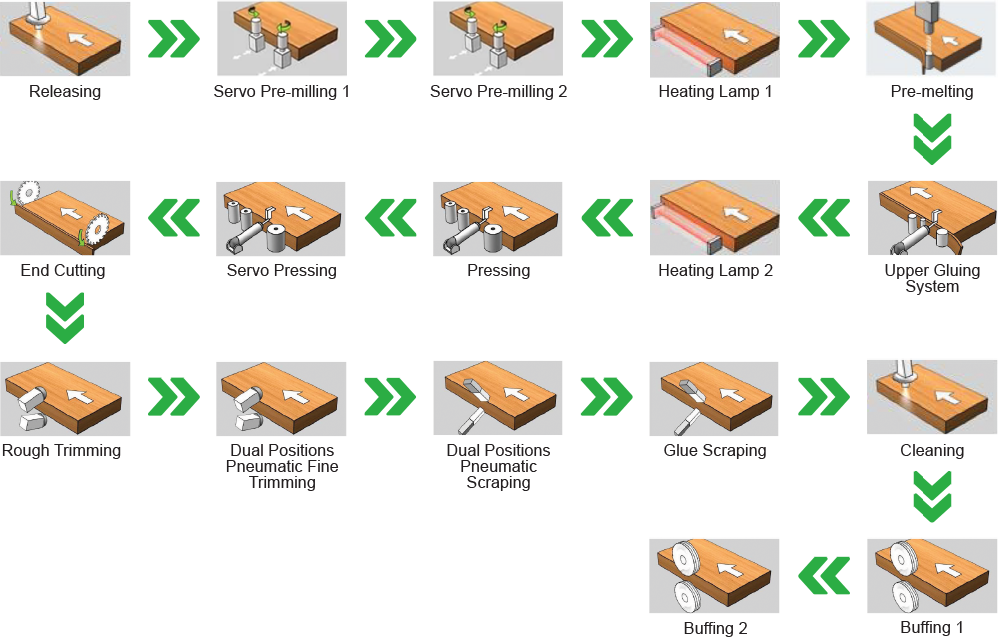

Standard Process of HD316
- Releasing
- Servo pre milling 1
- Servo pre milling 2
- Heating lamp 1
- Pre-melting
- Upper gluing system
- Heating lamp 2
- Pressing
- Servo pressing
- End cutting
- Rough trimming
- Dual positions pneumatic fine trimming
- Dual positions pneumatic scraping
- Glue scraping
- Cleaning
- Buffing 1
- Buffing 2
Configurtion Instructions (Optional)
Pre-melting + Upper Gluing System (PKQ)
PUR Changeover Pot (B)
Laser Edge Banding Upgrade Solution
Multi Slot Servo Edge Feeder (A)
I Shape PUR Melter (Y)
Cross PUR Melter (Y)
Waxing
Sanding (M)
Visual Inspection System
