*Machine picture shown is reference only
HB8442
Automatic Feeding Multi Row Drill Machine

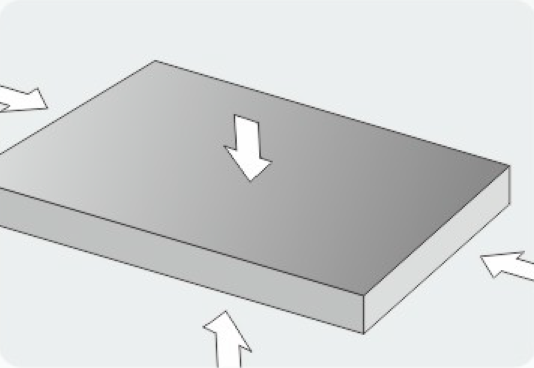

Four sided efficient drilling
Specification HB8442 Automatic Feeding Multi Row Drill
| Model | HB8442 |
|---|---|
| Max. width of workpiece | 2450 mm |
| Max. distance of two horizontal drilling head | 640 mm |
| Min. distance of vertical drilling row | 128 mm |
| Max. thickness of workpiece | 50 mm |
| Max. depth of horizontal drilling head | 40 mm |
| Max. depth of vertical drilling head | 70 mm |
| Rotating speed of drilling spindles | 2800 rpm (50 Hz) |
| Vertical box power | - |
| Vertical drilling power | 1.1 kW x 2 |
| Horizontal drilling power | 1.5 kW |
| Feeding motor power | 0.5 kW x 2 |
| Feeding speed | 70 m/min |
| Working pressure | 0.6 - 0.8 Mpa |
| Dimension of machine | 4250 x 3100 x 2000 mm |
| Packing size | 4300 x 2000 x 2050 mm |
Discover More Automatic Feeding Multi Row Drill Machine
*Machine picture shown is reference only

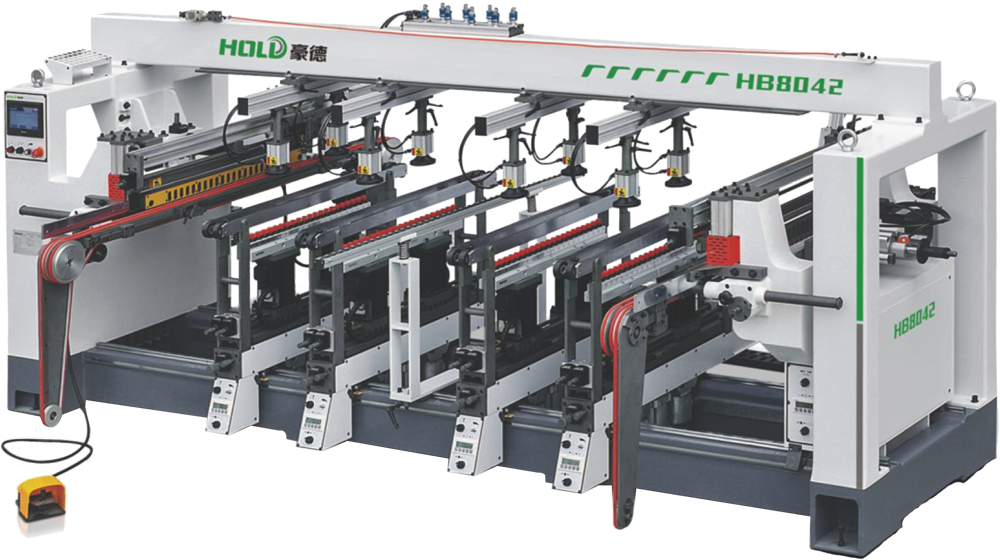

HB8042
Automatic Feeding Multi Row Drill Machine
The HB8042 is designed to boost drilling speed and accuracy for wood panels. With automatic feeding, it is ideal for efficient and consistent large-scale furniture manufacturing.
