*Machine picture shown is reference only
HB8042
Automatic Feeding Multi Row Drill Machine

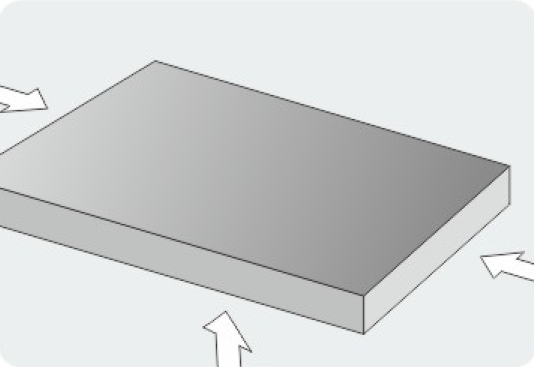

Three sided efficient drilling
Specification HB8042 Automatic Feeding Multi Row Drill
| Model | HB8042 |
|---|---|
| Max. width of workpiece | 2450 mm |
| Max. distance of two horizontal drilling head | 640 mm |
| Min. distance of vertical drilling row | 128 mm |
| Max. thickness of workpiece | 50 mm |
| Max. depth of horizontal drilling head | 40 mm |
| Max. depth of vertical drilling head | 70 mm |
| Rotating speed of drilling spindles | 2800 rpm (50 Hz) |
| Vertical box power | - |
| Vertical drilling power | 1.1 kW x 2 |
| Horizontal drilling power | 1.5 kW |
| Feeding motor power | 0.5 kW x 2 |
| Feeding speed | 70 m/min |
| Working pressure | 0.6 - 0.8 Mpa |
| Dimension of machine | 3850 x 2200 x 1760 mm |
| Packing size | 3900 x 2250 x 1800 mm |
Discover More Automatic Feeding Multi Row Drill Machine
*Machine picture shown is reference only
HB8442
Automatic Feeding Multi Row Drill Machine
The HB8442 is engineered for precise and efficient panel drilling. Equipped with an automatic feeding system, it’s ideal for furniture production lines demanding high speed, accuracy, and consistent output.
