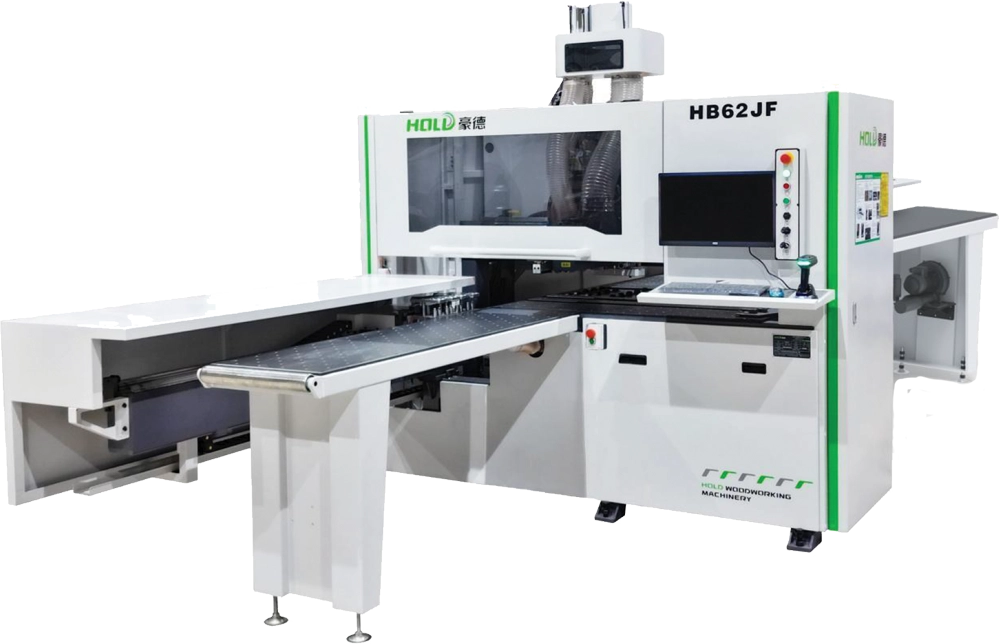

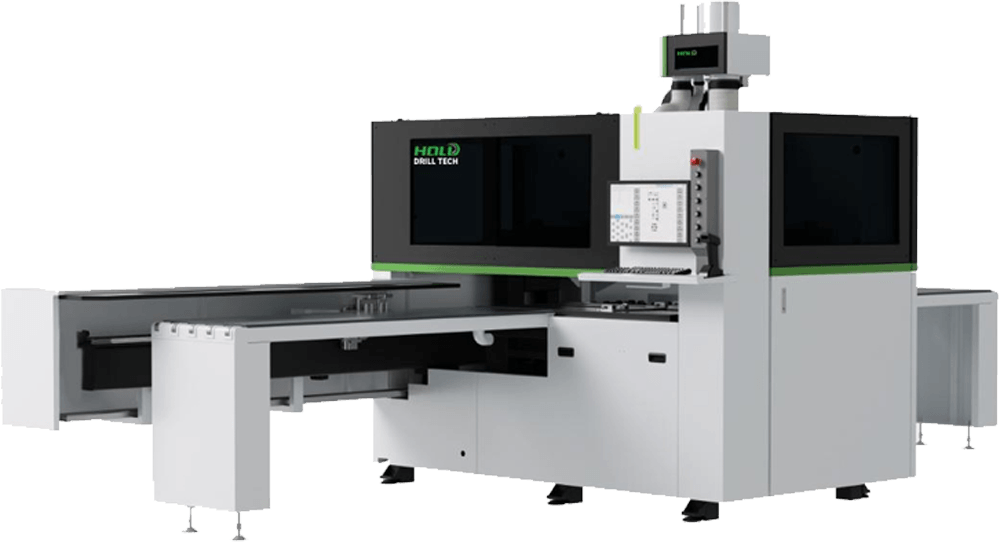

HB-62JF
CNC 6 Side Drilling Center Machine
Processing Technology

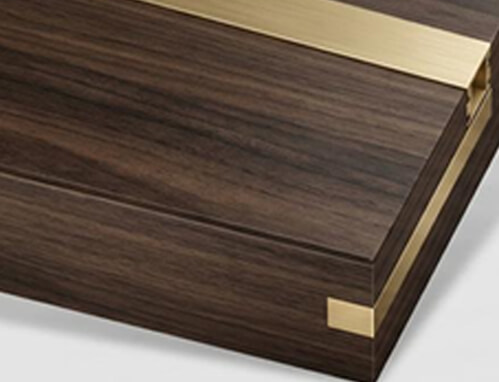

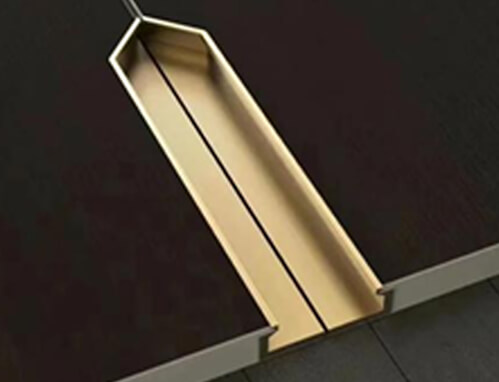

Lighting Channel, Light Strip Slot Processing
Straightener Processing

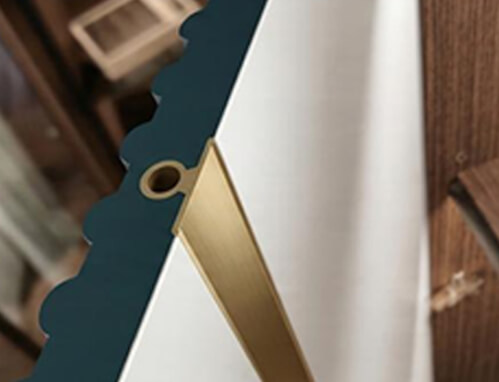

Invisible Handle Slot Processing
Configuration Details
- Hold patented: one of the upper spindles is equipped with both a horizontal saw blade and a vertical milling cutter, which can complete the processing of lamp line grooves and lamp strip grooves.
- Mini. panel size: 70 x 30 mm
- Unique feeding clamp design: the middle clamp features an opening, allowing small panels to be drilled close to the clamp position. A single clamp with four positioning columns ensures greater stability when machining narrow panel pieces.
- The booster pump only supplies air to the drill set independently, which is more reliable an ensures the drill depth.
- Intelligent upper positioning device with intelligent angle error centering function, which does not affect the positioning of arc shaped or fan shaped parts.
- Intelligent side support system
- Can be connected to various order splitting software
- Automatic size indentification, connection to order splitting software, display of four sided sealing tape thickness information for convenient board placement.
- Supports simulation function, allowing processing actions to be viewed in advance to avoid misprocessing.
- Multi-axis CNC system and multi channel technology enable the machine to pre-scan multiple workpieces to be processed, queue them and reduce scanning time. At the same time, multi-channel control technology is used for material discharge and processing control, so that the wooden boards can be quickly returned to the receiving post for processing as soon as they are released from the clamp.
Standard Configuration

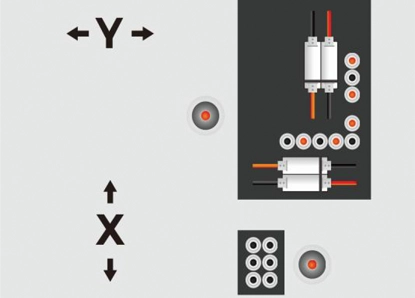

Drill Bank Layout

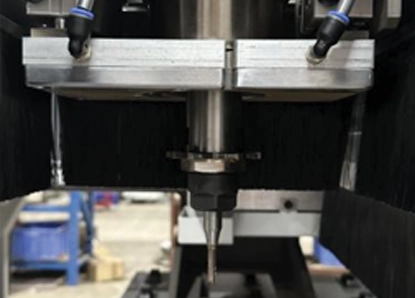

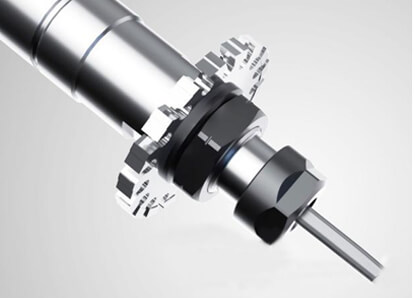

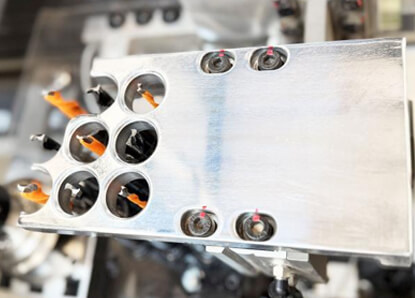

Hold Patented: Upper Spindle with Horizontal Saw Blade and Vertical Milling Cutter
Movable Workbench

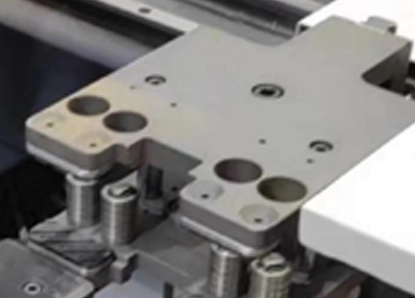

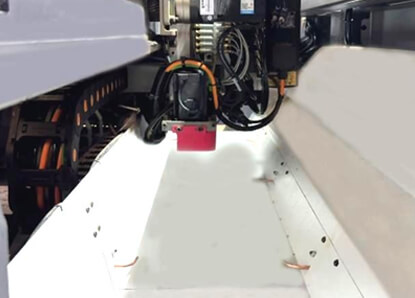

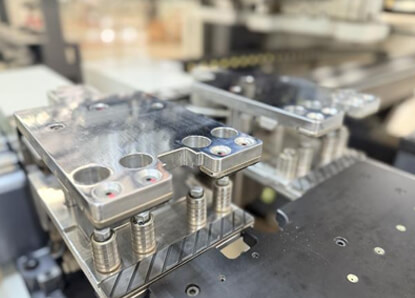

Three Stage Floating Clamp

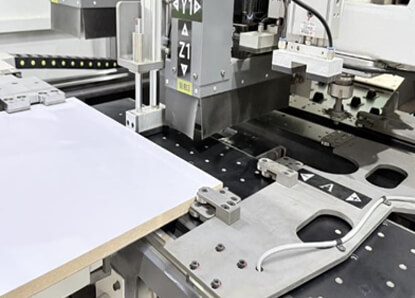

Intelligent Upper Positioning Device + Intelligent Side Support
Independent Floating Support Table
Pressure Regulating Air Tank

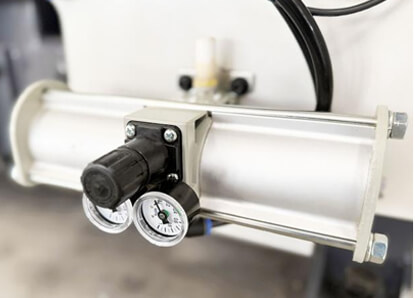

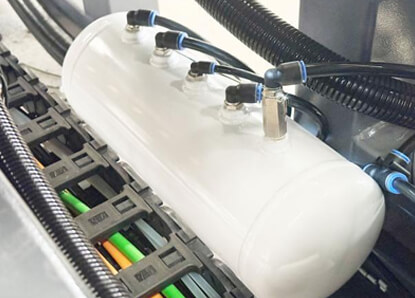

Compressed Air Booster

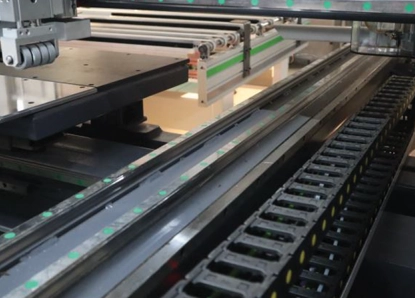

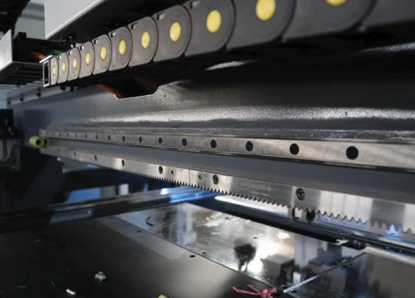

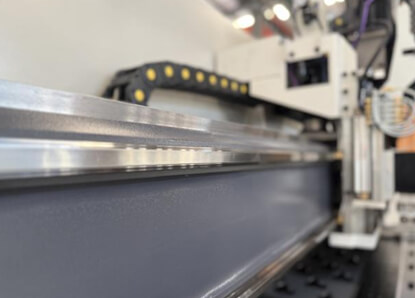

High Precision Steel Belt Dust Proof Guide Rail

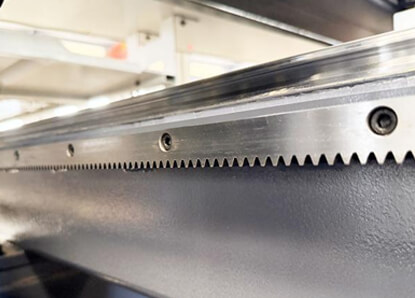

High Precision Rack

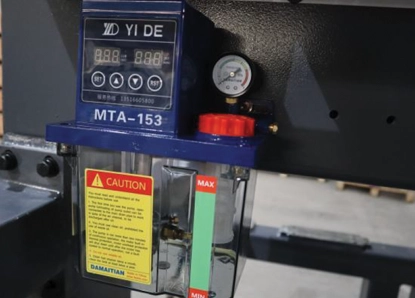

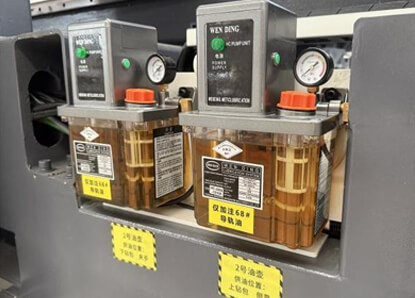

Automatic Oil Injection Lubrication System

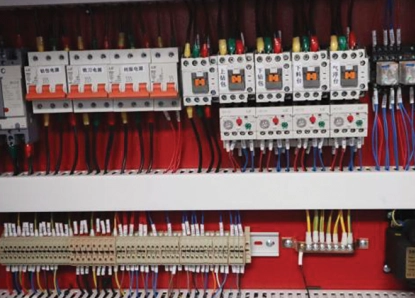

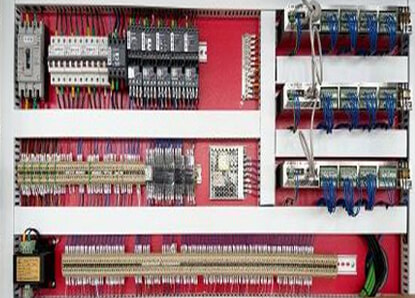

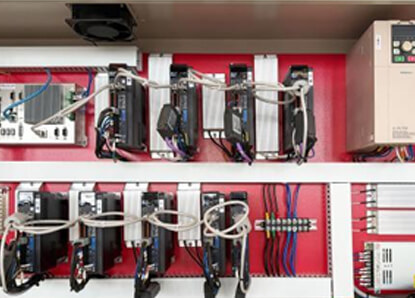

Circuit Control System

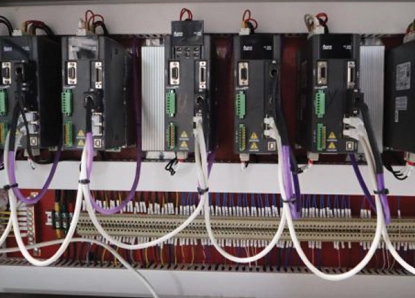

Servo Control System

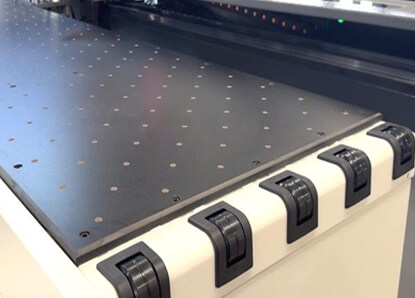

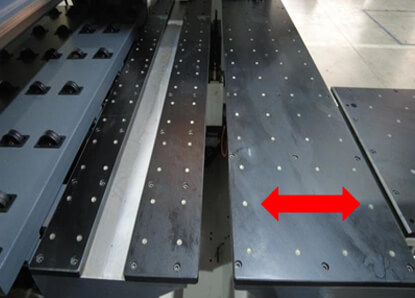

Air Floating Feeding Platform

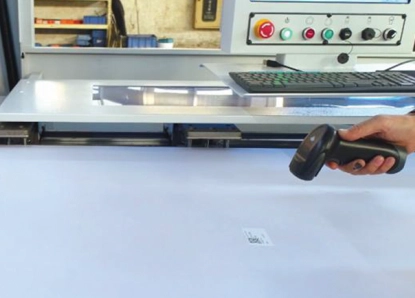

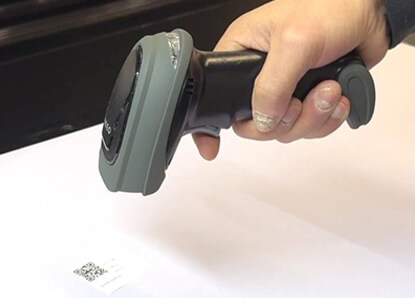

Scan to Process

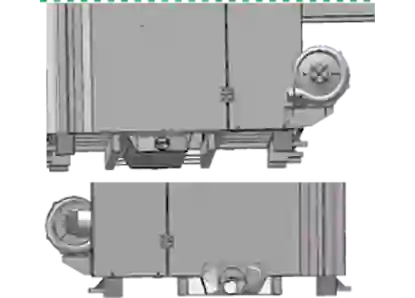

Dust Collection Funnel
Standard Air Float Platform for Material Discharge
Specification of CNC 6 Side Drilling Center Machine
| Model | HB62JF | |
|---|---|---|

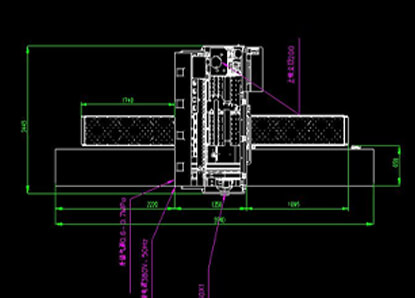

| Other parameters | Equipment dimensions | 5900 x 2600 x 2500 mm |
| Vacuum inlet | Upper dust intake Φ 200 mm Lower dust intake Φ 150 mm |
|
| Slotting spindle | Total power | 17.9 kW |
| Main spindle motor power | Upper main spindle 3.5 kW x 1 Lower main spindle 3.5 kW x 1 |
|
| Main spindle speed | 18000 rpm | |
| Max. moving speed | X axis speed | 130 m/min |
| Y axis speed | 100 m/min | |
| Z axis speed | 30 m/min | |
| A axis speed | 60 m/min | |
| U axis speed | 130 m/min | |
| V axis speed | 100 m/min | |
| W axis speed | 30 m/min | |
| Drilling combination device | Upper vertical drill | 10 pcs |
| Upper horizontal drill | X direction 2+2 Y direction 2+2 |
|
| Lower vertical drill | 6 pcs | |
| Working size range | Minimum panel width | 30 mm |
| Maximum panel width | 1200 mm | |
| Minimum panel length | 70 mm | |
| Maximum panel length | 3300 mm | |
| Minimum panel thickness | 9 mm | |
| Maximum panel thickness | 55 mm |
