CNC 6 Side Drilling Center Machine

Technical Info

• In middle of the upper drilling bank, there is an additional dust port to solve the dust problem on the plate surface
• The same milling cutter position is equipped with a saw blade for horizontal slot. For the furniture process of the lamp with groove, side handle and other processes can be directly processed.
• Minimum test panel is 70 x 30 mm
• The minimum machining distance of the vertical holes of double drill bank is 64 mm. The minimum plate width with left and right horizontal holes of double drill package is 188 mm

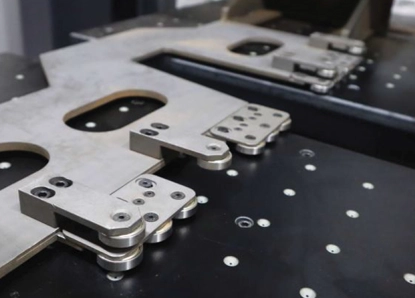

• The feeding gripper adopts a unique design. With hole in the middle, so the small plate in the gripper position can be punched nearby. Single clip hand with four positioning column, so processing small plate is more stable

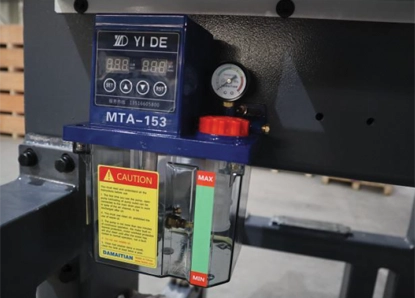

• The booster pump only supplies gas to the drill bank independently. Pump only for the one upper and one down drill banks, so the hole depth is more stable and guaranteed
• Intelligent up positioning device. When there is arc-shaped, fan-shaped plate, positioning will not be affected. Rectangular plate can achieve the intelligent center function of diagonal line deviation.
• After the artifical annealing aging treatment, the long-term use stability is good.
• After the large gantry machining center overall precision machining, it is high precision
• Vertical drilling with four drill head in a square, it can simultaneously drill adjacent large and small hole process

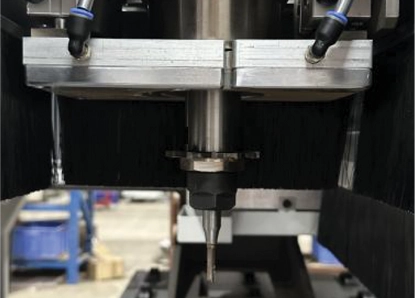

• The upper spindle equips with horizontal saw blade and vertical milling cutter. A motor can process two process. Saw blade can process lamp line groove and other side groove process.
• Super large pressure-stabilized gas storage tank. It makes the working pressure stabler
• Intelligent side aligner system

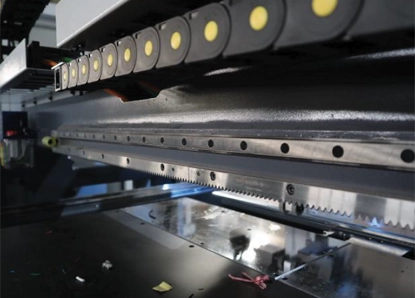

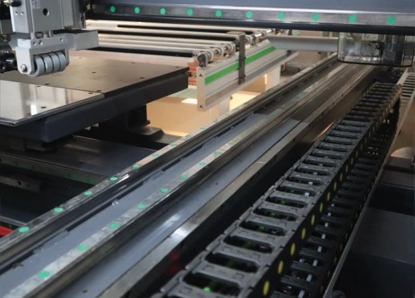

• It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precision grinder. High precision, no special refueling and maintenance are required
• CNC drill package is HOLD brand, and it also adpts high-grade grinding gear transmission with high accuracy.
• Two clamp hands are controlled by servo for accurate positioning. When the gripper moves quickly, the lower gripper plate sink to avoid touching the panel. The gripper can be equipped with blowing function, which can blow off the dust on the gripper and avoid pinching the panel
• Each processing parts is equipped with dust collector
• Drilling simultaneously
• Slotting up and down simultaneously
• Two panels mirrored processing

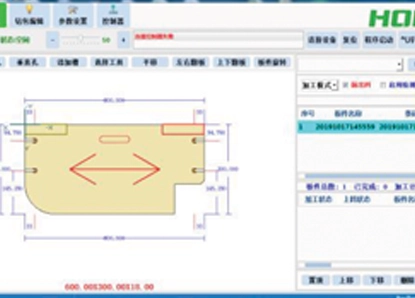

• Supporting DXF file from CAD software
• Panel size can be read automatically. Docking order production software, displaying the information of the thickness of the four-sided edges, are convenient for placing panel
• Supporting simulation function, it can check the processing action in advance to avoid wrong processing
• Big data anlysis, it counts the processing times of each boring head up to the set use times, and prompts to change the boring head.

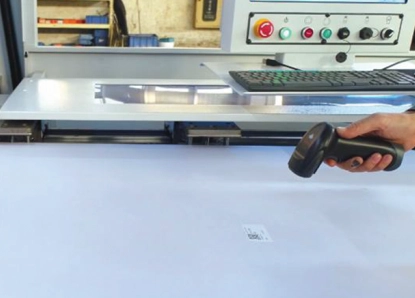

• Processing statistic function: statistics of the QR code information of each panel, processing start time, end time, time spent, and the time interval for placing panels to facilitate employee performance management.
• The processed and waiting-to-processing files are displayed separately, which is convenient to check whether the processing is missing.
• Multi-axis NC system, multi-channel technology. Scanning and processing simultaneously to line up panels waiting for processing, it reduces the time for scanning codes. At the same time, the discharging and processing control adopts multi-channel control technology, so the clamp will return to the receiving, position for catching new panel once processed panel discharged
• The network realizes remote service, remote update, backup, and bus communication technology, which can provide various alarm information more conveniently and in detail, and better connect to the alarm interface of the MES system.

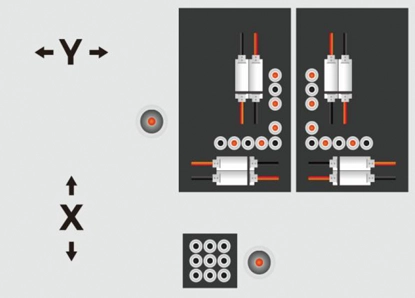

• Drill Bank Layout (*)
  – Upper unit: 2 sets of drill bank, 1 set of milling cutter, 1 set of side groving table
  – Down unit: 1 set of drill bank, 1 set of milling cutter
  – Upper drill bank: (9 vertical head, 8 horizontal head) x 2
  – Down drill bank: 9 vertical head
• Patent Technology (**)
  The main spindle is equipped with both horizontal saw blades and vertical milling cutters. One motors can perform two processes; the saw blade can process side grooves such as lamp wire slots
