HB-621GZKH6

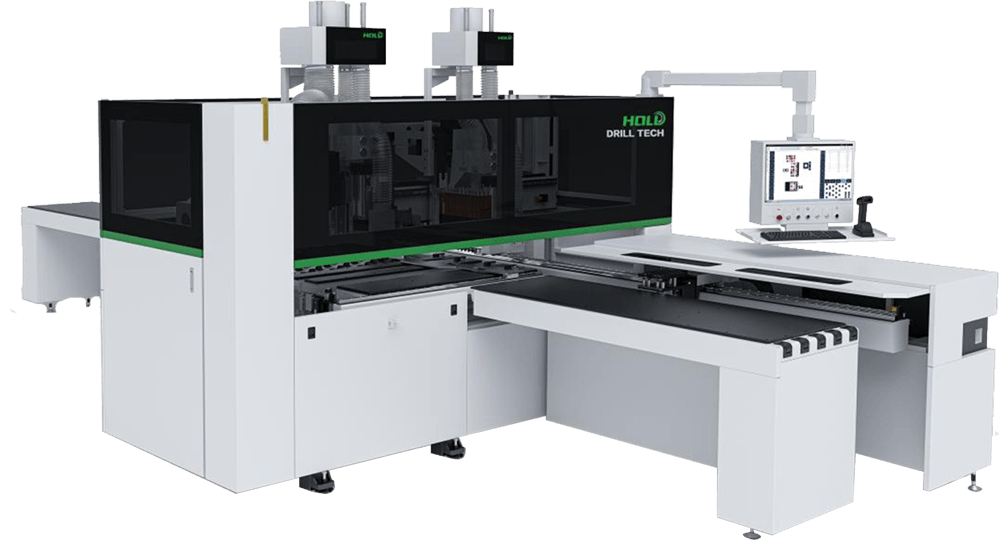

CNC 6 Side Boring Machine
For Process

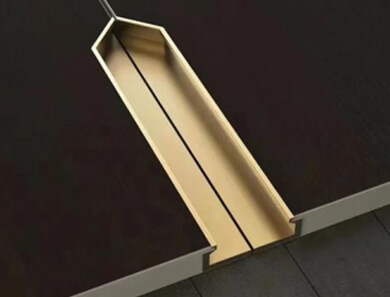

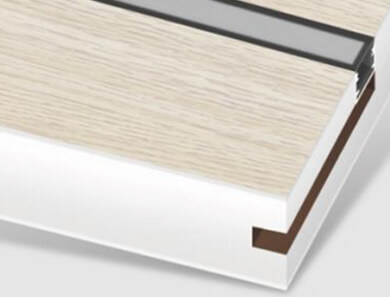

Light wire groove and LED strip groove process
Straightener process
Laminating processing

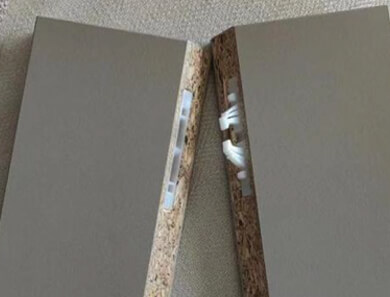

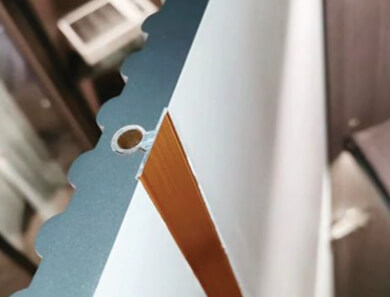

Invisible handle groove process

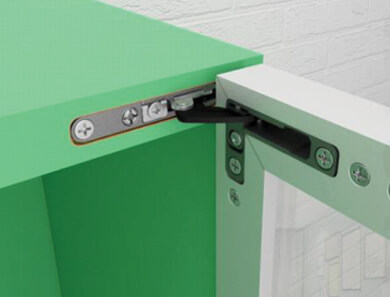

Concealed hinge groove process

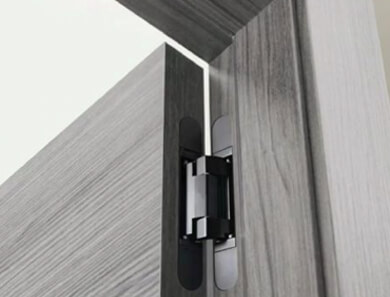

Top-and-bottom hinge groove process
Technical Info
- Rotatable spindle with C axis + 6-tool rotary ATC automatic tools changer, paired with 1 independent cross-side aggregate magazine and 1 adjustable-angle rotary head, to complete milling profiles, light channel grooves, LED strip channels, top-bottom hinge slots, hidden connector slots, 45° lamello, and other processes.
- The drill head is arranged to a compact and reasonable structure. The wooden plug holes and glue plug holes in any position of the plate can use two drills at the same time, which is better than the L-type common structure.
- In middle of the upper drilling head, there is an additional dust port to solve the dust problem on the plate surface.
- The feeding gripper adopts a unique design. With hole in the middle, so the small plate in the gripper position can be punched nearby. Single clip hand with four positioning column, so processing small plate is more stable.
- The booster pump only supplies gas to the drill head independently. Pump only for the one upper and one down drill heads, so the hole depth is more stable and guaranteed.
- Intelligent up positioning device. When there is arc-shaped, fan-shaped plate, positioning will not be affected. Rectangular plate can achieve the intelligent center function of diagonal line deviation.
- Vertical drilling with four drill head in a square, it can simultaneously drill adjacent large and small hole process.

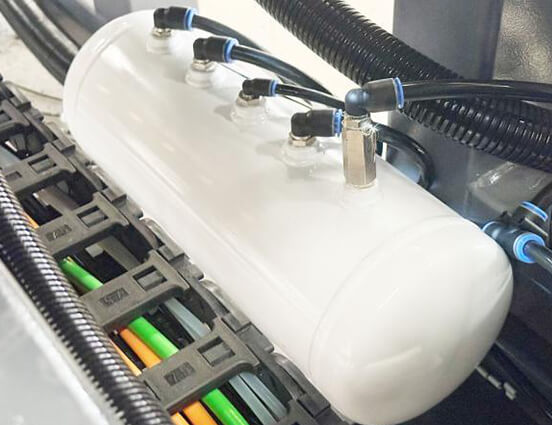

- Super large pressure stabilized gas storage tank. It makes the working pressure stabler.
- Intelligent side aligner system.
- It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precision grinder. High precision, no special refueling and maintenance are required.
- Slotting up and down simultaneously.
- Two panels mirrord processing.
- Supporting DXF file from CAD software.
- Panel size can be read automatically. Docking order production software, displaying the information of the thickness of the four-sided edges, are convenient for placing panels.
- Supporting simulation function, it can check the processing action in advance to avoid wrong processing.
- The processed and waiting-to-processing files are displayed separately, which is convenient to check whether the processing is missing.
Standard Configuration

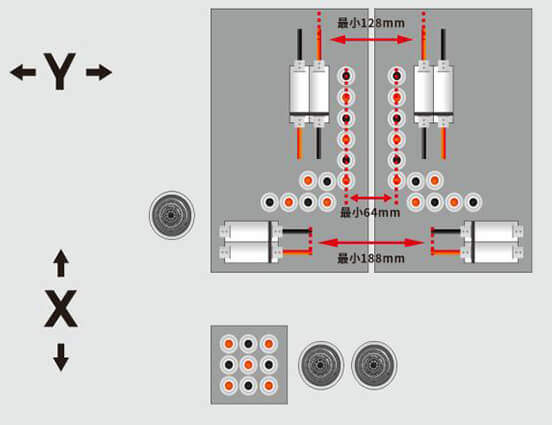

Drill Head Layout
9kW Spindle with C Axis and Available with Rotary Tool Changer

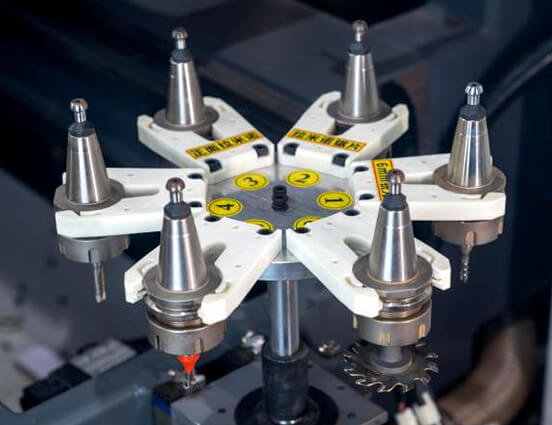

6 Station Servo Rotary ATC

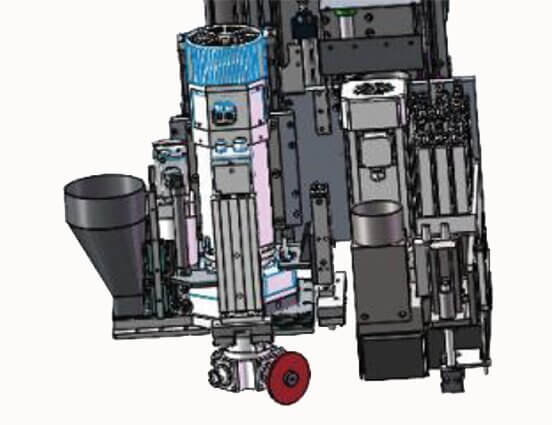

Independent Four Side Aggregate (K)

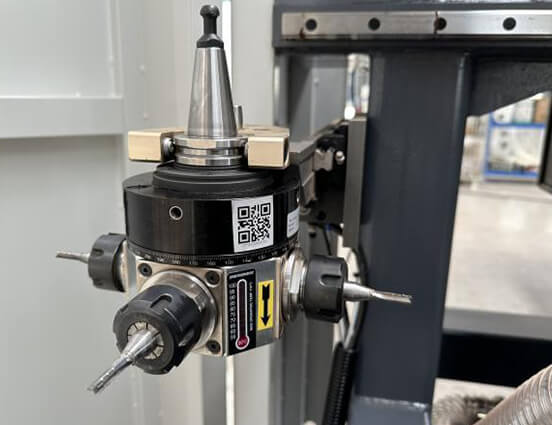

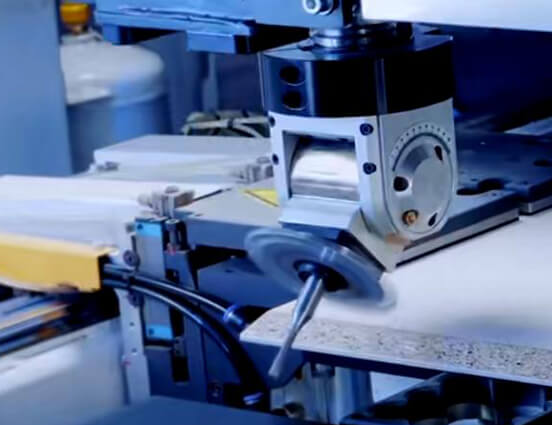

Available Angle Rotary Head

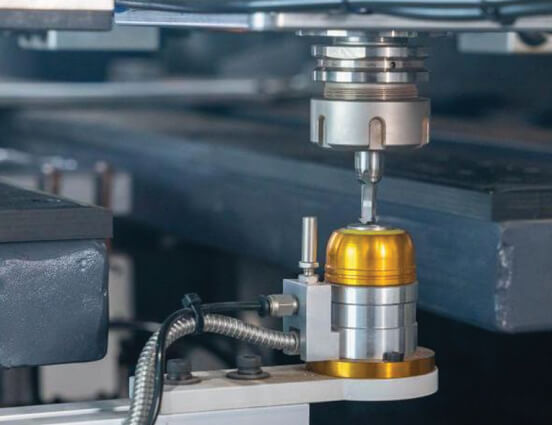

Tools Pre Setter

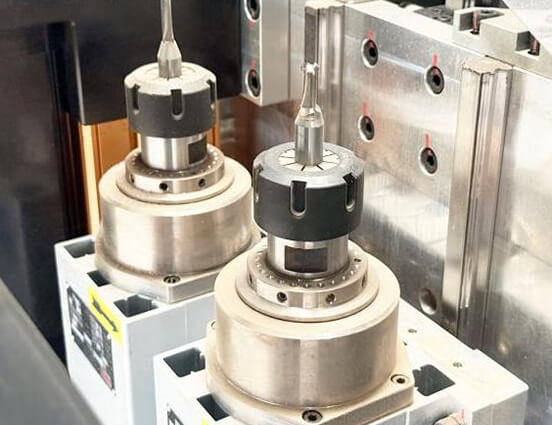

Two Bottom Spindles

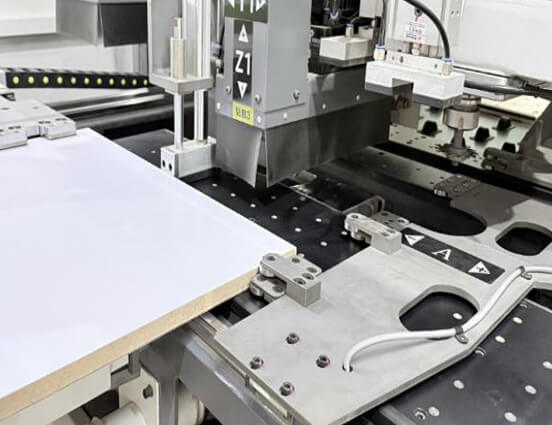

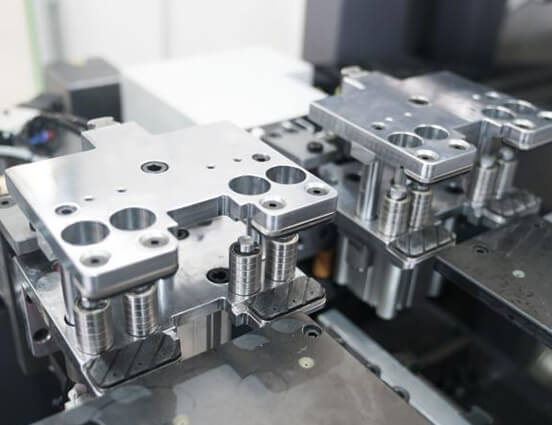

Double Linkage Gripper
Intelligent Upper Positioning Device + Intelligent Side Support
Independent Floating Support
Stabilizing Components

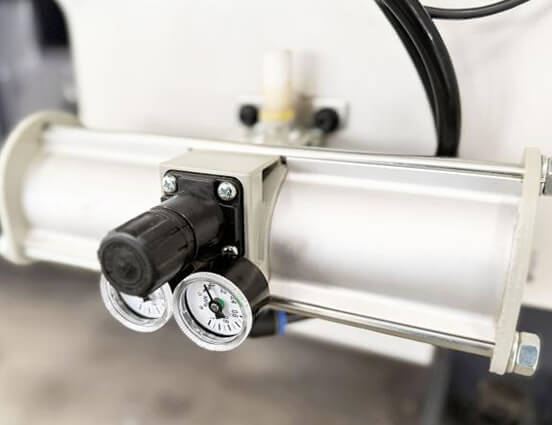

Compressed Air Booster

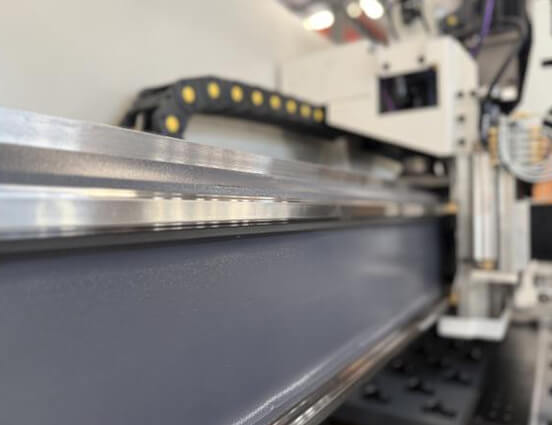

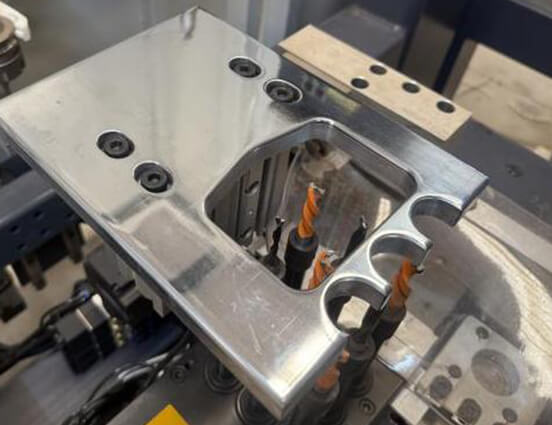

High Precision Steel Belt Dust Proof Guide Rail

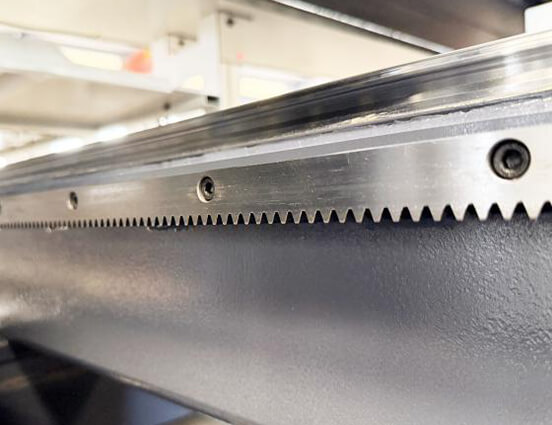

High Precision Rack

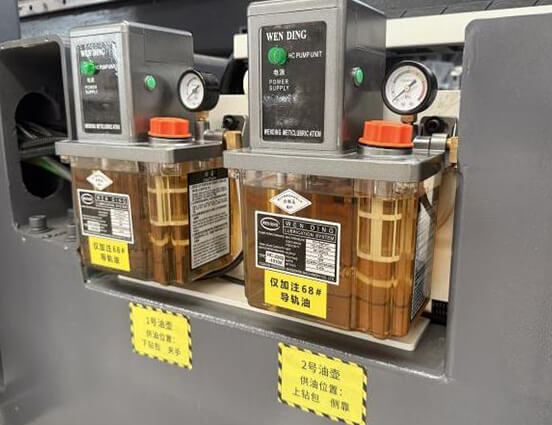

Automatic Lubrication System

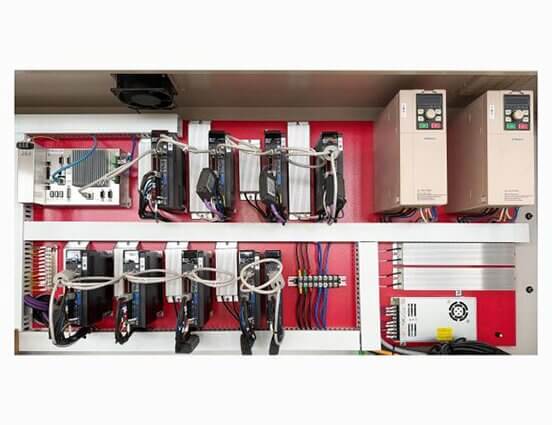

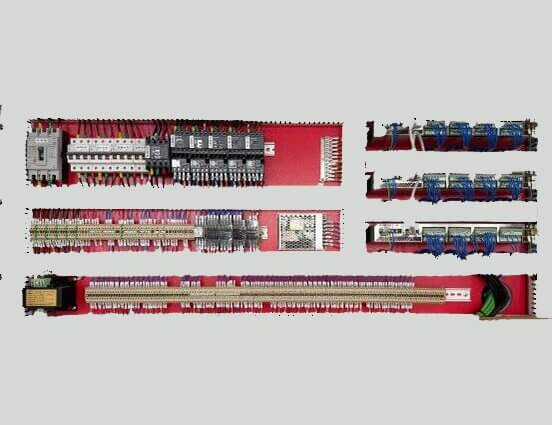

Electric Control System
Servo Control System

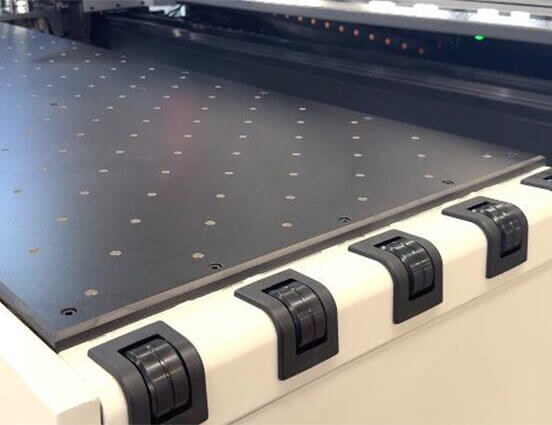

Air Floating Loading Table

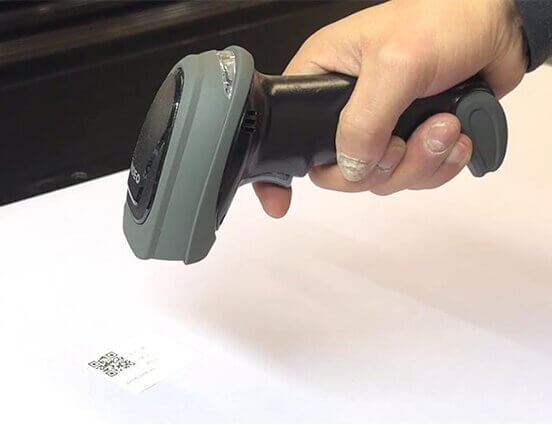

Scan to Process

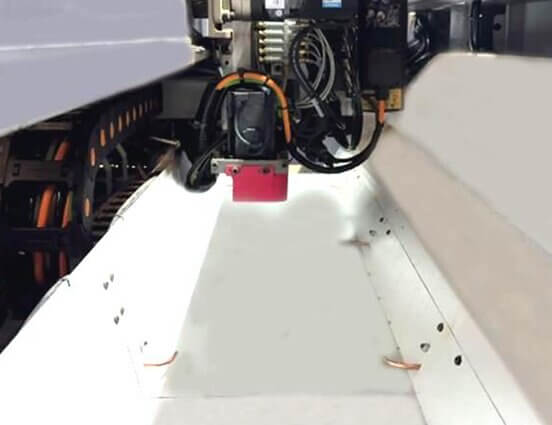

Dust Collection Funnel
Specification of CNC Six Sided Boring Machine
| Model | HB621GZKH6 |
|---|---|
| Other parameter | |
| Size | 5900 x 3150 x 2500 mm |
| Weight | 3000 kg |
| Dust extraction port | Up:φ200 mm x 2 Down:φ150 mm |
| Milling spindle | |
| Total power | 36.15 kW |
| Spindle motor power | Up: with C axis automatic tools changer spindle 9 kW Down: 6 kW x 2 |
| Spindle rotation speed | 18000 rpm |
| Max positioning speed | |
| X axis | 130 m/min |
| Y axis | 100 m/min |
| Z axis | 50 m/min |
| A axis | 60 m/min |
| U axis | 130 m/min |
| V axis | 100 m/min |
| W axis | 50 m/min |
| Boring unit | |
| Up vertical drilling head | 12 x 2 |
| Up horizontal drilling head | X:(2+2)x2 Y:2x2 |
| Down vertical drilling head | 9 |
| Panel size | |
| Min. width | 30 mm |
| Max. width | 1210 mm |
| Min. length | 70 mm |
| Max. length | 3300 mm |
| Min. thickness | 9 mm |
| Max. thickness | 55 mm |
| Dual drill simultaneous machining | |
| Vertical drill min. processing size | 64 mm |
| Horizontal drill X-direction min. processing size | 128 mm |
| Horizontal drill Y-direction min. processing size | 188 mm |
| Side milling range | |
| Max. width | 1100 mm |
| Min. length | Side support direction: 70 mm Linkage gripper direction: 400 mm |
| Max. thickness | 55 mm |
| Max. length | 3300 mm |
