CNC 6 Side Drilling Machine

HB-621CGX

CNC 6 Side Drilling Machine

• The drill bank is arranged to a compact and reasonable structure. The wooden plug holes and glue plug holesinanyposition of the plate can use two drills at the same time, which is better than the L-type common structure.
• In middle of the upper drilling bank, there is an additional dust port to solve the dust problemon the platesurface
• The minimum machining distance of the vertical holes of double drill bank is 64mm. The minimumplatewidthwithleft and right horizontal holes of double drill package is 188mm.
• The same milling cutter position is equipped with a saw blade for horizontal slot. For the furniture processofthelamp with groove, side handle and other processes can be directly processed.
• Minimum test panel is 70mmX30mm.

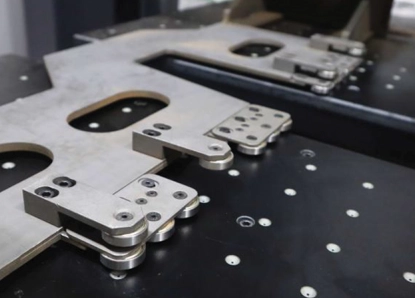

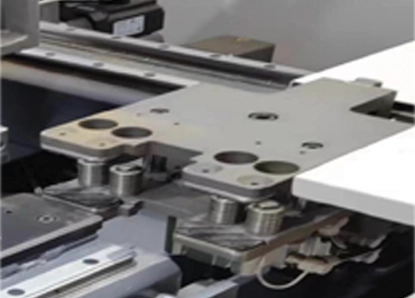

• The feeding gripper adopts a unique design. With hole in the middle , so the small plate in the gripper positioncanbe punched nearby. Single clip hand with four positioning column, so processing small plate is more stable.
• The booster pump only supplies gas to the drill bank independently. Pump only for the two upper andonedowndrill banks, so the hole depth is more stable and guaranteed.
• Intelligent up positioning device. When there is arc-shaped, fan-shaped plate, positioning will not be affected. Rectangular plate can achieve the intelligent center function of diagonal line deviation.
• After the artificial annealing aging treatment, the long-term use stability is good.
• After the large gantry machining center overall precision machining, it is high precision.
• The minimum distance of upper double drill bank working at the same time is 64mm.

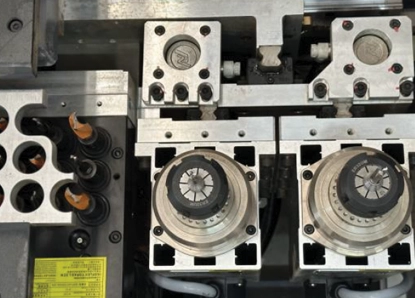

• Vertical drilling with four drill head in a square, it can simultaneously drill adjacent large and small hole process.
• The upper spindle equips with horizontal saw blade and vertical milling cutter. A motor can process twoprocesses.Saw blade can process lamp line groove and other side groove process.
• Super large pressure-stabilized gas storage tank. It makes the working pressure stabler.
• Intelligent side aligner system

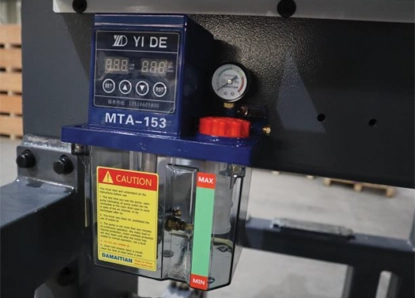

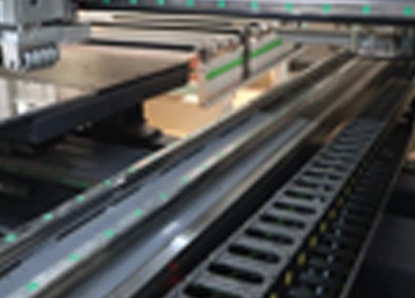

• It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precisiongrinder. Highprecision, no special refueling and maintenance are required
• CNC drill package is HOLD brand, and it also adopts high-grade grinding gear transmission with high accuracy.
• Two clamp hands are controlled by servo for accurate positioning. When the gripper moves quickly, thelowergripper plate sinks to avoid touching the panel. The gripper can be equipped with blowing function, which can blow off the dust on the gripper and avoid pinching the panel.
• Each processing part is equipped with dust collector.
• Drilling simultaneously.
• Slotting up and down simultaneously

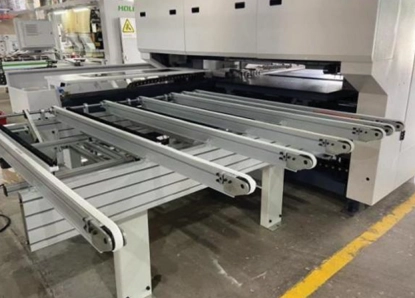

• Two panels mirrored processing

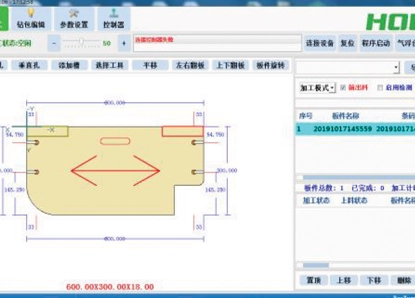

• Supporting DXF file from CAD software
• Panel size can be read automatically. Docking order production software, displaying the information of thethicknessof the four-sided edges, are convenient for placing panel
• Supporting simulation function, it can check the processing action in advance to avoid wrong processing.
• Big data analysis, it counts the processing times of each boring head up to the set use times, and prompts tochangethe boring head.
• Processing statistics function: statistics of the QR code information of each panel, processing start time, endtime,time spent, and the time interval for placing panels to facilitate employee performance management
• The processed and waiting-to-processing files are displayed separately, which is convenient to check whethertheprocessing is missing.

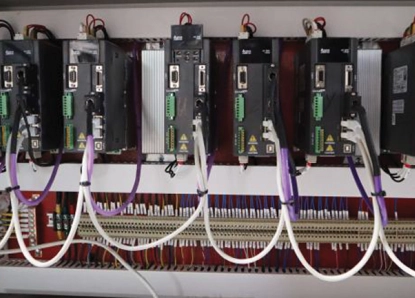

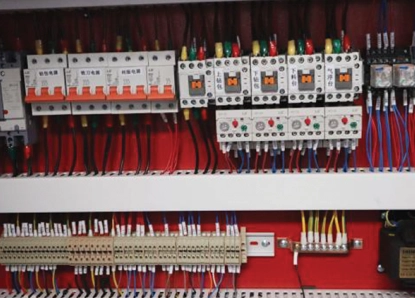

• Multi-axis NC system, multi-channel technology. Scanning and processing simultaneously to line up panelswaitingfor processing, it reduces the time for scanning codes. At the same time, the discharging and processingcontroladopts multi-channel control technology, so the clamp will return to the receiving position for catchingnewpanelonce processed panel discharged
• The network realizes remote service, remote update, backup, and bus communication technology, which can provide various alarm information more conveniently and in detail, and better connect to the alarm interface of the MES system.
• Drill Bank Layout (*)
  – Upper unit: 2 set of drill bank, 1 set of milling cutter, 1 set of side grooving blade
  – Down unit: 1 set of drill bank, 2 set of milling cutter
  – Upper drill bank: (12 vertical head, 6 horizontal head) x 2
  – Down drill bank: 9 vertical head
• Patent Technology (**)
  The main spindle is equipped with both horizontal saw blades and vertical milling cutters. One motor can perform two processes; the saw blade can process side grooves such as lamp wire slots.
