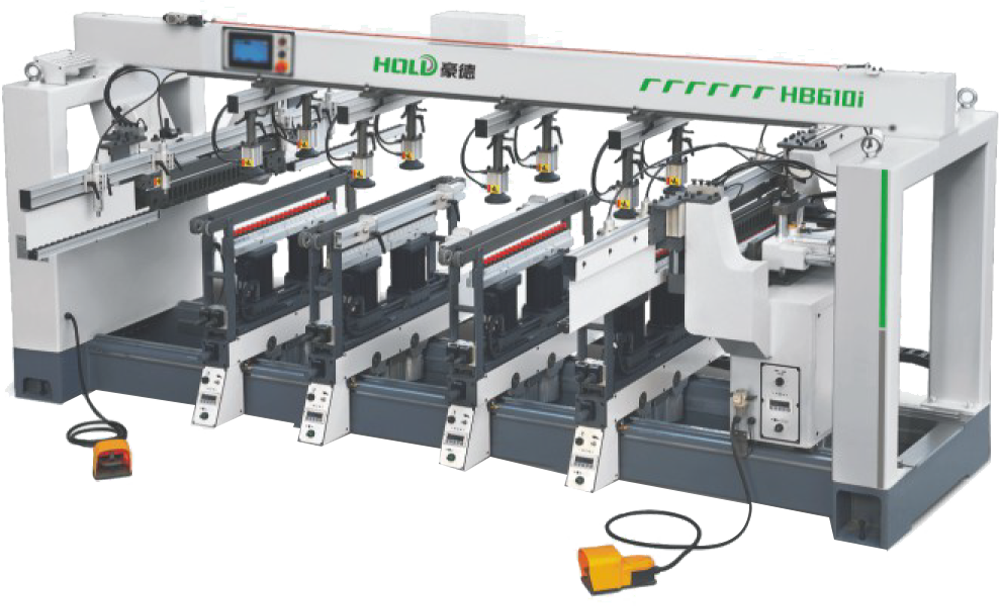

*Machine picture shown is reference only
HB610i
Drilling Six Row Drill Machine
Specification HB610i Six Row Drill Machine
| Model | HB610i |
|---|---|
| Max. width of workpiece | 2450 mm |
| Max. distance of two horizontal drilling head | 640 mm |
| Min. distance of vertical drilling row | 128 mm |
| Max. thickness of workpiece | 78 mm |
| Max. depth of horizontal drilling head | 40 mm |
| Max. depth of vertical drilling head | 70 mm |
| Rotating speed of drilling spindles | 2800 rpm (50 Hz) |
| Vertical box power | - |
| Vertical drilling power | 1.1 kW x 2 |
| Horizontal drilling power | 1.5 kW |
| Feeding motor power | - |
| Feeding speed | - |
| Working pressure | 0.6 - 0.8 Mpa |
| Dimension of machine | 3850 x 2500 x 1800 mm |
| Packing size | 3900 x 1320 x 1850 mm |
