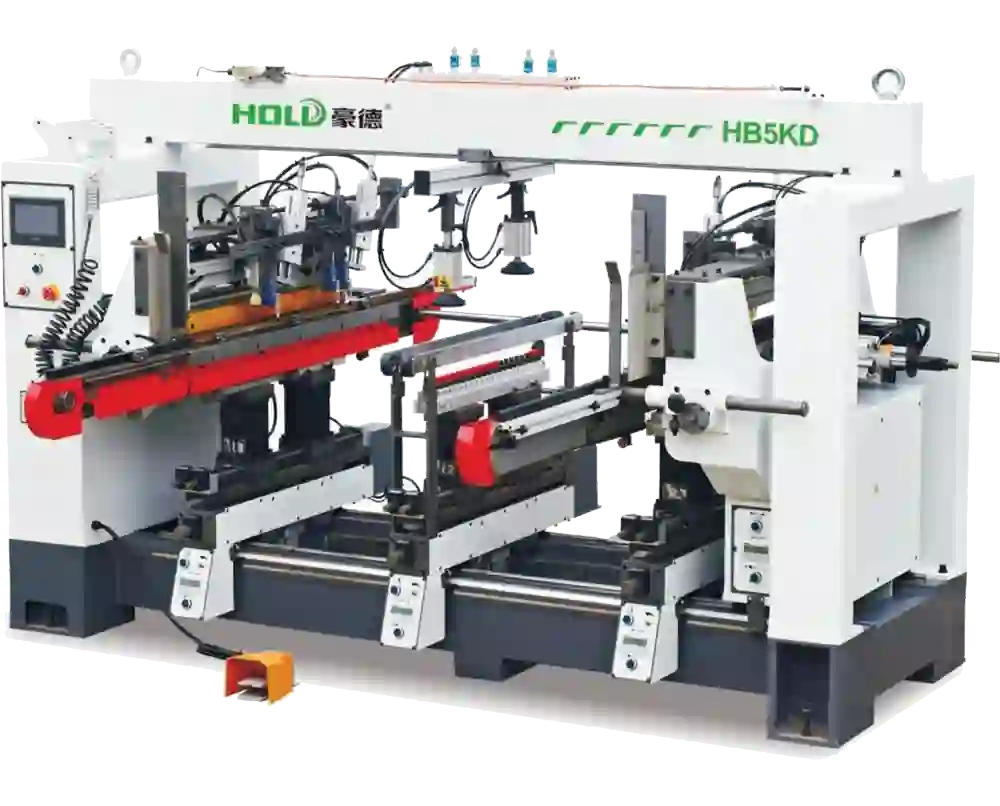

HB-5KD
Narrow Drilling Machine
- Machine frame adopts heavy duty gantry structure and base adopts heavy duty base to enhance the stability of the whole machine
- It is suitable for drilling drawer board
- Two boards, 3 sides can be processed in one time
- There is a stock bin, which the size of the stock bin can be adjusted according to the panel size, and the panel can be fed quickly, makes the processing more efficient
- With electronic calculator and drill row distribution intelligent display, it is easy to operate
Standard Configuration

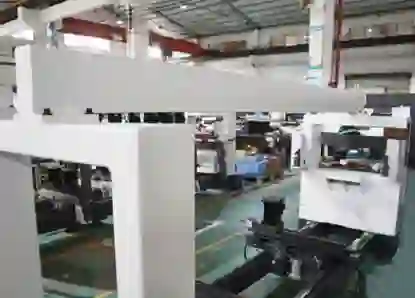

Heavy Duty Gantry Frame

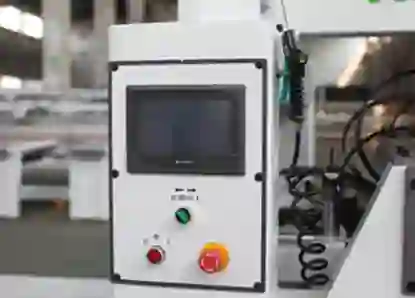

Intelligent Operation System

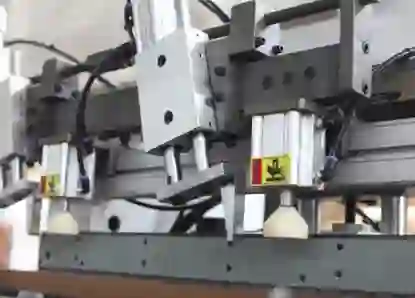

Two Positioning Structure + Independent Pneumatic Presser
Adjustable Panel Stock Bin

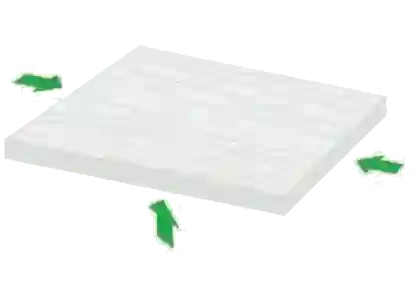

Three-sided Simultaneous Processing

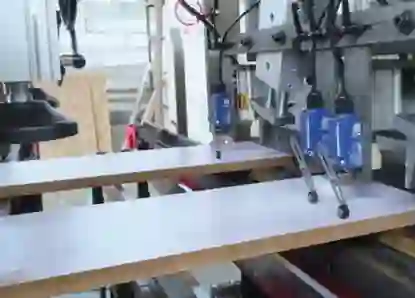

Simultaneous Processing of Two Panels

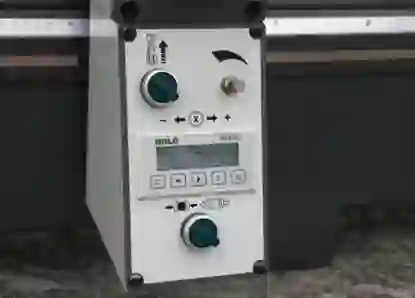

Electronic Counter

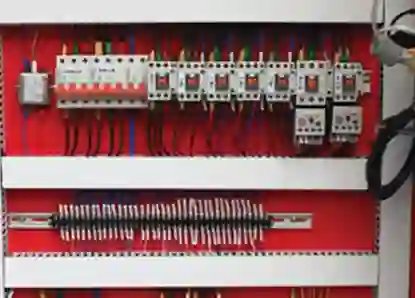

High Quality Electrical Appliances
Specification of HB5KD
| Model | HB5KD |
|---|---|
| Drill axis distance | 32 mm |
| Quantity of horizontal drill | 21 x 2 |
| Quantity of vertical drill | (11 + 11) x 3 |
| Feeding motor power | 1.5 kW |
| Feeding frequency | 20 pcs/min |
| Horizontal drill power | 2 x 1.5 kW |
| Vertical drill power | 2 x 1.1 kW |
| Motor rotating speed | 2800 rpm |
| Max. vertical drilling depth | 40 mm |
| Max. horizontal drilling depth | 40 mm |
| Min. workpiece widht (x axis) | 350 mm |
| Max. workpiece width (x axis) | 1400 mm |
| Max. working thickness (z axis) | 40 mm |
| Workpiece length (y axis) | 40 - 280 mm (double workpieces) 40 - 580 mm (single workpiece) |
| Dimensions | 2750 x 2550 x 1770 mm |
Discover More Narrow Drilling Machine
*Machine picture shown is reference only

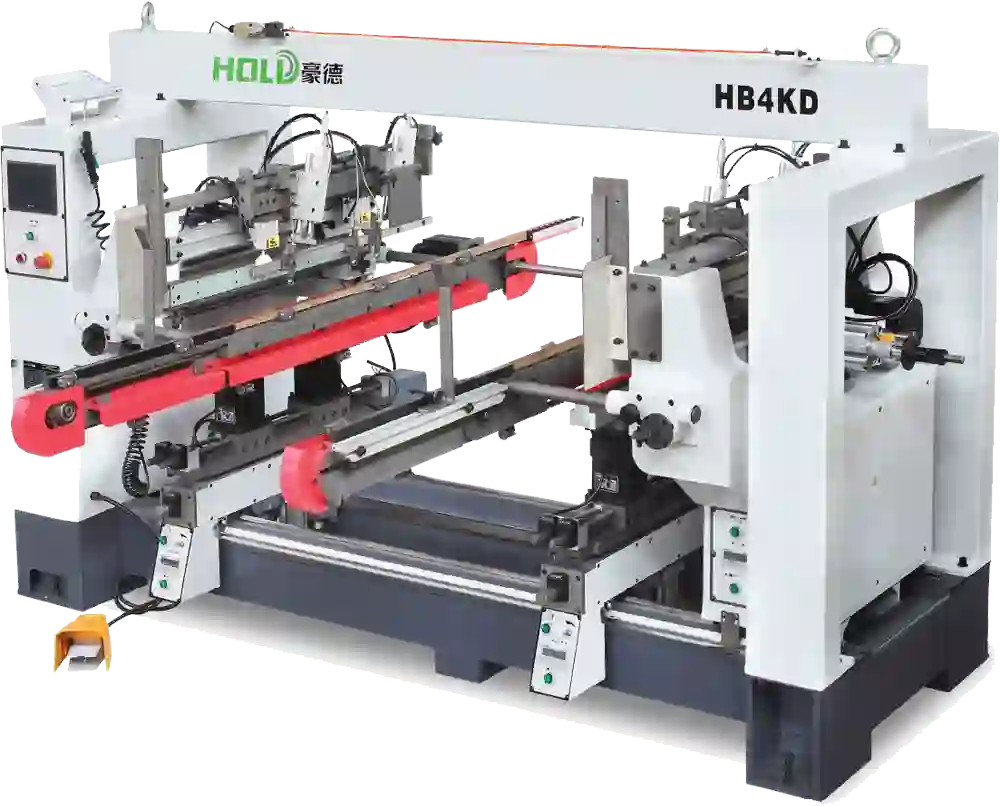

HB4KD
Narrow Drilling Machine
The HB4KD provides high-precision drilling solutions for narrow furniture parts. It is ideal for both custom and mass furniture production where compact and detailed components are involved.
