HB-3DL

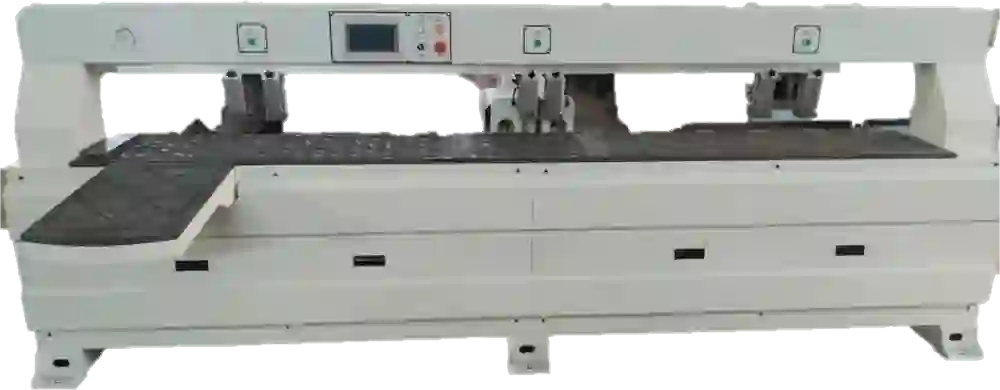

Horizontal Drilling Machine (Double Spindle)
- Double spindle motor
- Three servo driving
- Laser scan
- Scan for process
- Long machining size for 2800 mm
- 2.2 kW wind cooling main spindle, 18000 rpm/min. It can run stable and fast.
Standard Configuration

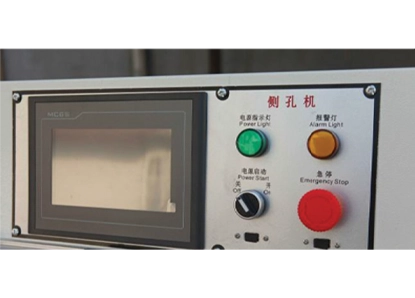

Control System

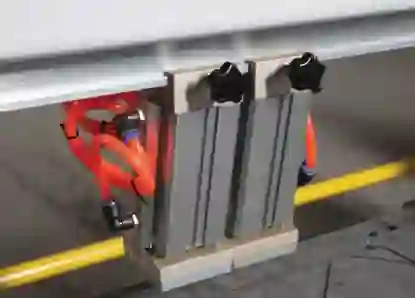

Pressing Cylinder

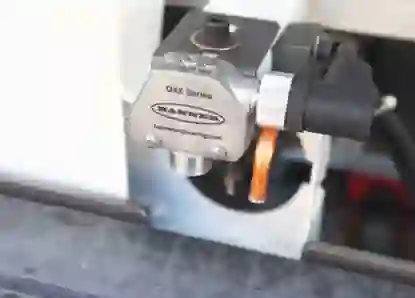

Laser Sensor

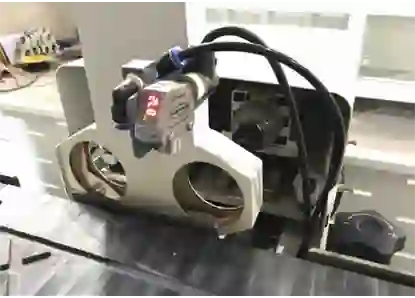

Double Spindle

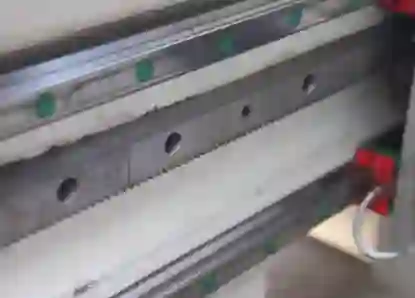

Rail

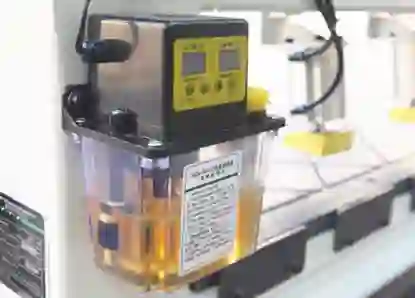

Auto Lubrication System

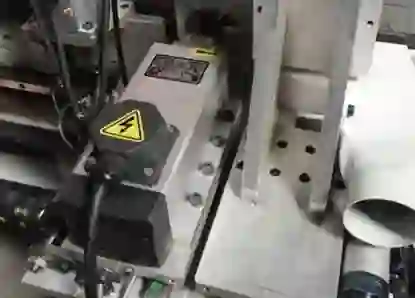

High Speed Main Spindle
Specification of HB3DL
| Model | HB3DL |
|---|---|
| Machine size | 3500 x 1300 x 1500 mm |
| Dust collector | ะค80 x 2 |
| Machining size | 80 x 2800 mm |
| Max. panel thickness | 60 mm |
| Max. drilling depth | 40 mm |
| Power | 13 kW |
| Weight | 800 kg |
| Lifting | Manual |
