Hammer Mill

Home > Product > Brand > Lida

HIGH EFFICIENCY HAMMER MILL

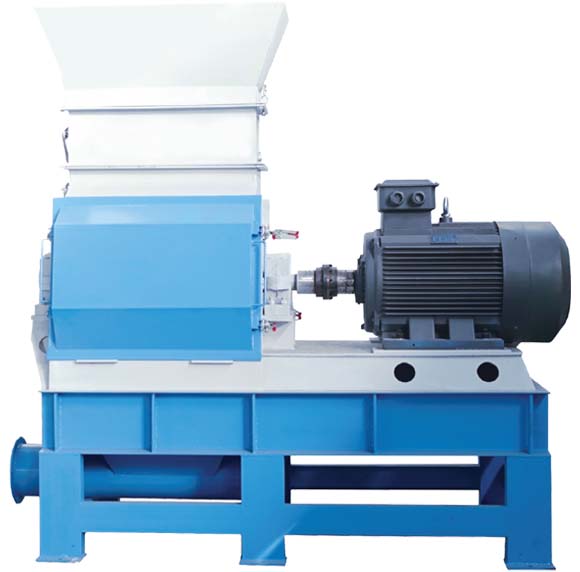

High Efficiency Hammer Mill LIDA Hammer Mill Series

GXP65 Series

The discharge port of wood hammer mill is high and the material is not blocked
THe materials of hammers is tungsten carbide spot welding. The hammers of hammer mill is thick; the effect is better
Hammer mill feeding materials vertically, and the feeding is smoothly

Raw Material LIDA Hammer Mill Series

Specification GXP65 Series

Model	GXP65 x 55	GXP65 x 75	GXP65 x 100
Main Motor	37/55 kW	55/75 kW	90/100 kW
Capacity	1-2 T/H	1.5-2.5 T/H	2.5-3.5 T/H
Hammers Qty	48 Pcs	72 Pcs	96 Pcs
Hammer Life Time	1000 hours
Hammer Material	40Cr Foundation, Heat Treated, Tungsten Carbide Treated
Rotor Rotation	1625 rpm, Passing Dynamic Balance Test
Screener Material	#45 Mn Steel, Heat Treated
Screener Diameter	4/6/8/12 mm (Optional)
Screener Quantity	2 Pcs
Screener Lifetime	2000 hours
Pneumatic Transmission System
Cyclone	1000 mm	1000 mm	1200 mm
Dust Collector	36 Bag	48 Bag	60 Bag
Fan	7.5 kw	11 kw	15 kw

Hammer Mill

GXP130 Series

Specification GXP130 Series

Model	GXP130 x 100	GXP130 x 120
Main Motor	160 kW	220 kW
Capacity	4-6 T/h	10-12 T/h
Hammers Qty	96 pcs	96 pcs
Hammer Life Time	1000 hours
Hammer Material	40Cr Foundation, Heat Treated, Tungsten Carbide Treated
Rotor Rotation	1625 rpm, Passing Dynamic Balance Test
Screener Material	#45 Mn Steel, Heat Treated
Screener Diameter	4/6/8/12 mm (Optional)
Screener Quantity	2 Pcs
Screener Lifetime	2000 hours
Pneumatic Transmission System
Cyclone	1600 mm	1600 mm
Dust Collector	108 pcs	108 pcs
Fan	37 kW	55 kW

DOUBLE MOTOR HAMMER MILL

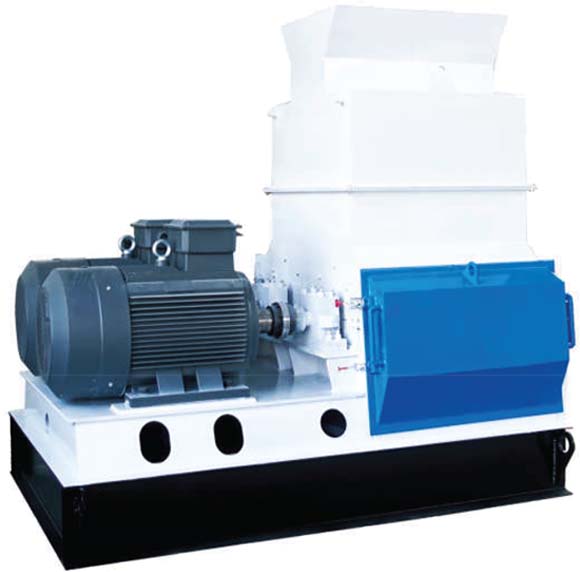

Double Rotor Hammer Mill LIDA Hammer Mill Series

It is widely used in the preparation section of small and medium-sized particleboard and fiberboard biomass enterprises, and can also be used for self-employed wood chips crushing sections.
The design is reasonable, scientifically utilizes the working principle of the hammer mill, and improves the speed of the material of the crusher.

Raw Material Double Rotor LIDA Hammer Mill Series

Specification Double Motor Hammer Mill

Model	FJS80 x 100
Main Motor	110 x 2 kW
Capacity	5-8 T/H
Hammers Qty	192 Pcs
Hammer Life Time	1000 hours
Hammer Material	40 Cr Foundation, Heat Treated, Tungsten Carbide Treated
Rotor Rotation	1625 rpm, Passing Dynamic Balance Test
Screener Material	#45 Mn Steel, Heat Treated
Screener Diameter	4/6/8/12 mm (Optional)
Screener Quantity	2 Pcs
Screener Lifetime	2000 hours
Cyclone (with pipe)	1800 mm
Dust Collector	108 pcs
Fan (Negative)	45 kW
