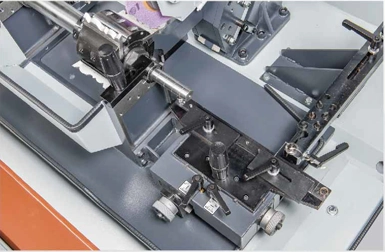

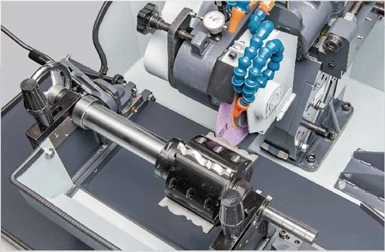

| G320P Profile knife grinding | G320P Multiple tracing rods allow for accurate and convenient grinding |
 |
 |

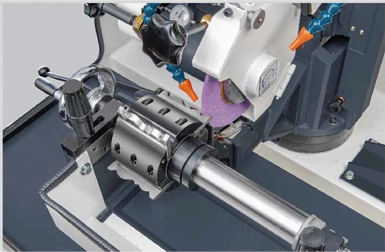

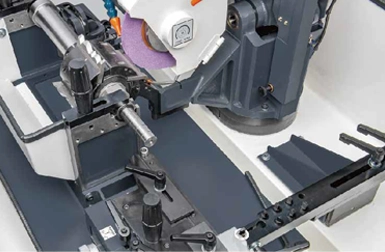

| G320PS Profile knife grinding | G320PS Straight knife grinding |
 |
 |

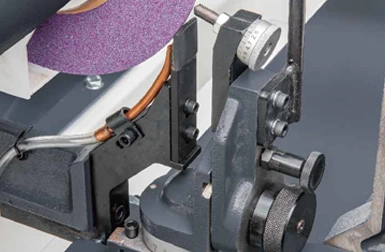

| G320PS Multiple tracing rods allow for accurate and convenient grinding | G320PS Grinding wheel dressing |

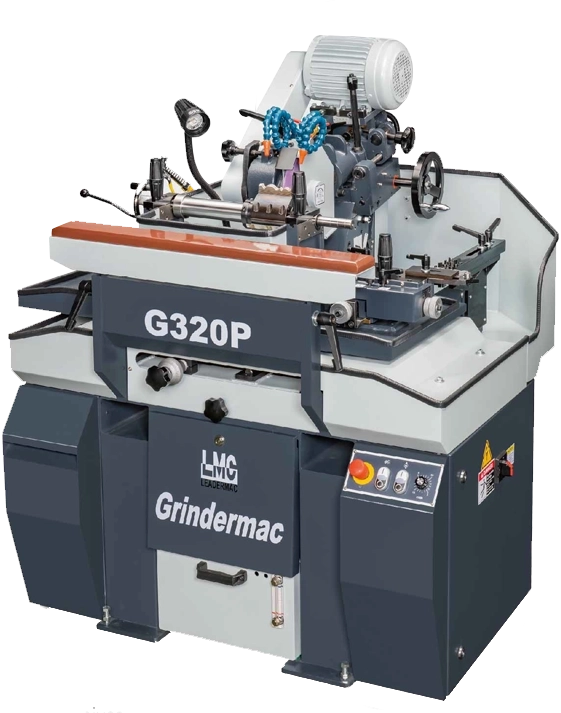

Grindermac Series G320P and G320PS
Profile Cutter Grinder
G320P
- For profile knives

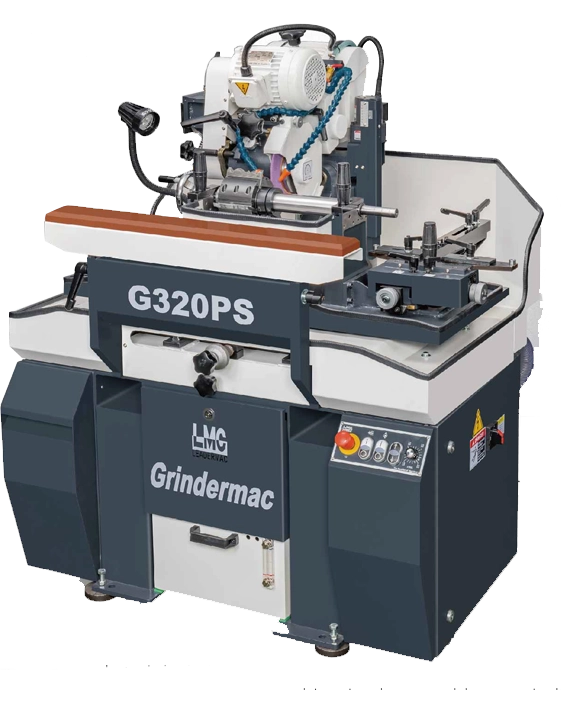

G320PS
- For profile and straight knives
- Two machines in one: this machine is also capable of grinding various straight knives. Easy to convert without need to change parts.
- Optional powered adjustment: this function eliminates manual adjustment, enhancing operation convenience.
Outstanding Features for Grindermac Series
- The profile cutter grinder is designed for grinding knife profile and sharpening application. Especially ideal for grinding profile-cutters used for cutting decoration strips.

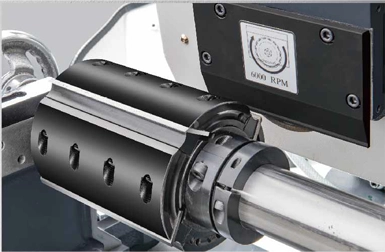

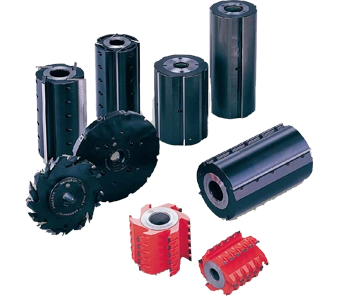

- Allows for grinding a cutterhead with 2, 4, 6, 8 or more knives. The ground cutterhead can be directly mounted on the machine without need of further adjustment of knives.
- Speed change control: can be equipped with speed control for adjusting grinding wheel speed suitable for various types of knives
- Curve shaped slide: when changin grinding angle, it is not necessary to dress the grinding wheel to return to dressing reference and adjust gap of tool rest. When the grinding wheel diameter decreases, it is convenient to adjust the gap of tool rest.
- Grinding wheel dresser: provides fast dressing of grinding wheel to a shape complying with taht of the tracing rod. Also suitable for correcting wear of the grinding wheel. When the grinding wheel diameter decreases, no additional calibration is required.
- Rotary type tracing rod assembly: choice of various shapes of tracing rod to suit complicated knife profiles.
- Grinding wheel clamp and micrometric adjustment of wheel arbor: provide fast adjustment of grinding wheel to keep it at the original dressing position
- Two-direction positioning of arbor: this function permits fast positioning when mounting cutterhead on the arbor. This is combined with the positioning of template support to eliminate further calibration
- Tilting grinding reset device: it allows for accurate and fast positioning after tiliting grinding has been performed
- Cooling system: it prevents knife from burning during grinding. Also suitable for removing powder and chips during grinding.
- Washing device: provides for convenient cleaning on grinding table
- The machine is conveniently lifted or moved by a forklift.

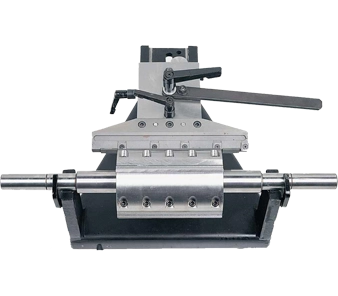

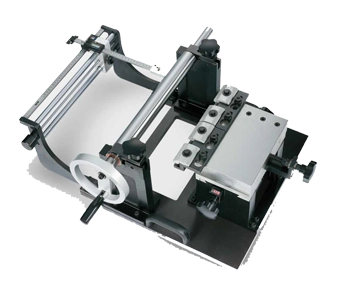

Tool Calibration Device for Grindermac Series
A tool calibration device can be supplied for the convenient and accurate calibration of each cutterhead, thus ensuring perfect cutterheead running.
Specification Grindermac Series
| Model | G320P | G320PS |
|---|---|---|
| Maximum length of cutterhead | ||
| Using locking collars | 320 mm (12.6") | 320 mm (12.6") |
| Hydro locking block | 320 mm (12.6") | 320 mm (12.6") |
| Maximum cutting circle | ||
| Profile grinding | 350 mm (13.8") | 350 mm (13.8") |
| Straight knife | - | 350 mm (13.8") |
| Minimum cutting circle | ||
| All types | 70 mm (2.75") | 70 mm (2.75") |
| Maximum depth of profile | 40 mm (1.57") | 40 mm (1.57") |
| Grinding wheels for profile grinding | ||
| Diameter | 230 mm (9") | 230 mm (9") |
| Width | 5 mm (0.197") | 5 mm (0.197") |
| Dressed width | 4.7 mm or 3.0 mm | 4.7 mm or 3.0 mm |
| Bore | 60 mm (2.36") | 60 mm (2.36") |
| For solid profile (C.B.N type) | ||
| Diameter options | - | 100 mm (4") |
| Bore | - | 20 mm (0.787") |
| Spindle speeds (Infinitely variable) | ||
| Profile grinding spindle | 1500 - 3000 rpm | 1500 - 3000 rpm |
| Straight knife spindle | - | 3000 - 6000 rpm |
| Motor outputs | ||
| Profile grinding spindle | 1.5 kW (2 HP) | 1.5 kW (2 HP) |
| Straight knife spindle | - | 0.75 kW (1 HP) |
| Head tilt | - | 0.025 kW (0.03 HP) |
| Coolant pump | 0.188 kW (0.25 HP) | 0.188 kW (0.25 HP) |
| Coolant system | ||
| Tank capacity maximum | 36 liters (8 gallons) | 36 liters (8 gallons) |
| Tank capacity minimum | 18 liters (4 gallons) | 18 liters (4 gallons) |
| Machine dimensions | ||
| Deepth | 1150 mm (45.3") | 1100 mm (43.3") |
| Width | 1150 mm (45.3") | 1150 mm (45.3") |
| Height | 1680 mm (66.2") | 1505 mm (59.3" |
| Worklamp | 20 w | 20 w |
