G320A Knife Edge Grinding (movable straight knife)

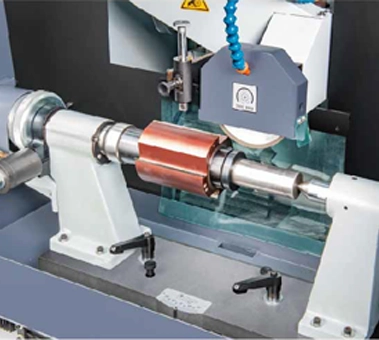

G320B Beveled Knife Back Grinding (ex. solid cutter, finger jointer knife)

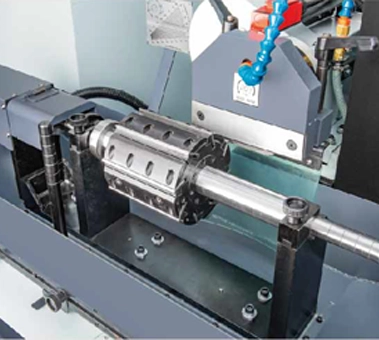

G320B Knife Edge Grinding (movable straight knife)

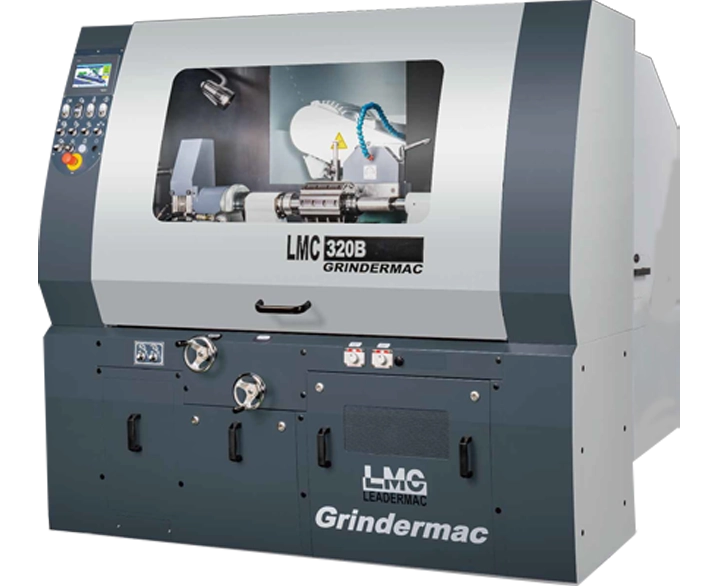

Grindermac Series G320A and G320B
Automatic Cutter Grinder
The Grindermac G320A and G320B automatic cutter grinder is an advanced grinder, featuring fully automatic grinding operation. With the PLC control, high grinding accuracy is obtainable.
Outstanding Features:
- Cutter rotation is automatically controlled by PLC for high accuracy.
- Grinding head movement is automatically controlled by PLC, ensuring high grinding accuracy.
- Humanified touch-sensing screen allows for convenient operation.
- Multiple micro-switches protection upgrades operational safety.
- Hydraulic system controls the slide movement rightward / leftward, featuring maximum stability
- Automatic or manual movement of slide is quick to change.
- The entire machine is thoroughly protected by safety guards to achieve higher safety
- Fast cutterhead change saves considerable time while upgrading efficiency
- The control panel offer simple setting of tool parameters that saves cutter setting time
- Movable working light for added convenience.

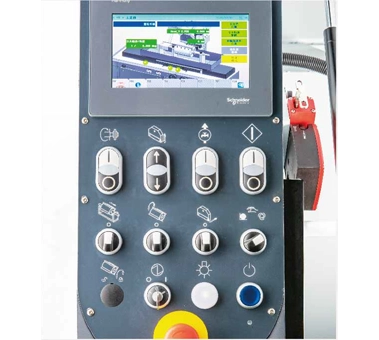

NC Controller
Tool Calibration Device for Grindermac Series
A tool calibration device can be supplied for the convenient and accurate calibration of each cutterhead, thus ensuring perfect cutterheead running.
Specification Grindermac Series
| Model | G320A | G320B |
|---|---|---|
| Max. length of cutterhead | ||
| Conventional cutterhead (by nut locking) | 320 mm (12.6") | 320 mm (12.6") |
| Hydraulic cutterhead by hydraulic bushing locking) | 320 mm (12.6") | 320 mm (12.6") |
| Max. diameter of cutter | 320 mm (12.6") | 320 mm (12.6") |
| Min. diameter of cutter | 125 mm (5") | 125 mm (5") |
| Max. number of knives | 32 | 32 |
| Grinding wheel | ||
| Diameter | 175 mm (6.9") | 175 mm (6.9") |
| Bore | 25 mm (1") | 20 mm (0.79") |
| Spindle speed | 3000 rpm Max | 1000 - 6000 rpm |
| Motors | ||
| Grinding wheel arbor | 1.5 kW (2 HP) | 3.75 kW (5 HP) |
| Coolant pump | 0.188 kW (0.25 HP) | 0.188 kW (0.25 HP) |
| Hydraulic motor | 0.75 kW (1 HP) | 0.75 kW (1 HP) |
| Cooling system | ||
| Coolant tank capacity - Max. | 28 liters (6.15 gallons) | 23 liters (6.08 gallons) |
| Coolant tank capacity - Min. | 16 liters (3.5 gallons) | 11 liters (2.91 gallons) |
| Machine dimensions | ||
| Length | 1905 mm (75") | 1985 mm (78.1") |
| Width | 1100 mm (43.3") | 1645 mm (64.8") |
| Height | 1500 mm (55") | 1800 mm (74.8") |
| Worklamp | 20 w | 20 w |
