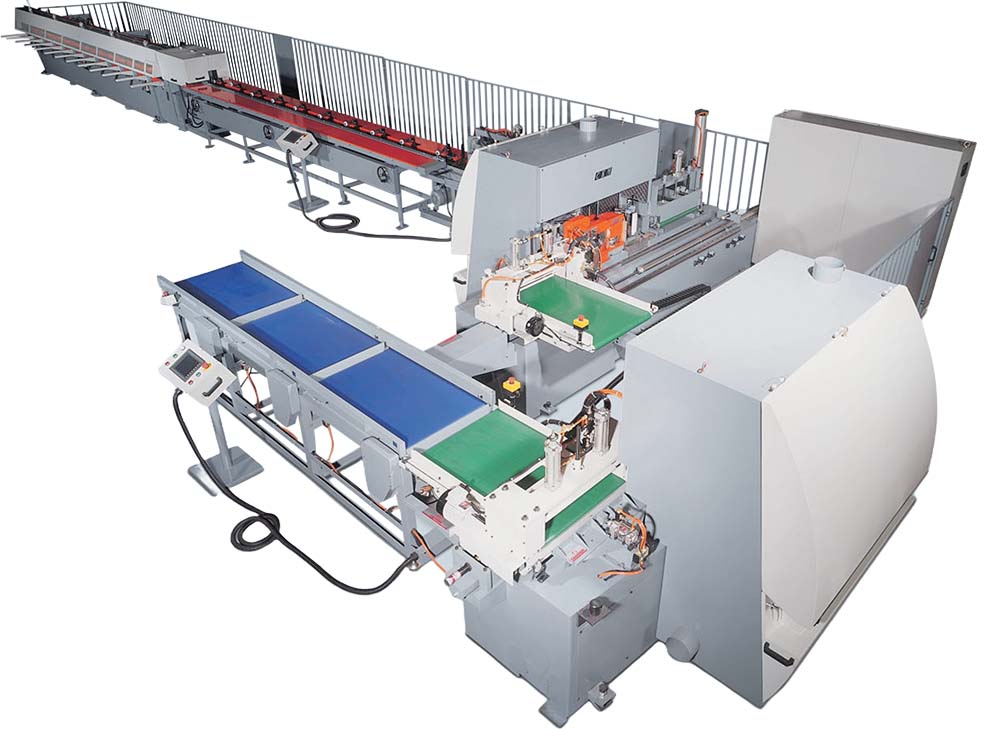

The most cost effective automatic finger jointing line.
CKM,a world-class woodworking machinery manufacturer since 1960,has been producing finger jointing systems. CKM finger jointing systems have been operated worldwide. The popularity of CKM finger jointing system is because the systems are designed with the purpose of finger jointing in mind. The CKM finger jointing systems are most user friendly and cost effective. This is achieved by CKM’s extensive experience and continued innovation.
Capacity 2-4 sticks/min
Production Flow Chart
1. Automatic initial infeeding of workpieces.
2. Automatic feed table.
3. F-C05 right finger shaper performs scoring, trimming, and shaping on right end of workpiece.
4. Workpieces automatically travel into left finger shaper.
5. F-C06 left finger shaper performs scoring, trimming, shaping and gluing on left end of workpiece.
6 . Workpieces travel onto the standby conveyor, then feed forward onto automatic feeding table.
7. Workpiece feed one by one automatically.
8. Work pieces automatically feed to pre-press assemble stand.
9. Workpieces travel forward for cutting-to-length.
10. Finger assembly is performed by a powerful hydraulic system.
11. Final product out-feed on staging platform.
F-C05 Finger Shaper (Right End)
FINGER SHAPER (Right End)
- It combines three functions – scoring, trimming, shaping in a unit on right end of the workpiece.
RIGHT SHAPING MECHANISM
The mechanism performs scoring, trimming, shaping operations on right end of the workpiece. Scoring blade in front of trimming blade cuts bottom edge to give splinter free finish. Finger cutters produce smooth finger shape, cutting capacity 6 1/4″ thick.
ACCURATE SAWBLADE ADJUSTMENT
The trimming and scoring sawblade position are adjusted on the precision rod guides, which are hard chrome plated for maximum wear resistance. Micrometers are also provided for accurate indication for adjustment, ensuring superior jointing quality.
F-C06 Finger Shaper (Left End)
FINGER SHAPER (Left End)
It combines four functions-trimming, scoring, shaping and gluing on left end of the workpiece.
LEFT SHAPING MECHANISM
The mechanism performs scoring, trimming, shaping and gluing operation on left end of the workpiece. Scoring
blades cut top and bottom edges to prevent fear-out.
CUTTER PRESETTER
A cutter presetter is built on the right shaper for convenient cutter assembly.
F-A03 Assemble Press
ASSEMBLE PRESS
- The assemble press employs two hydraulic cylinder at front and rear, providing more powerful and faster jointing performance. This special design also assure extremely consistent jointing effect on the entire wood.
- The assemble press joints short stoch to produce long board length up to 6200mm.
- A synchronized 2-step process allows the back of the press to continue jointing and cutting to length while the front of the press is performing pressing and autfeed motions.
- Times of cut are controlled by limit switches, which permits for maximum 4 times of cut setting.

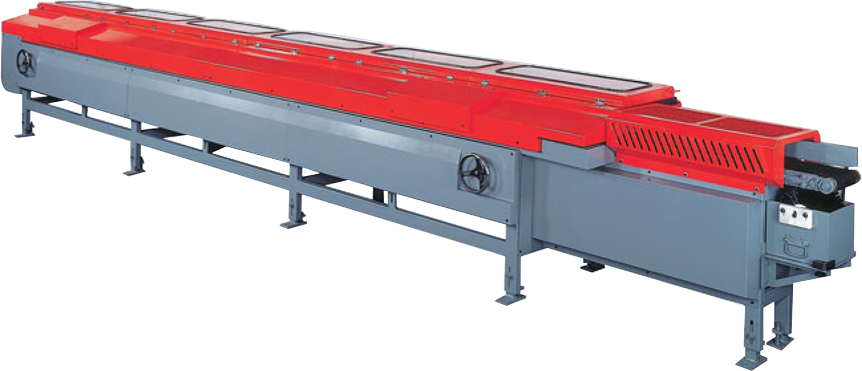

F-T03 Pre-press Assemble Stand
F-T03 CHAIN TYPE PRE-PRESS ASSEMBLE STAND
(LESS INFEED CONVEYOR TABLE)
F-T05 CHAIN TYPE PRE-PRESS ASSEMBLE STAND
- The pre-press assemble stand employs chain feed, and provides 3 and 6 meters of length to choose from.
- This assemble stand provides prepressed board ready to be cut to length, and ensures accurate vertical
and horizontal alignment of finger joint. The pre-press is fully synchronized with cut-to-length process
F-I01 Three Initial Infeed Tables
MULTI-STAGE INITIAL CONVEYOR TABLE
- The three initial infeed tables allows for continuous infeed of workpiece.

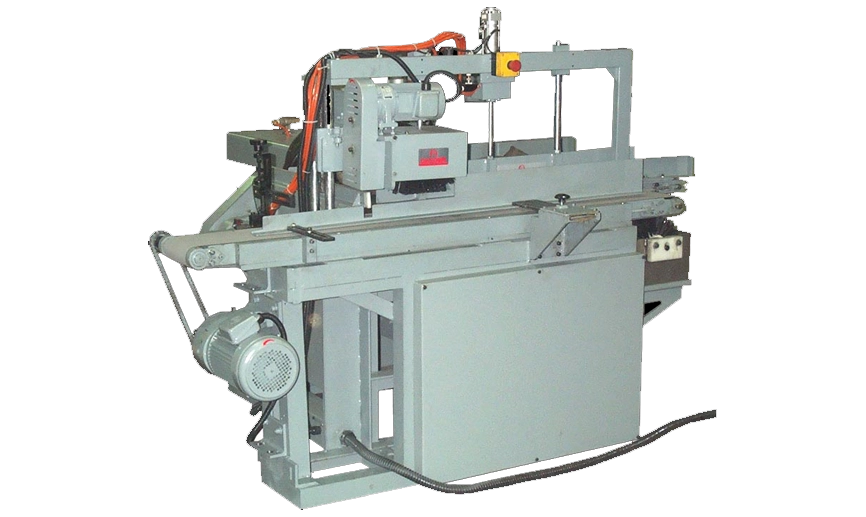

F-D01 Automatic Feeding Table
AUTOMATIC FEEDING TABLE (ON MODEL FL-03)
- Located in front of prepress assemble stand this automatic feeding table allows workpieces to feed, on by one, eliminating operator’s efforts.
- Workpieces turn-over are made by a ateel brush roller.
Dimensional Drawing of FL-03
F-I01 THREE INITIAL INFEED TABLES
F-C05 FINGER SHAPER (Right End)
F-C06 FINGER SHAPER (Left End)
F-D01 AUTOMATIC FEEDING TABLE (on model FL-03)
F-T03 PRE-PRESS ASSEMBLE STAND
F-A03 ASSEMBLE PRESS
Video of FL-03
Spesifikasi FL-03
| Multi Stage Initial Conveyor Table | F-I01 |
|---|---|
| Conveyor table width | 650 mm |
| Table height | 860 mm |
| Feed drive motor | 1 HP x 3 |
| Overall length | 3250 mm |
| Overall width | 860 mm |
| Overall height | 960 mm |
| Combined packing dimensions (L x H x W) | 4190 x 1175 x 1780 mm |
| Finger Shaper (Right End) | F-C05 |
|---|---|
| Max. working width | 650 mm |
| Range of material length | 150 - 1000 mm |
| Range of material height | 30 - 160 mm |
| Table feed speed (Air / hydraulic combiluation cylinder) | 0 - 20 m/min |
| Trim saw speed | 2800 rpm (50 Hz), 3400 rpm (60 Hz) |
| Finger cutter speed | 5000 rpm |
| Scoring saw speed | 2800 rpm (50 Hz), 3400 rpm (60 Hz) |
| Motor Horse Power | |
| For table drive | ½ HP |
| For scoring saw | 1 HP |
| For trimming saw | 10 HP |
| For finger cutter spindle | 20 HP |
| Finger cutter spindle dia. | ø 50 mm |
| Finger cutter specif. (I.D./Max.O.D.) | ø 70 / ø160 mm |
| Dust outle diameter | 6" x 2 |
| Machine dimensions (L x H x W) | 3670 x 1905 x 2155 mm |
| Noise level | 88.2 Db |
NOTE: ø50mm Clamping collars with various thickness for finger cutter ane optional accessories to be ordered.
| Finger Shaper (Left End) | F-C06 |
|---|---|
| Max. working width | 650 mm |
| Range of material length | 150 - 1000 mm |
| Range of material height | 30 - 160 mm |
| Table feed speed (Air / hydraulic) | 0 - 20 m/min |
| Trim saw speed | 2800 rpm (50 Hz), 3400 rpm (60 Hz |
| Finger cutter speed | 5000 rpm |
| Upper scoring saw speed | 2800 rpm (50 Hz), 3400 rpm (60 Hz) |
| Lower scoring saw speed | 2800 rpm (50 Hz), 3400 rpm (60 Hz) |
| Motor Horse Power | |
| For table drive | ½ HP x 2 |
| For upper scoring saw | 1 HP |
| For lower scoring saw | 1 HP |
| For trim saw | 10 HP |
| For ginger cutter spindle | 20 HP |
| Finger cutter specif. (I.D./Max.O.D.) | Ø 70 / Ø 160 mm |
| Dust outlet diameter | 6" x 2 |
| Machine dimensions (L x H x W) | 4160 x 1905 x 2155 mm |
| Noise level | 88.2 Db |
NOTE: ø50mm Clamping collars with various thickness for finger cutter ane optional accessories to be ordered.
| AUTOMATIC FEEDING TABLE | |
|---|---|
| Conveyor table width | |
| Table height | |
| Range of material length | |
| Range of material height | |
|
|
| Feed drive motor | |
| Outfeed drive motor | |
| Brush roller drive motor | |
| Overall length | |
| Overall width | |
| Overall height | |
| CHAIN DRIVE PRE-RESS ASSEMBLY STAND | |
|---|---|
| Max. pre-press length | |
| Range of workpiece width | |
| Range of workpiece height | |
| Feed speed | |
|
|
| For left transmission | |
| For right transmission | |
| Machine dimensions ( L x H x W ) | |
| Noise level | |
| Packing dimensions ( L x H x W ) | |
| ASSEMBLE PRESS (DOUBLE SIDES PRESSING) | |
|
|---|---|---|
| MODEL | | |
| Max. product length | | |
| Range of material height | | |
| Range of material width | | |
| Feed speed | | |
| Range of pressing pressure | | |
| Production rate | | |
| MOTOR HORSEPOWER | ||
| For feeding | | |
| For hydraulic pump | | |
| For sizing | | |
| Saw arbor diameter | | |
| Dust outlet diameter | | |
| Machine dimensions (L x H x W) | | |
| Noise level | | |
| Packing dimensions (L x H x W) | | |
