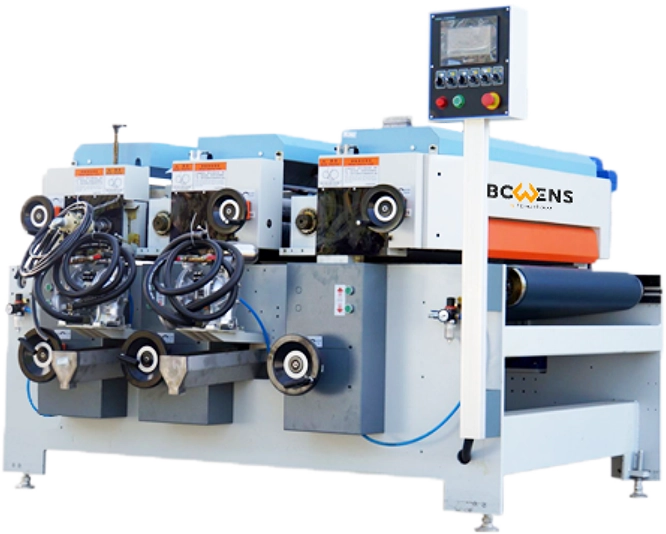

Three Roller Coating Machine

FC-1300# Three Roller Coating

Function: this machine is suitable for flat coating of various wood, plastic, metal and other products. The paint surface treated by this machine is smooth, with good fullness and no color difference.

Description of lifting system: automatic lifting
Description of manual lifting: motor unit tranmission lifting
Description of paint recycling: stainless steel return tank, single tank and single pump
Lift base specification: cast iron dovetail type
Pumping: high flow pump

Coater wheel configuration

Size: Ø250 x 1450
Material: rubber
Requirements:
Primer hardness: 30-35°
Topcoat hardness: 40-45°
Amount: 3 units

Electric wheel configuration

Size: Ø164 x 1450
Material: 45 # steel
Requirements: hard chrome plated, surface polished
Amount: 3 units

Drive wheel configuration

Size: Ø136 x 1320
Material: 45 # steel
Requirements: Hard chrome plating
Amount: 1 stick

Electrical appliances

Inverter
Specification: 0.75 kW/1.5 kW
Amount: 7 units
Rubber wheel reduction motor unit
Specification: 1.5 kW
Amount: 3 units
Electric light wheel reduction motor unit
Specification: 0.75 kW
Amount: 3 units
Lifting motor
Specification: 0.37 kW
Amount: 1 unit
Control interface
Specification: GL070
Amount: 1 unit
Low voltage electrical appliances: chint

Detail of View Part 1 FC-1300# Single Roller Coating Machine

Detail of View Part 2 FC-1300# Single Roller Coating Machine

Detail of View Part 3 FC-1300# Single Roller Coating Machine

Specification FC-1300# Three Roller Coating

Model	FC-1300# Three Roller Coating
Effective working width	0-1300 mm
Effective working thickness	3-80 mm
Speed	5-20 m/min
Minimum processing length	300 mm
Machine length	2500 mm
Power	22 kW
Voltage	380V
Overall dimensions	2500 x 2600 x 1600 mm
Power of coater wheel generator	1.5 kW (topcoat)
