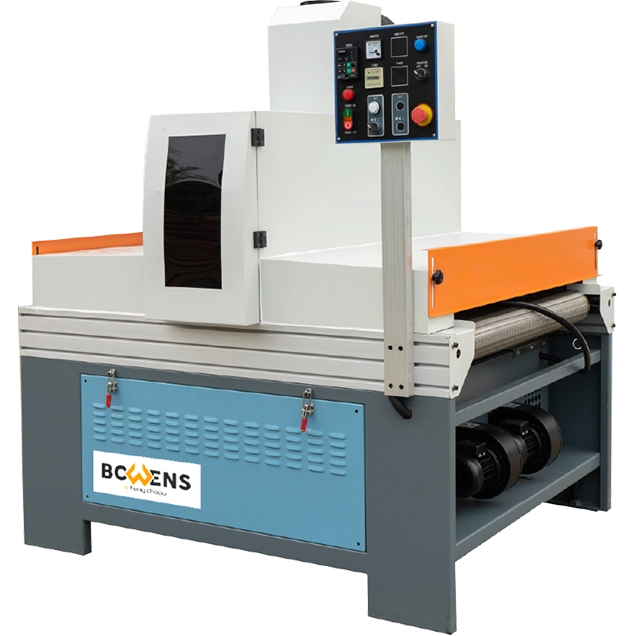

FC-1300# Single Lamp UV Dryer

Function: widely applied to the instant drying of general plane coating and other UV curable coatings.

Specification FC-1300# Single Lamp UV Dryer

Model	FC-1300# Single Lamp UV Dryer
Effective working width	1300 mm
Effective working thickness	3-80 mm
Feeding speed	5-20 m/min
Power transmission unit	0.4 kW frequency inverter
Model of conveyor (stainless steel mesh)	Ø96 x 1320 mm
Tube power and length	9.7 kW x 1490 mm 11.2 kW x 1490 mm
Mercury lamp power	150-200 mJ
Exhaust caliber and quantity (single head)	Ø150 x 1
Total power	11.5 kW
Overall dimensions	1500 x 1700 x 1900 mm

The Introduction of FC-1300# Single Lamp UV Dryer

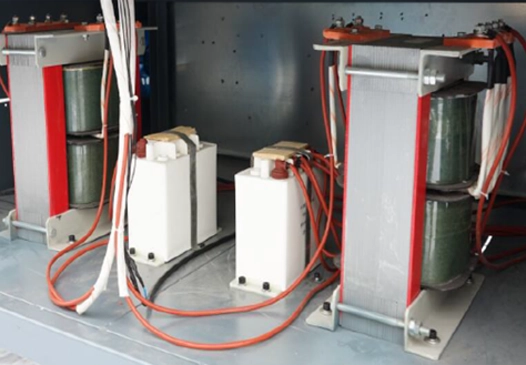

The interior of the lamp box is well ventilated, effectively prolonging the service life of UV lamps, transformers and capacitors.
The side panels, the import and export shielding panels are equipped with anti ultraviolet radiation barriers to effectively isolate the ultraviolet radiation
The conveying device adopts professional structure to extend the service life of the conveyor belt and ensure the bright surface of the painted pars
The man-machine interface of the integrated operation panel, the operation procedure and the operation state of UV are displayed directly on the screen. The operation of the UV system can be monitored and controlled completely. The mercury lamp and gallium lamp made according to CE specifications can be interchanged on the same lampshade

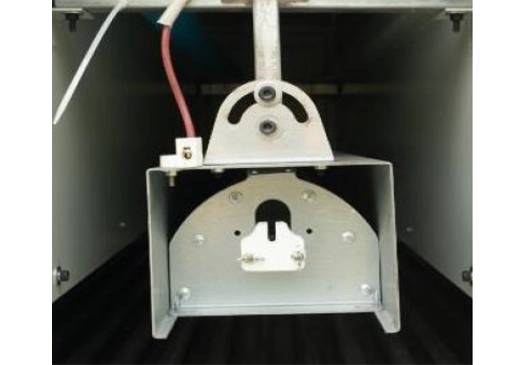

For different types of UV coatings (Acrylic or Polyester-based), full-focus or semi-focus lampshades can be selected; the rack is made of high-strength industrial aluminum 50 x 200 series with 3T cold plates

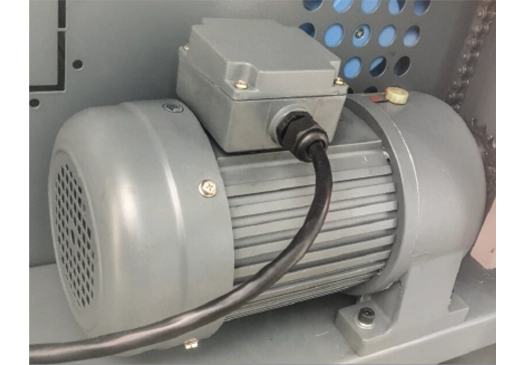

Conveyor chain adopts high precision short pitch extended pin roller chain series, high strength industrial aluminium profile series size (stainless steel mesh conveyor and roller conveyor can be selected), conveyor adopts aluminium alloy sheel gear reducer motor and frequency converter control.

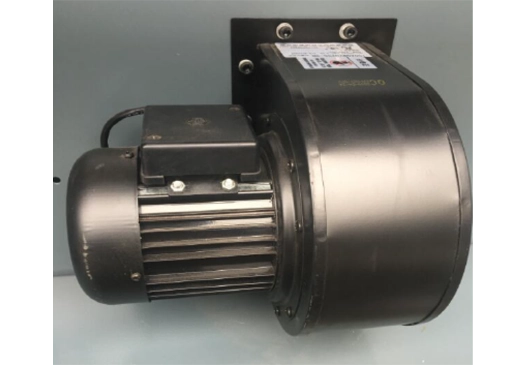

UV drying system adopts imported quartz tube material strong ultraviolet high pressure mercury lamp (such as special gallium lamp for non-ferrous paint selection, strengthening drying), with aluminum focusing reflector lamp shade, high capacity special capacitor to regulate the radiation energy of lamp tube, with independent heat dissipation centrifugal fan device

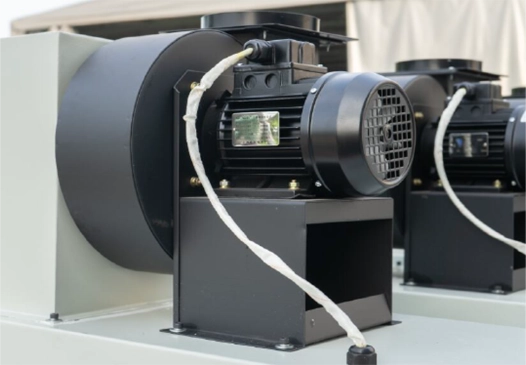

The use of integrated electronic control box control, can be better used for machine maintenance it is equipped with aluminum alloy shell centrifugal fan, can better promote the heat dissipation of the machine
Analso electronic modules is also available as an option
