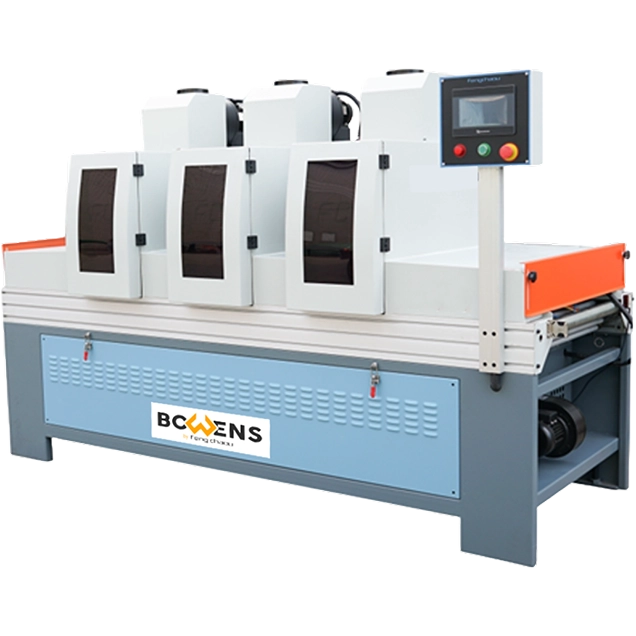

FC-1300# Electronic Three Lamps UV Dryer
Function: widely suitable for instant drying after using UV ligh-cured coatings such as general flat painting
Description of machine
- Each group of lamps is controlled by a separate electrical box to achieve better heat dissipation
- Energy control (0% / 50% / 100%)
- Integrated electrical box or independent electrical box can be selected
- The electronic transformer with photo electric induction system to standby without working components (double lamps)
Lamp configuration
- Mercury lamp transformer
Length: 1490 mm
Mercury lamp power: 9.7 kW
Amount: 3 sticks - Gallium lamp transformer
Length: 1490 mm
Gallium lamp power: 9.7 kW
Amount: 3 sticks
Drive wheel configuration
- Size: Ø96 x 1320
- Material: 45 # steel
- Requirements: hard chrome plating
- Amount: 2 sticks
Conveyor configuration
- Ttransportation way (optional): aluminum tube/chain mesh/stainless steel mesh
- Lampshade (choose): full focus
Electrical appliances
- Inverter
Specification: SL3-043
Amount: 1 set - Conveyor motor
Specification: 0.75 kW
Amount: 1 set - Control interface
Specification: GL070
Amount: 1 set - Low voltage electrical appliances: chint
- Exhaust diameter and quantity: Ø150 x 1
Control panel
Radiator fan
UV lamps shade
Electronic transformer
Specification FC-1300# Electronic Three Lamps UV Dryer
| Model | FC-1300# Electronic Double Lamp UV Dryer |
|---|---|
| Effective working width | 0-1300 mm |
| Effective working thickness | 3-80 mm |
| Feeding speed | 5-20 m/min |
| Minimum processing length | 300 mm |
| Power | 28 kW |
| Voltage | 380V |
| Overall dimensions | 2500 x 1700 x 1900 mm |
| Energy value mercury lamp (UVA) 15 m/min | 300-400 mJ |
