FC-1300#
Automatic Painting Machine (Wide Body)
Function: UV and water-based spraying, suitable for cabinets, cabinet doors, panel furniture, office furniture, panels, etc
Spray Gun Configuration
- Result: The atomization effect is fine and even
- System: medium pressure mixture
- Amount: 4-8 (optional)
Spray Gun Specification
- Medium pressure air-mixed spray gun
- Speed of reciprocation: 0.2 – 2.5 m/s
- Spray gun shelf: two groups of reciprocating movements
- Flow value: depends on paint properties
Main Exhaust Configuration
- Exhaust air: 12500 – 20000 m3/h
- Caliber of exhaust fan: 650 x 570
- Main exhaust fan power: 11 kW
- Pressure air fan power: 145 W x 8
Piston Pump Configuration
- Ratio of pressure: 16:1
- Amount: 1 – 2 (optional)

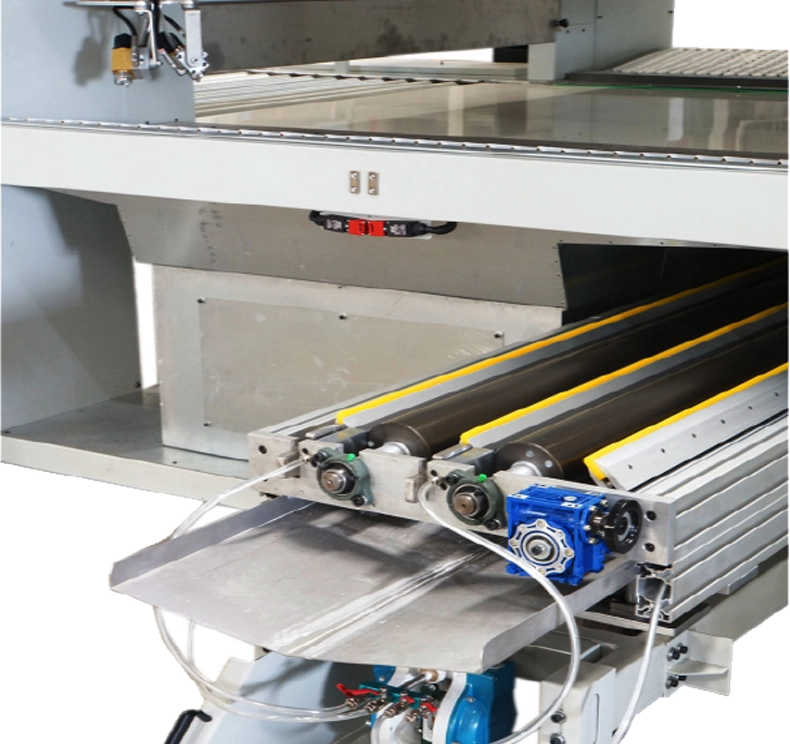

Belt Cleaning Device
- Construction: pull-out type
- System: Cycle automatic cleaning
- Scraper: break shield 90°
- Amount: 3
Electrical Appliances
- Inverter
Specification: 1.5 kW
Amount: 1 set - Conveyor Motor
Specification: 1.5 kW
Amount: 1 set - Reciprocating Motor
Specification: 2.0 kW
Amount: 1 set - Cleaning Motor
Specification: 1.5 kW
Amount: 1 set - Control Interface
Specification: MT4512T
Amount: 1 set - Low Voltage Electrical Appliances: Chint
Specification Automatic Painting Machine (Wide Body)
| Model | FC-1300# Automatic Painting Machine (Wide Body) |
|---|---|
| Effective working width | 0 - 1250 mm |
| Effective working thickness | 10 - 70 mm |
| Speed | 1 - 5 m/min |
| Minimum processing length | 300 mm |
| Working pressure | 0.6 Mpa |
| Power | 19.1 kW |
| Voltage | 380 V |
| Overall dimensions | 5700 x 3800 x 2500 mm |
| Electric box size | 800 x 600 x 2000 mm |
