FC-1300# 8M Jet Air Dryer
Spray Dryer

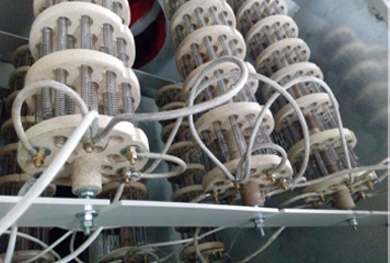

Description: using 100 x 50 high-strength square tube steel, the light source is dual quartz LR infrared heating tube, ceramic heating tube: 6 pcs x 6 kW
Function: drying system with high flow ratio, mainly for drying pigmented and water-based coating products
Lamp configuration
- Lamp power: 3 kW
- Length: (L) 1330
- Lamp number: 7 pcs
Drive wheel configuration
- Size: Ø136 x 1330
- Material: 45 # steel
- Requirements: rubber
- Amount: 2 pcs
Conveyor configuration
- Transportation way (optional): Aluminum tube/chain mesh/stainless steel mesh
- Chain spacing: 20 mm
- Air volume: 6500 m3/hour

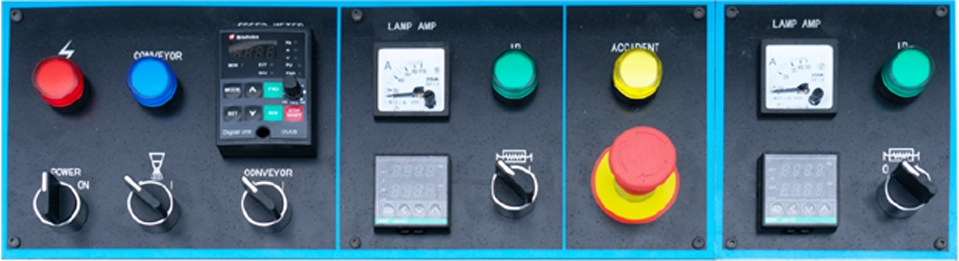

Electrical Appliances
- Inverter
Specification: SL3-043
Amount: 1 set - Conveyor motor
Specification: 1.5 kW
Amount: 1 set - Low voltage electrical appliances: chint
- Centrifungal fan: 2.2 kW
- Dehumidifying fan: 230 W
- Exhaust diameter and quantity: Ø150 x 1
Specification FC-1300# 8M Jet Air Dryer (Spray Dryer)
| Model | FC-1300# 8M Jet Air Dryer (Spray Dryer) |
|---|---|
| Effective working width | 0 - 1300 mm |
| Effective working thickness | 3 - 80 mm |
| Speed | 5 - 20 m/min |
| Minimum processing length | 300 mm |
| Machine length | 8000 mm |
| Power | 60 kW |
| Voltage | 380 V |
| Overall dimensions | 8000 x 1900 x 2100 mm |
| Temperature control | Independent temperature control system |
| Temperature range | 0 - 120° |
