EV691G / EV583S / EV582- Edgebanding Technology

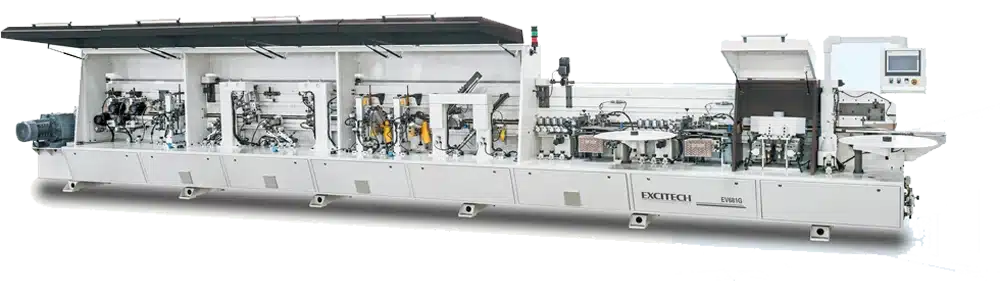

EV691G – High Speed Edgebanding Technology

EV691G - High Speed Edgebanding Technology
EV691G - High Speed Edgebanding Technology_1
EV691G - High Speed Edgebanding Technology_2
EV691G - High Speed Edgebanding Technology_3

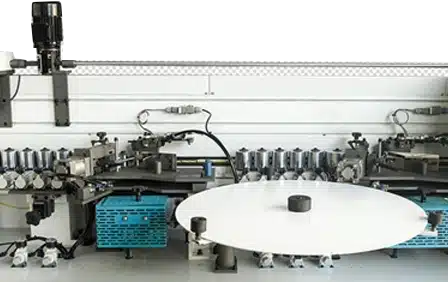

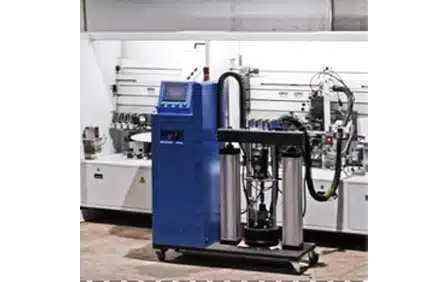

Double Glue Reservoirs

Two glue reservoirs to quickly switch between colors and to achieve invisible joint.

Top pressure belt conveyor as opposed to conventional roller system that holds the workpiece firmly even during high speed operation.
Flat Scraping
Spraying Unit

This device spray-applies a thin coat of release agent to the upper and lower edge area of the workpiece and prevents squeezed out glue from adhering to the workpiece.

EV691G - High Speed Edgebanding Technology_5

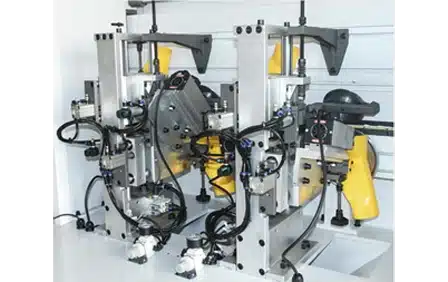

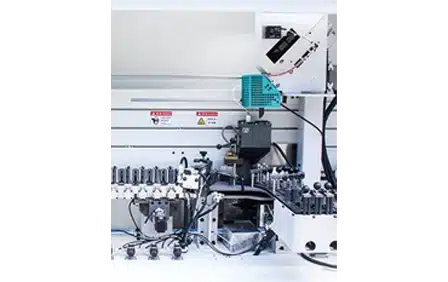

Corner Trimming Unit

With 4 motors, this device works well with various edge thicknesses and invariably result in perfect round corner.

Features

  • The gluing unit features quick melt and an application device that guarantees perfect glue quality on different edge materials.
  • Temperature adjustable by control. When the edgebander is running without workpiece, the system automatically stops heating up the glue.
  • The trimmed edge is always finished with a clean cut thanks to the precision linear guide and the high speed motors.
  • Quick changeover between different edges can be easily realized by clicking on the touchscreen.

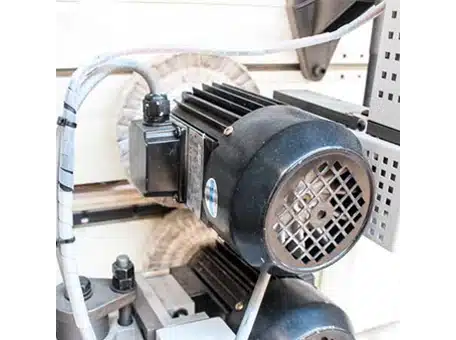

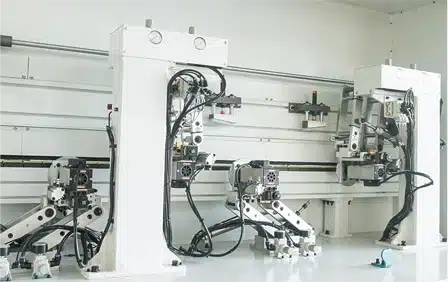

  • 4 motor that travel in a reciprocating motion to clean and buff the workpiece.
EV691G - High Speed Edgebanding Technology_6

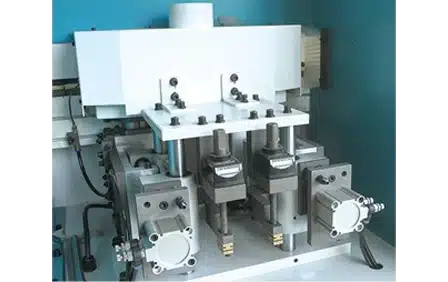

Flat Scraping
R Scraping
R Scraping
Trimming
Trimming

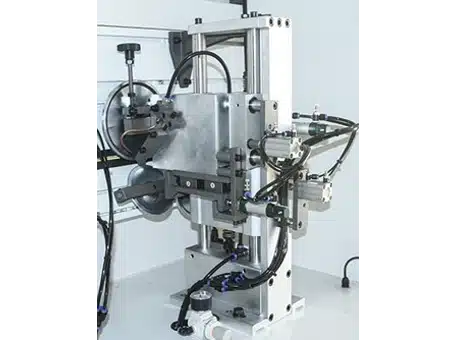

Two motors traveling on linear guides for end-trimming
Two motors traveling on linear guides for end-trimming

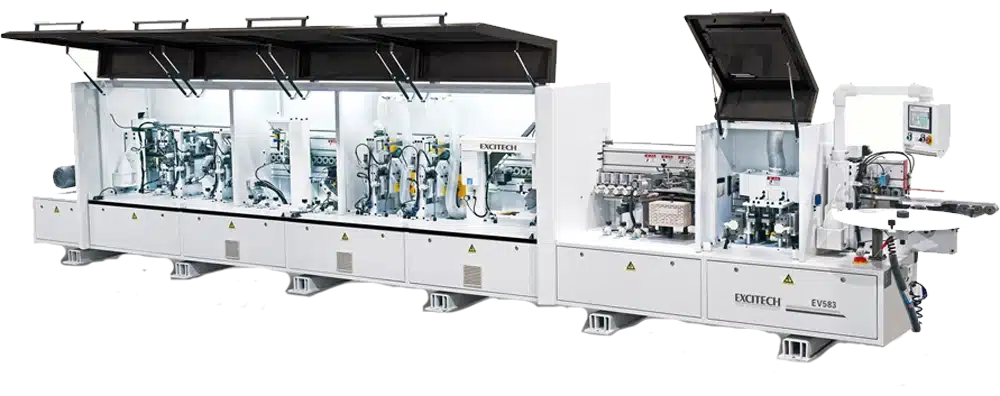

EV583S – Edgebanding Technology

EV853S - Edgebanding Technology

EV582 – Edgebanding Technology

EV852 - Edgebanding Technology

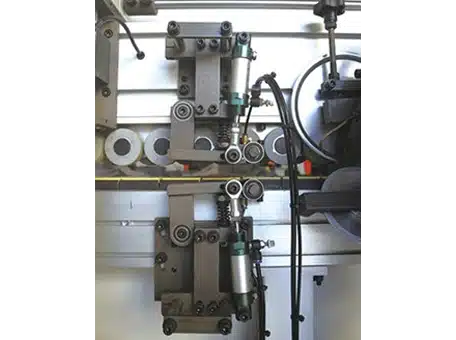

6 Roller Pressure Zone
6 Roller Pressure Zone

  • One big precision roller and 5 small to make sure the edge is pressed seamlessly to the workpiece.
  • The big roller and gluing rollers press simultaneously. The 5 small rollers consist of 1 cylinder shaped and 4 cone shaped rollers. The latter further ensures that the edge is properly pressed to the workpiece.
  • All rollers have their independent pressure control valve.

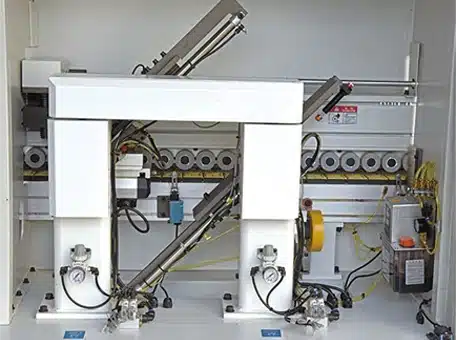

Pre-milling Unit
Pre-milling Unit

  • Equipped with diamond tools for better cut and longer use.
  • This device removes the burr or uneveness on the edge of the workpiece, leaving a smooth surface for the edgebanding.
  • Profiling units available upon request.
Spesifikasi EV691G - High Speed Edgebanding Technology
MODEL
EV691G
EV690
EV583S
EV581G
Machine dimensions (LxWxH)
10800x1070x1710
7700x 1070x0710
7350x950x1610
6930x950x1610
Power
22.4 Kw
18.4 Kw
16.3 Kw
18.3 Kw
Feed speed
20-26 m/min
20-26 m/min
16-23 m/min
16-23 m/min
Electrics
380V / 50Hz / 200Hz
380V / 50Hz / 200Hz
Edge thickness
0.4 - 3 mm
0.4 - 3 mm
Workpiece thickness
12 - 60 mm
12 - 60 mm
Workpiece length
Min. 150 mm
Min. 150 mm
Workpiece width
Min. 60 mm
Min. 60 mm
Minimum workpiece dimensions
300mm x 60 mm or 150mm x 150mm
300mm x 60 mm or 150mm x 150mm
MODEL
EV581
EV582
EV580
Machine dimensions (LxWxH)
5920x950x1610
6180x950x1610
5035x950x1610
Power
14 Kw
12.3 Kw
10 Kw
Feed speed
16-23 m/min
16-23 m/min
16-23 m/min
Electrics
380V / 50Hz / 200Hz
380V / 50Hz / 200Hz
Edge thickness
0.4 - 3 mm
0.4 - 3 mm
Workpiece thickness
12 - 60 mm
12 - 60 mm
Workpiece length
Min. 150 mm
Min. 150 mm
Workpiece width
Min. 60 mm
Min. 60 mm
Minimum workpiece dimensions
300mm x 60 mm or 150mm x 150mm
300mm x 60 mm or 150mm x 150mm
SERIES
Spray release agent
Pre-Milling
Gluing
End Trimming
Rough Trimming
Fine Trimming
Corner Trimming
R1 Trimming
R2 Trimming
Flat Trimming
Spray Cleaning Agent
Buffing
EV691G
• •
• (High Speed)
• (High Speed)
• (Air Cylinder Controlled)
EV690
• (High Speed)
• (Air Cylinder Controlled)
EV583S
EV581G
• •
EV581G
EV582
EV580
