EP330H – Rear-Feeding Panel Saw

Features

Precision helical rack and pinion drives ensure smooth and dynamic running even at the highest speeds, at the same time reducing noise to the minimum.
main saw motor is linked to the saws by V-ribbed belt that results in the clean precision cut.
Cutting is automatically adjusted to the size of the panels according to the value set-dramatically reduces the cycle time.
Saw blades are easy to be loaded and unloadedin an efficient manner.
The main saw and the scoring saw with electronic lift feed on linear guide that obtains lasting straight-line precision and rigidity and guarantees excellent cutting finish.

The rear lifting table is constructed in a way to sustain heavy load while maintain a steady raise.
There are sensors to detect stack height and automatically adjust the lifting table.
Panels are fed from the side to maximize floor space.

Panel Production Process

Applications

Aggregates and Add-Ons

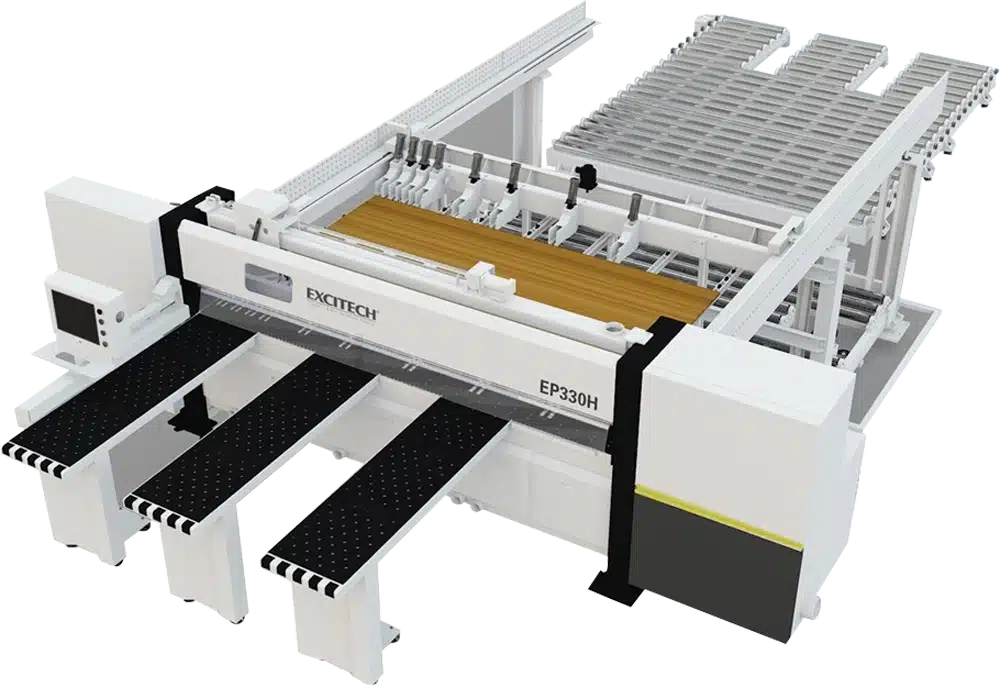

EP330H Rear-Feeding Panel Saw

Panel saw with rear feeding system greatly reduces cycle time, resulting in higher efficiency as well as output. The fully automatic lifting system and infeed clamps work together to eliminate the need for operator intervention.

Spesifikasi EP330H - Rear-Feeding Panel Saw

	EP330H (Rear Feeding)
Cutting dimension (lengthwidthheight)	3300 x 3300 x 80 mm
Saw carriage speed	5-80 m/min
Main saw motor	15 KW
Scoring saw motor	2.2 KW
Main saw dimension	380 x 4.4 x 60 mm
Scoring saw dimension	180 x 4.4-5.4 x 45 mm
Air consumption	150 L/min
Loading speed	13 m/min
Max feed size	3050 x 1550 mm
Max stack height	630 mm
