Model Code Letter:
D : Disc
N : Normal
U : Cross
O : Oscillating
W : Wire
F : Fiber
E : Edge
Disc Unit (D)
Spiral Wheel (Special Request)
Straight / Normal Wheel (N)

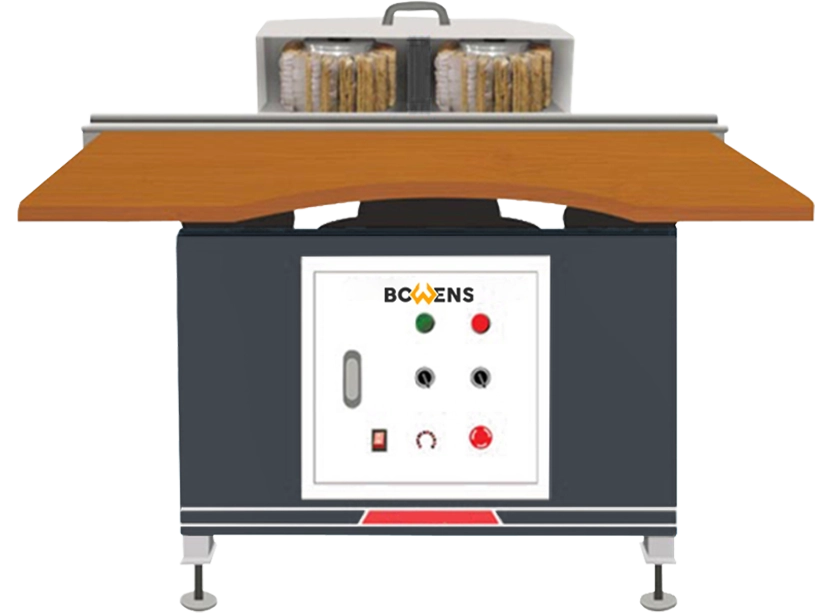

HK-BS2ST
V2 Brush Edge Sander
Specification HK-BS2ST
| Model | HK-BS2ST |
|---|---|
| Operating voltage | 1 phase - 220 V +- 5%/50Hz |
| Working thickness | 5 - 80 mm |
| Table dimension (W x L) | 500 x 1200 mm |
| Working table height | 800 - 980 mm |
| Sanding spindle speed | 200 - 500 rpm |
| Main motor | 2 x 0.37 kW - 4P |
| Lifting speed | 5 mm/s |
| Hoisting motor | 0.1 kW |
| Tilt angle | 0 - 45° |
| Dust extraction hood | ⌀90 |
| Air volume / Dust extraction | 690 m3/h |
| Machine size (L x W x H) | 1000 x 1200 x 1100 mm |
| Machine weight | 180 kg |
| Total power | 0.94 kW |

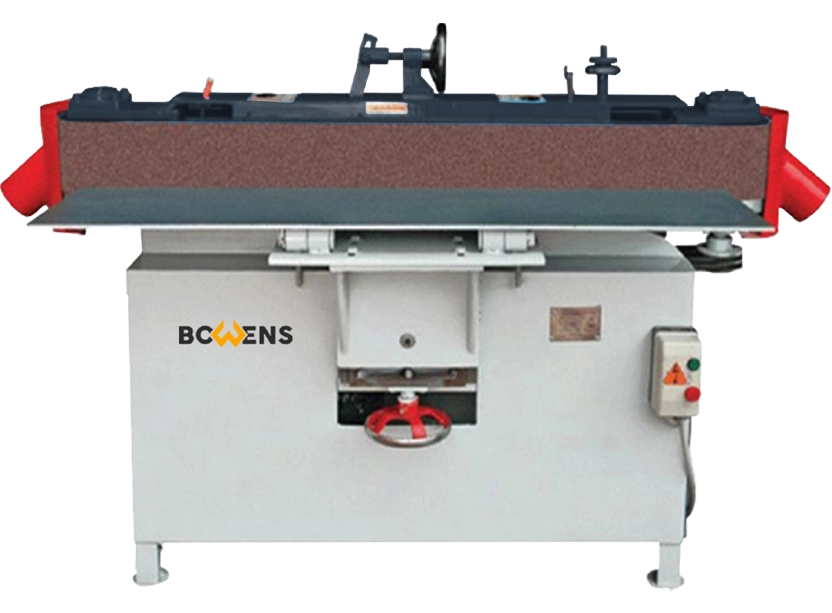

HK-OE12
Oscillating Edge Belt Sander Machine 120
Specification HK-OE12
| Model | HK-OE12 |
|---|---|
| Opereating voltage | 3 phase - 380V +- 5%/50Hz |
| Working height | 150 mm |
| Working length | 1200 mm |
| Table dimensions (W x L) | 300 x 1200 mm |
| Number of table | 2 unit |
| Adjust angle of tables | +- 30° |
| Rotating speed of sanding spindle | 1400 rpm |
| Size of abrasive belt | 6 x 130 inch (152.4 x 3302 mm) |
| Motor | 3.75 kW - 3 Phase - 4P |
| Dust outlet diameter | 2 x ⌀100 mm |
| Air volume / Dust extraction | 1700 m3/h |
| Machine dimensions (L x W x H) | 1900 x 920 x 1200 mm |
| Machine net weight | 460 kg |
