Easy Feeder

Home > Product > Brand > Comatic

Easy Feeder front
Easy Feeder back
Easy Feeder 1

Cutting Edge Innovation – DC brushess servo motor
High effiicient – More power, more torque
Environmental friendly – save over 50% power output than same size power feeders
Cost saving – continuously earning back cost from the energy saved annually

Easy Feeder 2

Inclinable feeding adjustment indicator

Easy Feeder 3

Inclined feeding

Easy Feeder 4

Detachable Inner roller prevent possible blade damage to the workpiece

Easy Feeder 5

Detachable Outer roller allows extra space for router

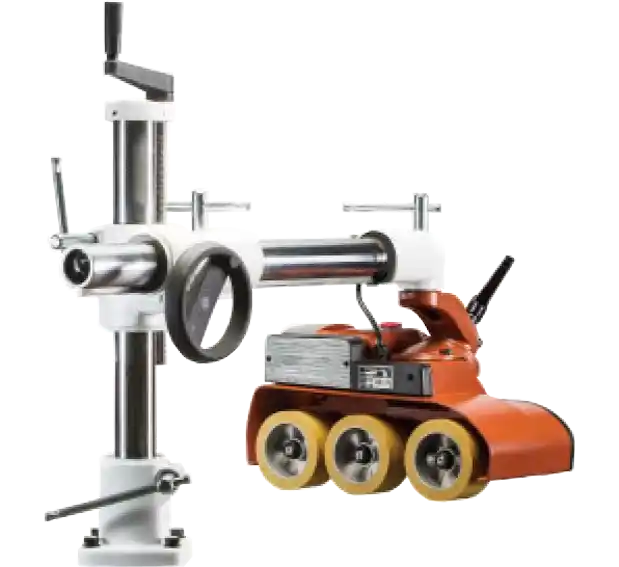

DC-30

DC-30

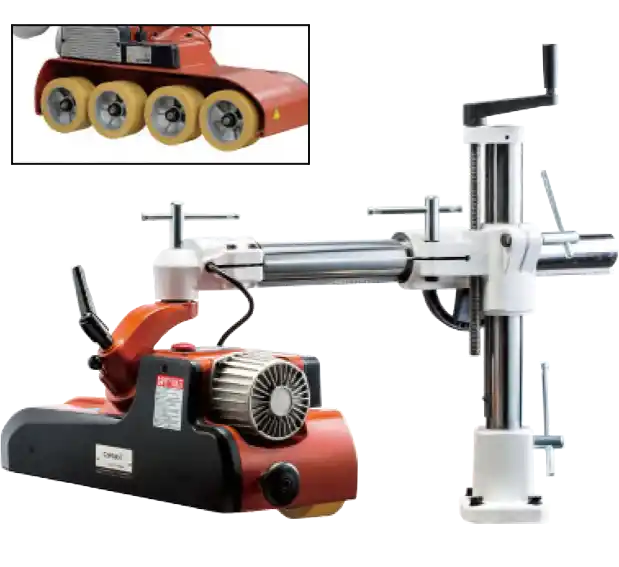

DC-40

DC-40

DC-30 - 1

RU21 Separated Roller (120Dia. x 25 mm W) optional

DC-30 - 2

GR121 ROLLER (120Dia. x 60 mm W) standard roller

DC-40 - 1

SL02 Swivel Kit Interchangeable (optional)

MODEL
DC30
DC40
Voltage
100-120V/1 phase, 200-240V/1 or 3 phase,
380-420V/3 phase
100-120V/1 phase, 200-240V/1 or 3 phase,
380-420V/3 phase
Roller size
Ø120 x 60 mm / Ø120 x 25 mm
Ø120 x 60 mm / Ø120 x 25 mm
Roller
3
4
Feeding speed
2-22 M/min (7-72 FPM)
2-22 M/min (7-72 FPM)
Max. power output
400W
400W
Horsepower
1/2 HP
1/2 HP
Packing size
Body : 588 x 356 x 306 mm ( 23" x 12-3/4" x 12" )
Stand : 770 x 320 x 290 mm ( 30-3/8" x 12-5/8" x 11-1/2" )
Body : 685 x 326 x 316 mm (27" x 12-3/4" x 12-3/8")
Stand : 770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
Net weight
23 kg (51Lb) 30 kg (66Lb)
26 kg (57Lb) 30 kg (66Lb)
Gross weight
25 kg (55Lb) 32kg (72Lb)
28 kg (62Lb) 32kg (72Lb)
Machine body
490 Sets / 20ft container
392 Sets / 20ft container
Body + stand
224 Sets / 240ft container
205 sets / 20ft container
AF32 – Light Duty

M3 – Light Duty

Baby Feeder

Small, lightweight, Economical and Versatile. Patented 3-D adjutable

M3 – Light Duty

AF32 – Light Duty

Junior Feeder
Model
M3
AF32
Horsepower / Rotation
1/8 HP (0.094KW), 1 phase only; Forward / reverse
1/4 HP (0.188 KW), 1 or 3 phase; Forward / reverse
Range of speeds
(50Hz)/(60Hz)
2 - 2 M/min (6.5 - 40 FPM)
50 Hz : 5/6.5/8/11 M/min (16/21/26/36 FPM)
60 Hz : 6/8/10/13 M/min (20/26/33/43 FPM)
Rollers (belts)
Ø76 x 30 mm x 3 pcs (Ø3" x 1-3/16" x 3 pcs) / PU
Ø80 x 30 mm x3 pcs
(Ø3-1/8" x 1-3/16" x 3pcs) / Synthetic rubber
Roller suspension
8.3 mm (5/16")
18 mm (3/4")
Net weight
10.5 Kg (23 Lb)
33 Kg (73 Lb)
Gross weight
12 Kg (26 Lb)
35 Kg (77 Lb)
Carton for body
560 x 280 x 230 mm (22 x 11" x 9")
580 x 580 x 280 mm (22-7/8" x 22-7/8" x 11")
20' container loading
840 Sets (840 Cartons)
320 Sets (320 cartons)
AF308 - Medium Duty

AF308 – Medium Duty

Cabinet Feeder

Ideal for cabinet works & combining machine

AF04 - Medium Duty

AF04 – Medium Duty

Track Feeder

Special for Shorter piece or extra
Heavy-duty work

Model
AF308
AF04
Horsepower / Rotation
1/2 HP (0.375 KW), 1 or 3 phase; Forward / reverse
1 HP (0.75 KW), 1 or 3 phase; Forward / reverse
Range of speeds
(50Hz)/(60Hz)
3 PH : 3/4.5/6/7.5/9/11.5/15/23 M/min ;
1 PH : 3/4.5/7.5/11.5 M/min
(3 PH : 9.5/15/19/25/30/38/50/76 FPM ;
1 PH : 9.5/15/25/38 FPM)
50 Hz : 4/8/10/20 M/min (13/26/33/66 FPM) ;
60 Hz : 4/8/10/20 M/min (13/26/33/66 FPM)
Optional Speeds (with
extra gear set)
3/6/14/28 M/min (10/20/46/92 FPM)
Rollers (belts)
Ø100 x 50 mm x3 pcs
(Ø4" x 2" x 3pcs) / Synthetic rubber
1118 x 12.7 mm x3 pcs
(44" x 1/2" x 3pcs) / Synthetic rubber
Roller suspension
24 mm (15/16")
20 mm (3/4")
Net weight
25 + 20 Kg (55 + 44 Lb)
30 + 34 Kg (66 + 75 Lb)
Gross weight
27 + 22 Kg (59 + 49 Lb)
32 + 36 Kg (70 + 79 Lb)
Carton for body
520 x 470 x 260 mm (20-1/2" x 18-1/2" x 10-1/4")
770 x 560 x 290 mm (30-3/8" x 22" x 11-1/2")
Carton for stand
770 x 230 x 260 mm (30-3/8" x 9" x 10-1/4")
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
20' container loading
276 Sets (552 cartons)
150 Sets (300 cartons)
AF34 - Heavy Duty

AF34 – Heavy Duty

Stock Feeder – 3 Rollers, 4 Speeds
AF44 - Heavy Duty

AF44 – Heavy Duty

Stock Feeder – 4 Rollers, 4 Speeds
Model
AF34
AF44
Horsepower / Rotation
1 HP (0.75 KW), 1 or 3 phase; Forward / reverse
1 HP (0.75 KW), 1 or 3 phase; Forward / reverse
Range of speeds
(50Hz)/(60Hz)
4/8/10/20 M/min (13/26/33/66 FPM)
4/8/10/20 M/min (13/26/33/66 FPM)
Optional Speeds
(with extra gear set)
3/6/13/26 M/min (10/20/43/85 FPM)
3/6/13/26 M/min (10/20/43/85 FPM)
Rollers (belts)
Ø120 x 60 mm x 3 pcs
(Ø4-3/4" x 2-3/8" x 3pcs) / Synthetic rubber
Ø120 x 60 mm x 4 pcs
(Ø4-3/4" x 2-3/8" x 4pcs) / Synthetic rubber
Roller suspension
18 mm (3/4")
18 mm (3/4")
Net weight
27 + 34 Kg (59 + 75 Lb)
32 + 34 Kg (70 + 75 Lb)
Gross weight
29 + 36 Kg (64 + 79 Lb)
34 + 36 Kg (75 + 79 Lb)
Carton for body
560 x 540 x 290 mm (22" x 21-1/4" x 11-1/2")
770 x 560 x 290 mm (30-3/8" x 22" x 11-1/2")
Carton for stand
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
20' container loading
185 Sets (370 cartons)
150 Sets (300 cartons)
AF38 - Heavy Duty

AF38 – Heavy Duty

Stock Feeder – 3 Rollers, 8 Speeds
AF48 - Heavy Duty

AF48 – Heavy Duty

Stock Feeder – 4 Rollers, 8 Speeds
Model
AF38
AF48
Horsepower / Rotation
1 HP (0.75 KW), 1 or 3 phase; Forward / reverse
1 HP (0.75 KW), 1 or 3 phase; Forward / reverse
Range of speeds
(50Hz)/(60Hz)
2/4/5.5/7/11/13/16.5/33 M/min (6.5/13/18/22/36/43/55/108 FPM)
2/4/5.5/7/11/13/16.5/33 M/min (6.5/13/18/22/36/43/55/108 FPM)
Optional Speeds
(with extra gear set)
1.5/3/5/7/9.5/13/21/41 M/min
(5/9.5/15/23/31/42/69/134 FPM)
1.5/3/5/7/9.5/13/21/41 M/min
(5/9.5/15/23/31/42/69/134 FPM)
Rollers (belts)
Ø120 x 60 mm x 3 pcs
(Ø4-3/4" x 2-3/8" x 3pcs) / Synthetic rubber
Ø120 x 60 mm x 4pcs
(Ø4-3/4" x 2-3/8" x 4pcs) / Synthetic rubber
Roller suspension
18 mm (3/4")
18 mm (3/4")
Net weight
29 + 34 Kg (64 + 75 Lb)
34 + 34 Kg (75 + 75 Lb)
Gross weight
31 + 36 Kg (68 + 79 Lb)
36 + 36 Kg (79 + 79 Lb)
Carton for body
560 x 540 x 290 mm (22" x 21-1/4" x 11-1/2")
770 x 560 x 290 mm (30-3/8" x 22" x 11-1/2")
Carton for stand
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
20' container loading
185 Sets (370 cartons)
150 Sets (300 cartons)
AF14 - Heavy Duty

AF14 – Heavy Duty

Copying Feeder

Ideal for circumference profiling or edge banding

Model
AF14
Horsepower / Rotation
1/2 HP (0.375 KW), 1 or 3 phase; Forward / reverse
Range of speeds
(50Hz)/(60Hz)
50 Hz : 2/3/4/6/7/10/15/20 M/min
(7/9.5/14/19/24/32/48.5/63.5 FPM)
60 Hz : 2/2.5/4/5/7/9/14/18.5 M/min
(7/9/14/18/23/30/46/60 FPM)
Optional Speeds
(with extra gear set)
•
Rollers (belts)
Ø180 x 40 mm x 1pcs (Ø7" x 1-9/16" x 1pcs) / PU
Roller suspension
25 mm (1")
Net weight
20 + 34 Kg (44 + 75 Lb)
Gross weight
22 + 36 Kg (49 + 75 Lb)
Carton for body
560 x 540 x 290 mm (22" x 21-1/4" x 11-1/2")
Carton for stand
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
20' container loading
185 Sets (370 cartons)
AF19 - AF19N - Heavy Duty

AF19 | AF19N – Heavy Duty

Resaw Feeder

ideal for resaw over 600 mm (24”) AF19N (AF19 with pneumatic)

Model
AF19
Horsepower / Rotation
1/2 HP (0.375 KW), 1 or 3 phase; Forward
Range of speeds
(50Hz)/(60Hz)
50 Hz : 1/2/2/3.5/4/6/7/7.5/12/15 M/min (3.5/7/7/11/14/20/22/25/40/50 FPM)
60 Hz : 1.5/2.5/2.5/4/5/7.5/8/9/15/18 M/min (4/8.5/8.5/14/17/25/28/30/50/60 FPM)
Rollers (belts)
Ø175 x 40 mm x 2pcs (Ø6-7/8" x 1-9/16" x 2pcs) /
Cast Steel (optional with PU roller)
Max. roller-blade
clearance
210 mm (8-1/4")
Net weight
79 Kg (176 Lb)
Gross weight
97 Kg (209 Lb)
Packing size
1220 x 480 x 470 mm (48" x 18-7/8" x 18-1/2")
20' container loading
125 Sets (125 Wooden Cases)
DS300 - Heavy Duty

DS300 – Heavy Duty

Easy Feeder
DS400 - Heavy Duty

DS400 – Heavy Duty

Easy Feeder
Model
DS300
DS400
Horsepower / Rotation
0.5 HP (0.4 KW), 1 or 3 PH; Forward / reverse
0.5 HP (0.4 KW), 1 or 3 PH; Forward / reverse
Range of speeds
(50Hz)/(60Hz)
2-22 M/min (7-72 FPM)
2-22 M/min (7-72 FPM)
Rollers (belts)
Ø120 x 25 mm x 6pcs (Ø4.8" x 1" x 6pcs) / PC
Ø120 x 25 mm x 6pcs (Ø4.8" x 1" x 8pcs) / PC
Roller suspension
18 mm (3/4")
18 mm (3/4")
Net weight
19 + 41 + 10 Kg (42 + 91 + 22 Lb)
23 + 41 + 10 Kg (51 + 91 + 22 Lb)
Gross weight
21 + 43 + 11 Kg (47 + 95 + 24 Lb)
25 + 43 + 11 Kg (55 + 95 + 24 Lb)
Carton for body
588 x 326 x 306 mm (23" x 12-3/4" x 12")
686 x 326 x 316 mm (27" x 12-3/4" x 12-3/8")
Carton for stand
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
Carton for overarm
1080 x 60 x 60 mm (42-1/8" x 2-3/8" x 2-3/8")
1080 x 60 x 60 mm (42-1/8" x 2-3/8" x 2-3/8")
20' container loading
224 Sets (672 cartons)
205 Sets (615 cartons)

Universal Stand

Smart Stand

US01 - Light Duty

US01 – Light Duty

US02 - Medium Duty

US02 – Medium Duty

US03 - Heavy Duty

US03 – Heavy Duty

Smart Stand

Quick Holder

Quick Holder 1

QH01
Boring-Free & Quick-Mount
Apllicable for all Light-Duty Models : M3, AF32

AF32 on a Shaper

AF32 on a Shaper

M3 on a Shaper

M3 on a Shaper

M3 on a Router table

M3 on a Router table
