E9

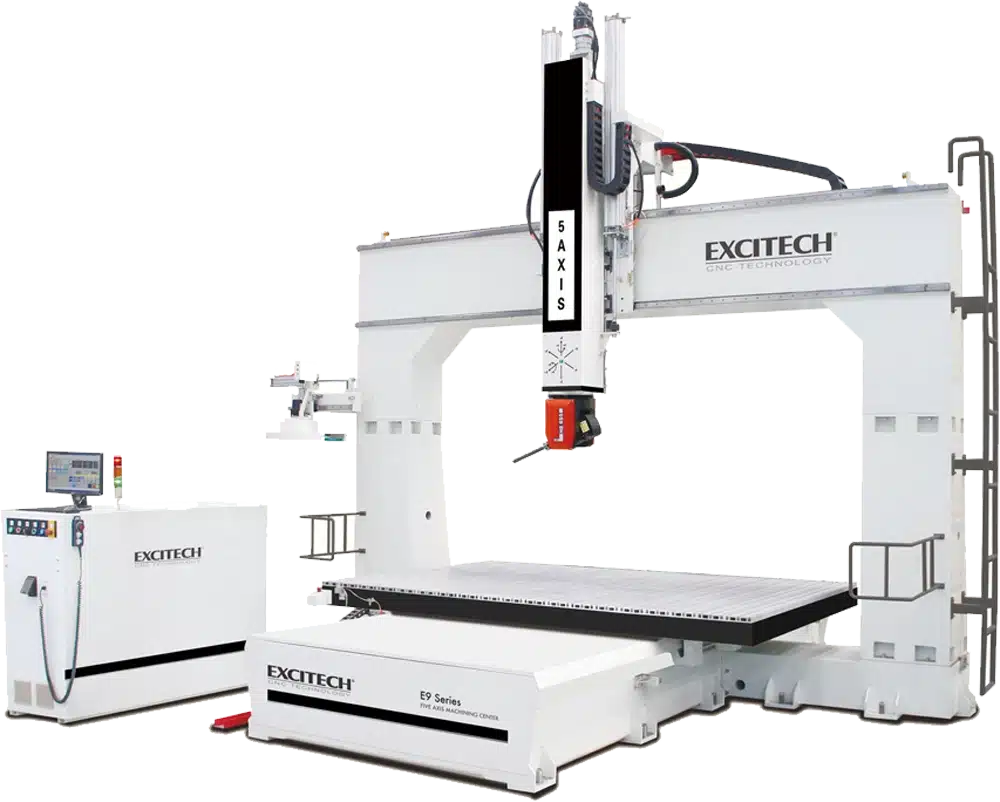

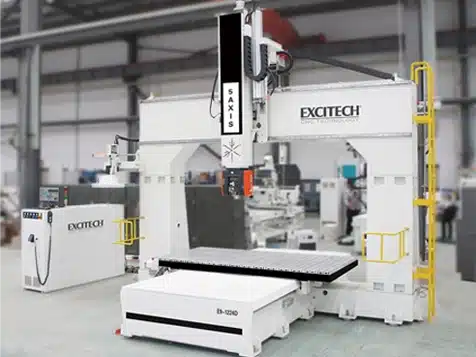

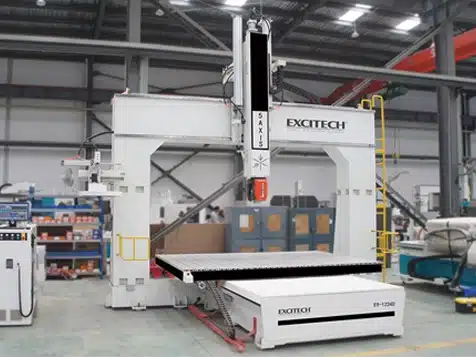

Venture Five Axis Machining Center

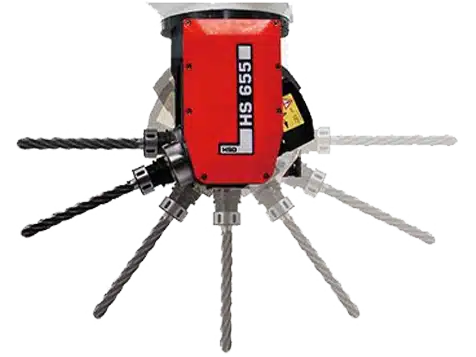

Italian HSD Spindle
Japanese THK Linear Guide Rail

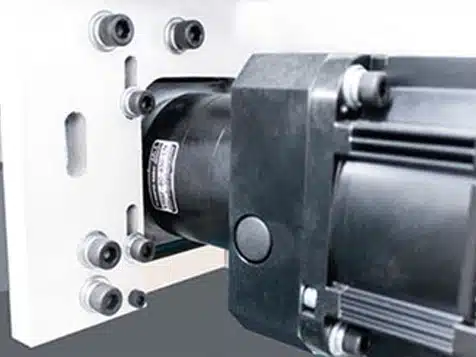

Japanese Shimpo Planetary Gear Box
Italian OSAI Controller

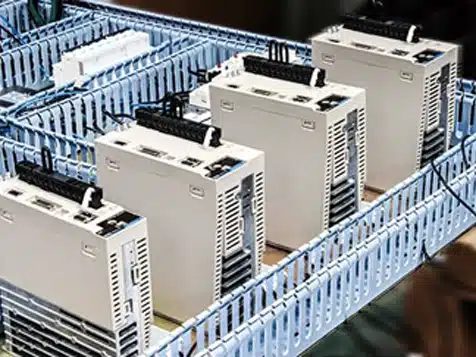

Japanese Driving System

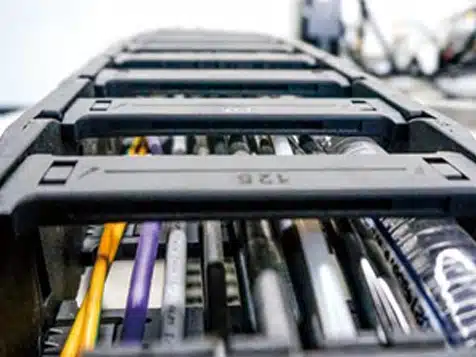

German Cable Conductor
Specification E9
| Model | E9-1224 | E9-1530 | E9-2030 |
|---|---|---|---|
| Table size | 1200 x 2400 mm | 1500 x 3000 mm | 2000 x 3000 mm |
| Traveling size | 1850 x 3100 x 950 / 1300 mm | 2150 x 3700 x 950 / 1300 mm | 2650 x 3700 x 1300 / 1800 mm |
| Dimension | 5500 x 6100 x 4850 / 5550 mm | 5900 x 6900 x 4850 / 5550 mm | 6400 x 6900 x 5550 / 6550 mm |
| Net weight | 7000 kg | 8000 kg | 9000 kg |
| A/C axis | A: ± 120° C: ± 245° | ||
| Spindle power | 10 / 15 kW | ||
| Spindle speed | 24000 r/min | ||
| Traveling speed | 60 / 60 / 20 m/min | ||
| Working speed | 20 m/min | ||
| Tool magazine | Carousel | ||
| Driving system | Yaskawa | ||
| Power | 27 kW | ||
