E8

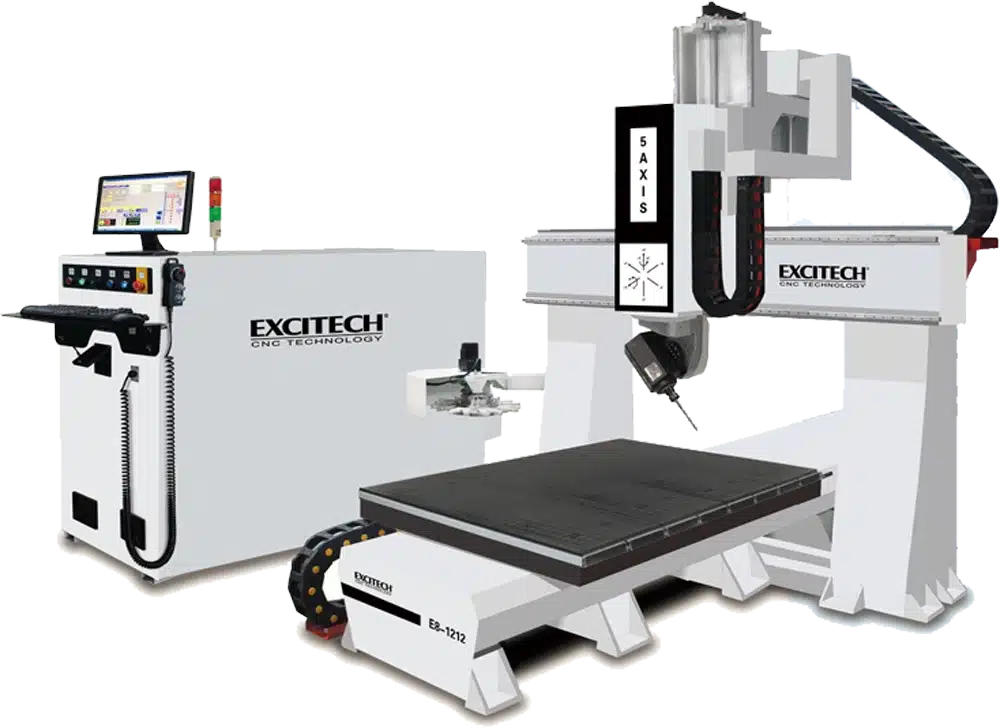

Mini Five Axis Machining Center
An entry level five axis machining center with world top class controller designed for the most demanding processing requirements, featuring maximum precision, and all round excellence.

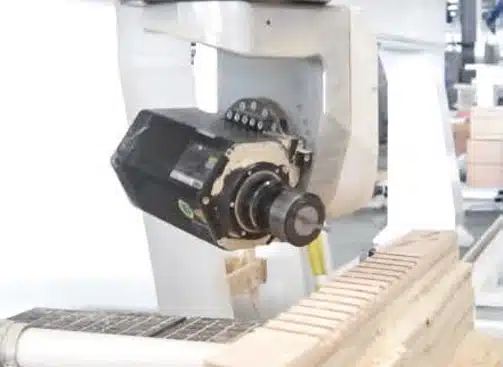

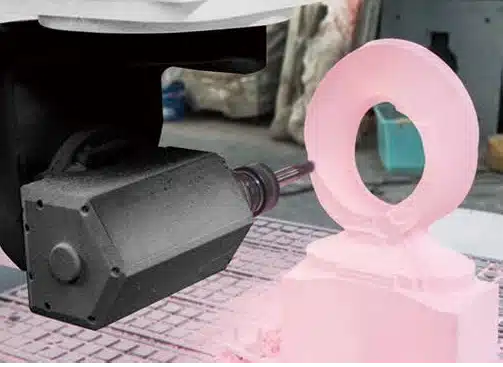

CNC machining center with 5 synchronizing interpolated axes; Real Time Tool Center Point Rotation (RTCP), well suited for 3D processing.

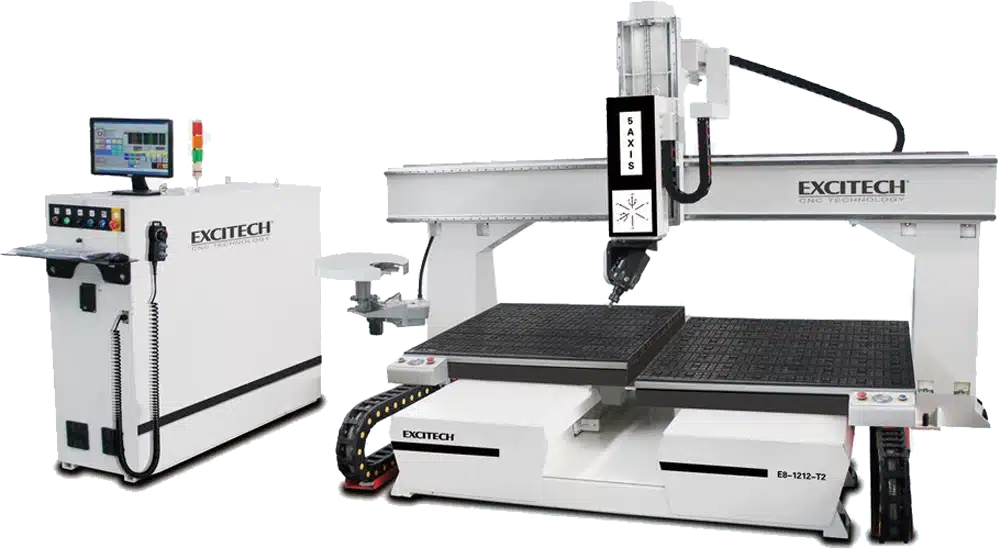

Twin Table Optional
Twin table design doubles the productive efficiency by allowing loading and unloading operations on one station without interrupting the work cycle.
Specification E8
| Model | E8-1212 | E8-1224 |
|---|---|---|
| Table size | 1200 x 1200 mm | 1200 x 2400 mm |
| Traveling size | 1720 x 1820 x 750 mm | 1720 x 3040 x 750 mm |
| Dimension | 3600 x 4300 x 2700 mm | 4800 x 4300 x 2700 mm |
| Net weight | 3000 kg | 3800 kg |
| A/C axis | A: ± 185° C: ± 320° | |
| Spindle power | 8.5 kW | |
| Spindle speed | 24000 r/min | |
| Traveling speed | 60 / 60 / 20 m/min | |
| Working speed | 20 m/min | |
| Tool magazine | Carousel | |
| Driving system | Yaskawa | |
| Power | 16 kW | |
