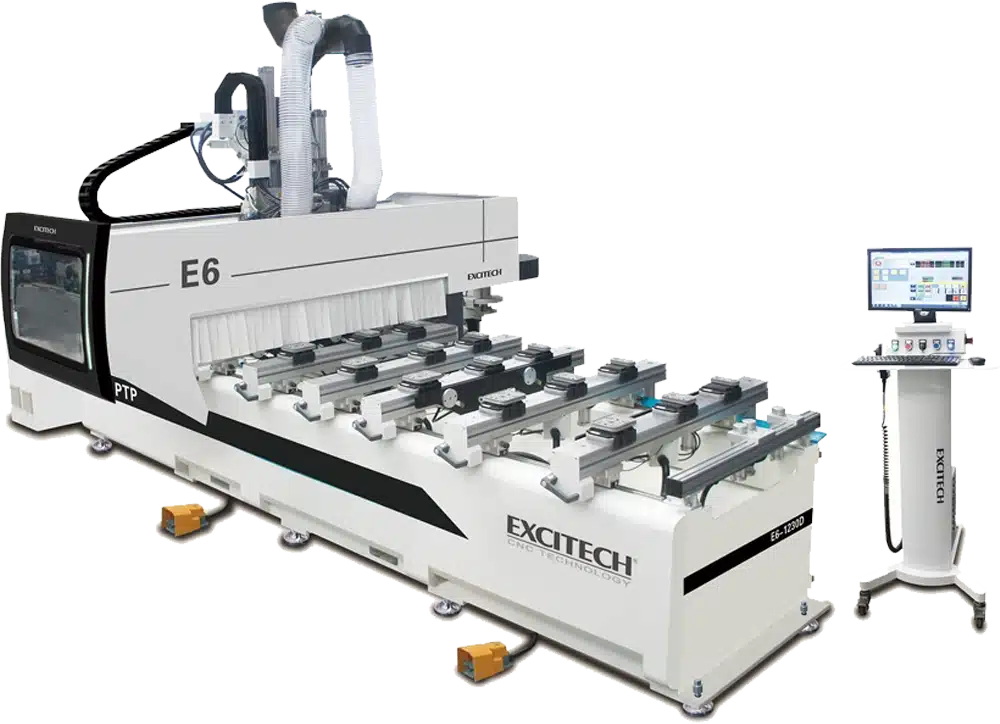

E6
PTP Work Center
18 moveable vacuum cups, in 3 different sizes to work with various panel sizes
9* Standard Suction Cup
6* Medium Suction Cup
3* Small Suction Cup

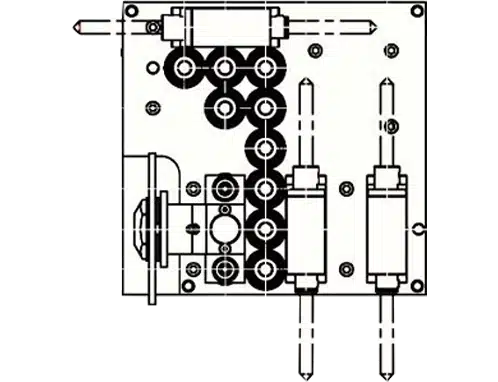

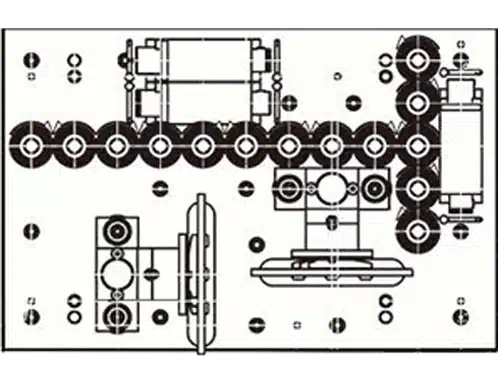

9 vertical + 6 horizontal + 1 saw blade
Optional 14 vertical + 6 horizontal + 2 saw blade
Features
- An all rounder work center suitable for drilling, routering, sawing and other applications.
- Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as weel as other non-metal and soft metal applications.
- Double work zones guarantee non stop work cyclem operator can load and unload workpiece on one zone without interrupting the machine operation on the other.
- Features world’s first class components and strict machining procedures. The enclosure over the gantry with LED light strip for display of the machine status prevents flying out of materials and greatly enhances safety.
- The operator needs only to scan the barcode and the machine will carry out the job automatically.
Truly Versatile

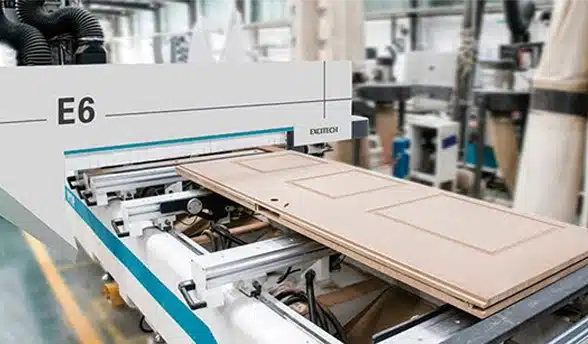

This machine is also commonly used to manufacture solid wood door. You have the option to upgrade to a more powerful spindle and to use heavy duty aggregates to perform the job required.

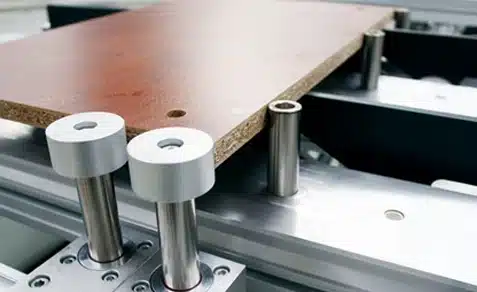

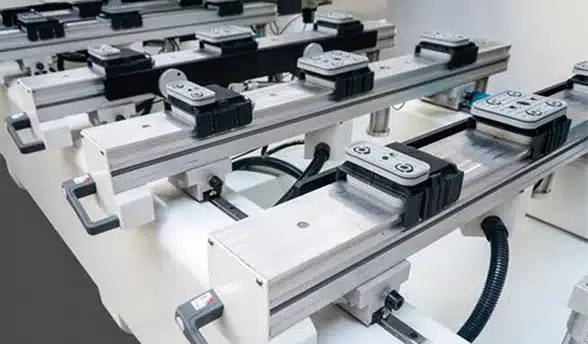

Pod and rail table that is divided into 2 work zones. This machine is mainly used to make solid wood door or for panel processing.

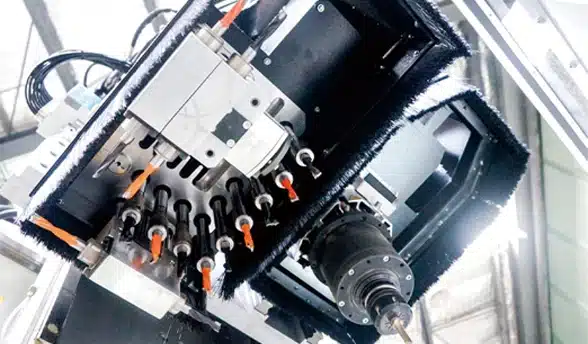

HSD Spindle: 9 kW
(Higher power available upon request)
Italian drill bank: 9 vertical + horizontal + 1 saw drills

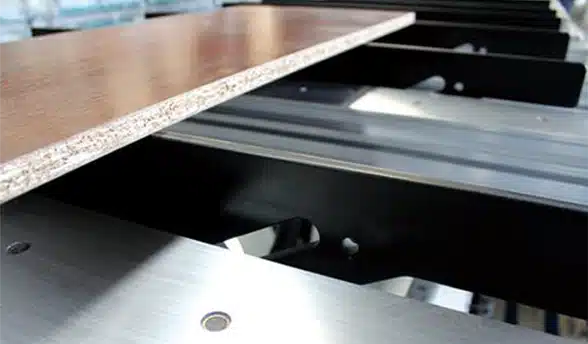

This aluminum protrusion located at the end of the machine helps the operator to slide the workpiece on with ease.
Dimension of PTP Work Center
Specification E6
| Model | E6-1230D | E6-1252D |
|---|---|---|
| Traveling size | 3400 x 1640 x 250 mm | 5500 x 1640 x 250 mm |
| Working size | 3060 x 1260 x 100 mm | 5200 x 1260 x 100 mm |
| Table size | 3060 x 1200 mm | 5200 x 1200 mm |
| Net weight | 3300 kg | 3800 kg |
| Transmission | X / Y rack and pinion drive, Z ball screw drive | |
| Table structure | Pods and rails | |
| Spindle power | 9 / 12.0 kW | |
| Spindle speed | 24000 r/min | |
| Traveling speed | 80 m/min | |
| Working speed | 20 m/min | |
| Tool magazine | Carousel | |
| Tool slots | 8 | |
| Drill bank config | 9 vertical + 6 horizontal + 1 saw blade | |
| Driving system | Yaskawa / Excitech | |
| Voltage | AC 380 / 3 PH . 50 Hz | |
| Power | 26.3 kW | |
| Controller | OSAI / Syntec / Excitech | |
