E3 Series

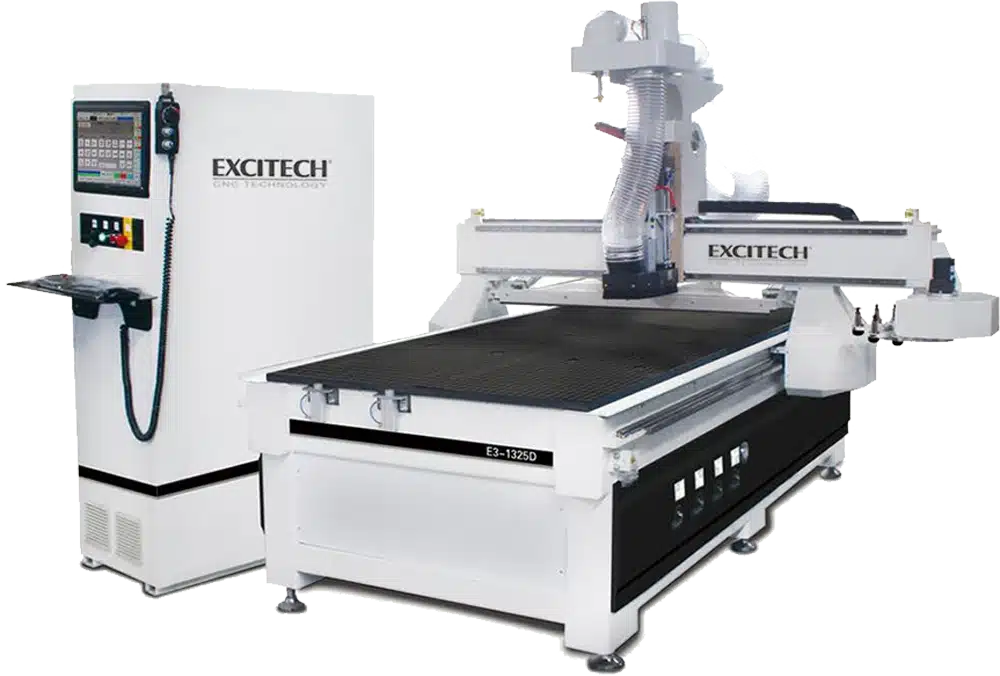

Venture Work Center
- An entry level work center, an extraordinary solution with competitive price
- Versatile functions: routing, drilling, cutting, side-milling, edge chamfering, etc.
- Pusher function available upon request.

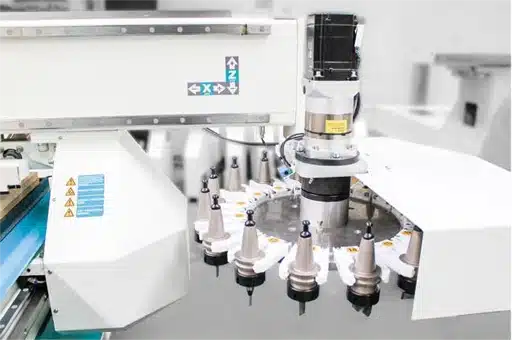

Servo tool changer with 12/16 slots available upon request. Tool changing is faster and more accurate. A more efficient option for those who work with a multitude of different tools, such as the cabinet door manufacturing.
Specification Venture Work Center
| Model | E3-1325D | E3-1530D | E3-2030 | E3-2040D |
|---|---|---|---|---|
| Traveling size | 2500 x 1260 x 200 mm | 3100 x 1570 x 200 mm | 3100 x 2060 x 200 mm | 4030 x 2060 x 200 mm |
| Working size | 2480 x 1230 x 180 mm | 3080 x 1560 x 180 mm | 3080 x 2050 x 180 mm | 4000 x 2050 x 180 mm |
| Table size | 2500 x 1230 mm | 3100 x 1560 mm | 3100 x 2050 mm | 4030 x 2050 mm |
| Optional working length | - | - | 2850 / 5000 / 6000 mm | 2850 / 5000 / 6000 mm |
| Net weight | 1500 kg | 2000 kg | 2300 kg | 2800 kg |
| Transmission | X/Y rack and pinion drive, Z ball screw drive | |||
| Table structure | Vacuum table | |||
| Spindle power | 9 kW | |||
| Spindle speed | 24000 r/min | |||
| Traveling speed | 45 m/min | |||
| Working speed | 20 m/min | |||
| Tool magazine | Carousel | |||
| Tool slots | 12/8/2016 | |||
| Driving system | Yaskawa / Excitech | |||
| Voltage | AC380 / 3 PH / 50 Hz | |||
| Power | 19.3 kW | |||
| Controller | OSAI / Syntec / Excitech | |||
