Applicable materials: carbon fiber, reinforced plastics, composite, PMI foam, EPS, resin, phenolic, plastic, soft metal, and more
E10

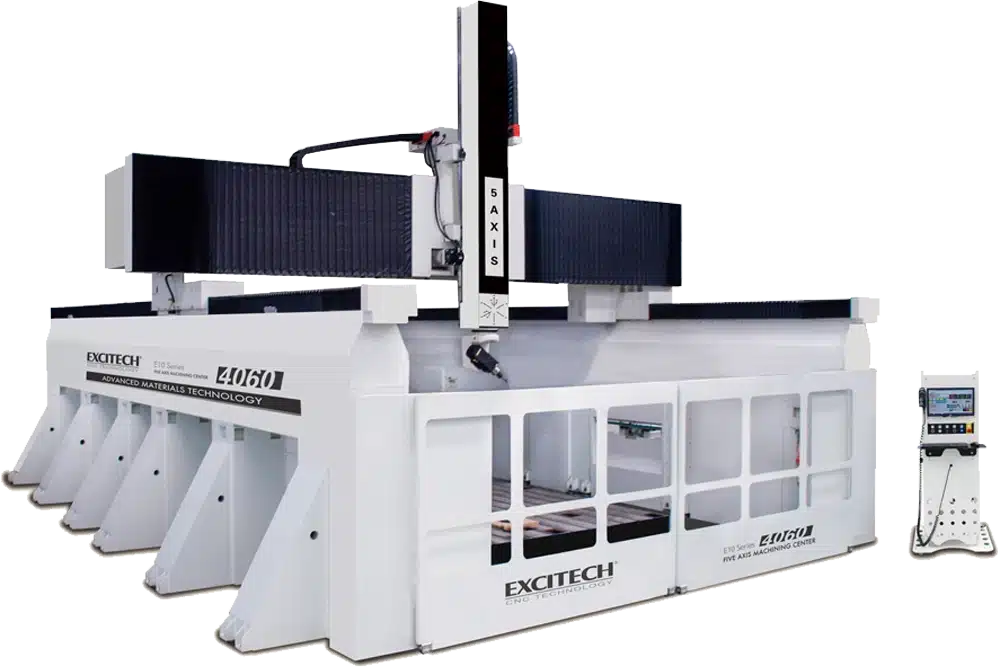

Vantage Five Axis Machining Center
Real time tool center point rotation Z axis height can be extended to cater for extra large and extra thick 3D processing.
Specification E10
| Model | E10-2040 | E10-4060 |
|---|---|---|
| Table size | 2000 x 4000 mm | 4000 x 6000 mm |
| Traveling size | 2700 x 4800 x 2000 / 2400 mm | 4700 x 6800 x 2000 / 2400 mm |
| Dimension | 6600 x 8000 x 6300 / 7100 mm | 9800 x 10600 x 6600 / 7400 mm |
| Net weight | 15000 kg | 35000 kg |
| A/C axis | A: ± 120° C: ± 245° | |
| Spindle power | 10 / 15 kW | |
| Spindle speed | 2400 r/min | |
| Traveling speed | 55 / 55 / 15 m/min | |
| Working speed | 20 m/min | |
| Tool magazine | Linear | |
| Driving system | Yaskawa | |
| Power | 42 kW | |
