Drum Sander
Salida’s rigid and reliable Drum Sander are designed to perform flat parts sanding for maximum cost-savings. The machines are compact, take up minimum floor space. Rigid construction and high quality component assure years of feability and trouble-free performance.
2 Sanding Drums SL-2524 25″ Sanding width,
4″ Sanding Thickness
Product Feature
- 2 sanding drums with 25 inches sanding width and 4 inches sanding thickness
- Equipped with high efficiency dust system.
- Thickness control switch ensures operation safety.
- Industrial grade conveyor belt provides smooth running and slip-free performance.
- Variable feeding speed (optional)
- This versatile drum sander is designed for sanding a wide variety of parts such as metal, non-metal, wood, pc board, etc.
2 Sanding Drums SL-3724 37″ Sanding width,
4″ Sanding Thickness
Product Feature
- 2 sanding drums with 37 inches sanding width and 4 inches sanding thickness.
- Equipped with high efficiency dust system.
- Thickness control switch ensures operation safety.
- Industrial grade conveyor belt provides smooth running and slip-free performance.
- Variable feeding speed (optional)
- This versatile drum sander is designed for sanding a wide variety of parts such as metal, non-metal, wood, pc board, etc.
2 Sanding Drums SL-5424 54″ Sanding width,
4″ Sanding Thickness
Product Feature
- 2 sanding drums with 54 inches sanding width and 4 inches sanding thickness
- Equipped with high efficiency dust system
- Thickness control switch ensures operation safety.
- Industrial grade conveyor belt provides smooth running and slip-free performance.
- Variable feeding speed (optional)
- This versatile drum sander is designed for sanding a wide variety of parts such as metal, non-metal, wood, pc board, etc.
Standard Features:
- Ruggedly constructed throughout assures maximum stability and minimum noise.
- Heavy gauge steel frame and conveyor table for maximum durability without deformation
- Conformity to CE standards certified by Nemko
- Equipped with high efficiency dust system
- Thickness limit control switch ensures operation safety
- Industrial grade conveyor belt provides smooth running and slipping-free performance.
- Sanding belt is specially wound for maximum security. Guaranteesno folding or breaking during sanding operations.
- Two sanding drums position may be micrometrically adjusted.
- 4 heavy duty jack screws provide solid support for conveyor table.
- Minimum sanding length 8” (203 mm)
- Thickness capacity on each sanding is 0.10-0.40 mm.
- Single or three phase motor for choise.
- Various sanding belts for choise #60, #80, #100, #150, #180, #240
- Variable feeding speed (optional)
Drum Sander

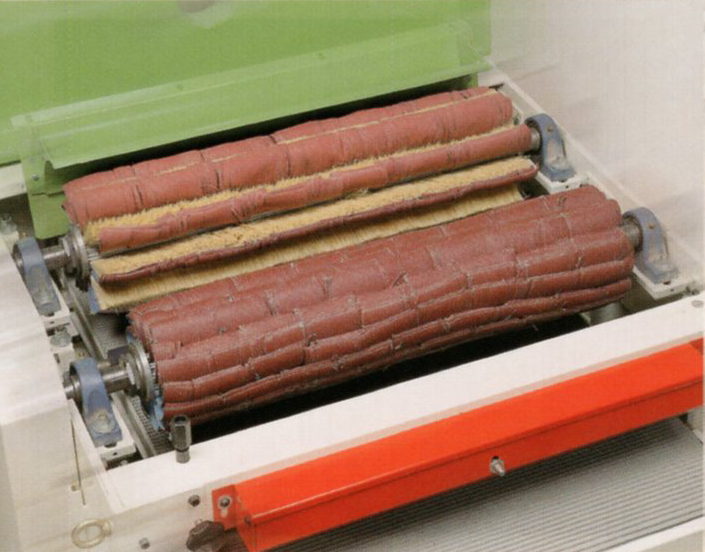

Profile Sander
Ideal for sanding metel and non metal This versatile drum sander is designed for sanding a wide variety of parts, such as metal, non-metal wood, and PC board etc. Also, excellent for efficient sanding for wood door frame, window, and stripe
An ideal unit for surface polishing on metal, non-metal and pc board Specially designed for high efficiency polishing on irregular surface, carving surface etc.
Various Configurations for Your Choice

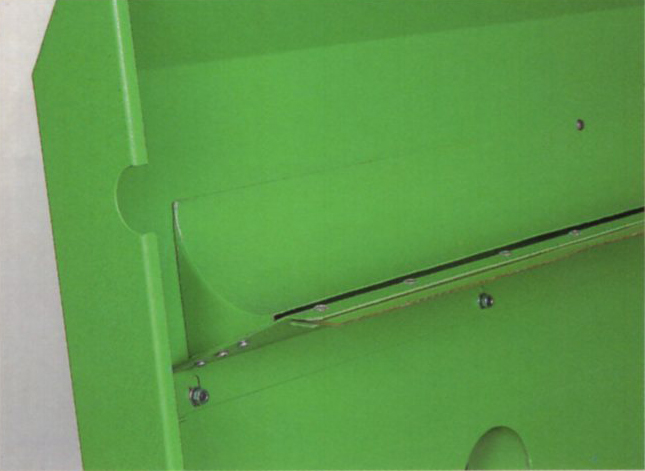

Efficient dust system design

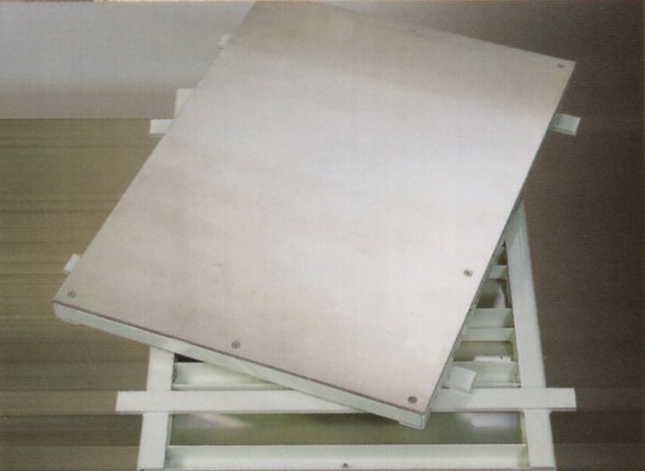

Metallic table on 25” model

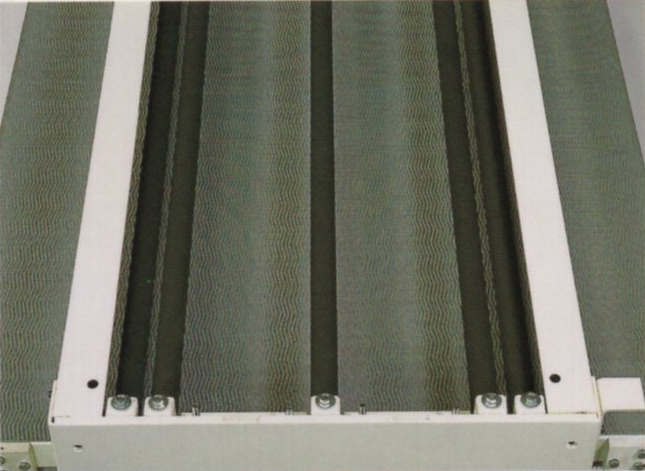

Specially designed five pressure rollers ensure safety and stability of sanding operation.

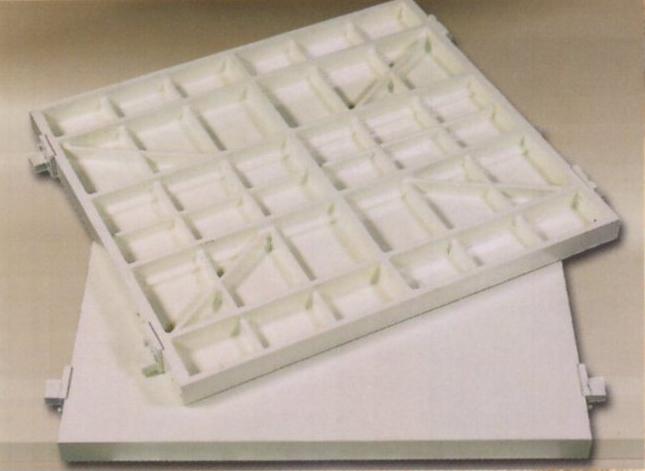

Rigid cast aluminium table on 37” and 54” model

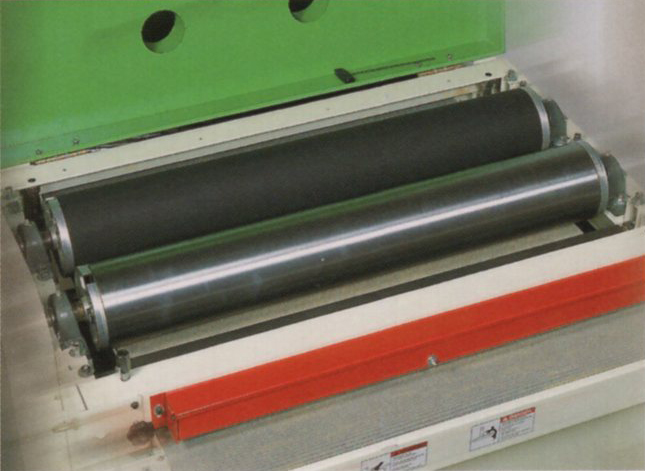

Two Sanding Drum Configuration The front steel drum provides smooth surface effect. The rear drum is rubber to create fine finish surface
Spesifikasi Drum Sander / Profile Sander
| MODEL | | | | | |
|---|---|---|---|---|---|
| Sanding Roller: | | | | | |
| Max. sanding width | | | | | |
| Max. sanding thickness | | | | | |
| Table dimension | (25"x25 1/4") | (25"x34 1/4") | (37"x25 1/4") | (37"x34 1/4") | (54"x38") |
| Sanding wheel diameter | | | | | |
| Speed of sanding wheel | | | | | |
| Feeding speed | | | | | |
| Sanding motor | | | | | |
| Feeding motor | | | | | |
| Overall dimension (DxWxH) | | | | | |
| Packing dimension (DxWxH) | | | | | |
| Net weight | | | | | |
| Gross weight | | | | | |
| MODEL | | | | | |
|---|---|---|---|---|---|
| Sanding Roller: | | | | | |
| Max. sanding width | | | | | |
| Max. sanding thickness | | | | | |
| Table dimension | (25" x 25 1/4") | (25" x 34 1/4") | (37" x 25 1/4") | (37" x 34 1/4") | (54" x 39 1/4") |
| Sanding wheel diameter | | | | | |
| Speed of sanding wheel | | | | | |
| Feeding speed | | | | | |
| Sanding motor | | | | | |
| Feeding motor | | | | | |
| Overall dimension (DxWxH) | | | | | |
| Packing dimension (DxWxH) | | | 53" x 34" x 45" | 53" x 46" x 45" | |
| Net weight | | | 550 lbs 250 KGS | 1014 lbs 460 KGS | |
| Gross weight | | | 639 lbs 290 KGS | 1146 lbs 520 KGS | |
