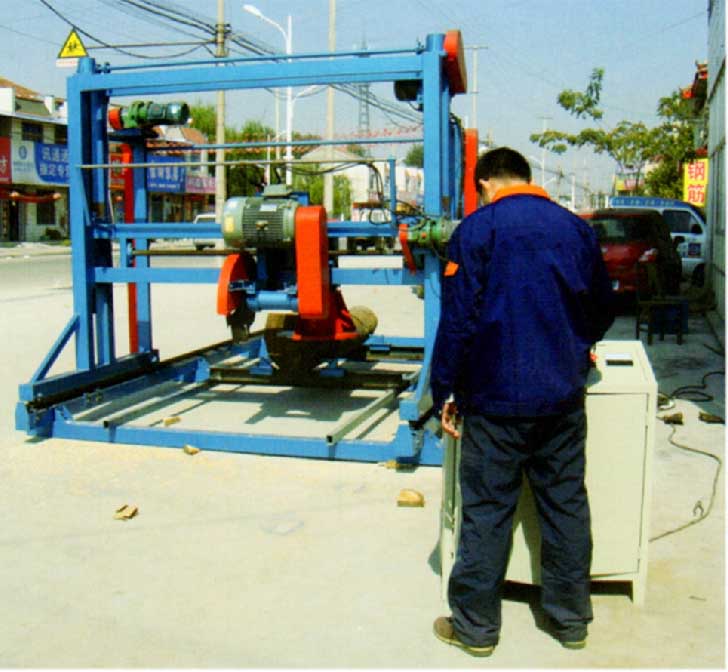

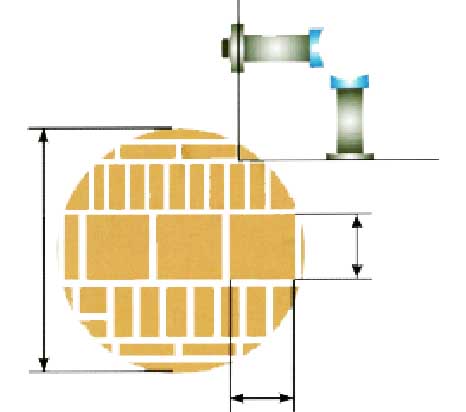

The saw machine is equipped with 2 alloy saw blades. The saw blade can cut horizontally and vertically so that we can get square wood at one time. The machine’s sawing size is set by the computer’s touch screen, and walking is controlled by the inverter. It is widely used for processing the wood into square, wood, and floor blanks.
DS700 / DS1300 / DS2000 Video
Kunjungi Youtube channel PT. Alpha Utama Mandiri untuk melihat berbagai macam update konten video mesin-mesin perkayuan terbaru.
Specification DS700 / DS1300 / DS2000
| MODEL | DS700 | DS1300 | DS2000 |
|---|---|---|---|
| Max. Sawing Wood Diameter | 700 mm | 1300 mm | 2000 mm |
| Max. Sawing Wood Size | 150x150 mm | 210x210 mm | 300x210 mm |
| Saw Blade Diameter | 4x424 mm | 2x546 mm | 1x760 mm, 1x546 mm |
| Motor Power | 11 kW x 2 | 15 kW x 2 | 22kWx1 , 15kW x 1 |
| Max. Sawing Wood Length | 6 meters | 6 meters | 6 meters |
| Machine Weight | 1500 kg | 2000 kg | 3000 kg |
