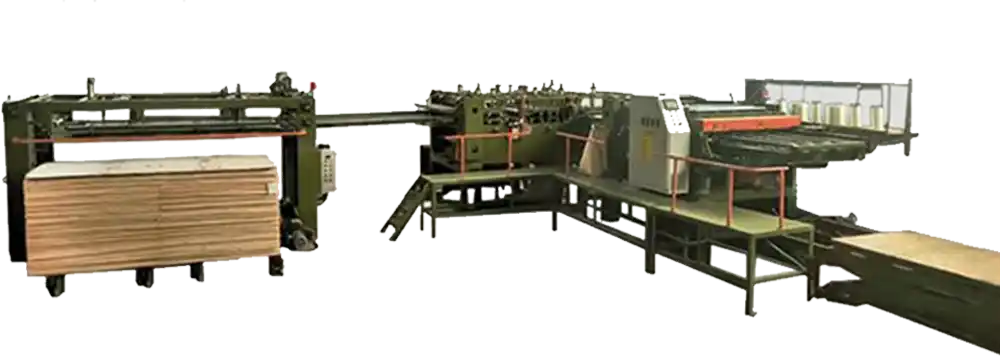

L-Type Core Finger Joint Machine

Name	L Type Core Composer
Model	DHPB-SPJ
Structure	Whole steel plate laser cutting
Transfer speed	0 - 35 m/min (adjustable)
Working efficiency	300 - 360 pcs/h (finished jointing veneer)
Convered area	100 m2
Transverse jointing part	4040 x 2510 x 1960 mm
Vertical jointing part	3800 x 2300 x 2155 mm
Stacker part	3400 x 2200 x 2480 mm
PLC	Taiwan TECO PLC
Transverse jointing drive	IINVT SERVO 3 kW x 3
Transverse jointing edging knife	INVT SERVO 3 kW
Transverse jointing fixed length knife	INVT SERVO 3 kW
Transverse jointing glue groove heat	9 kW
Vertical jointing drive	INVT SERVO 3 kW x 2
Vertical jointing fixed length knife	INVT SERVO 3 kW
Vertical jointing finished core convey	Motor 0.75 kW
Vertical jointing glue groove heat	9 kW
Stacker up and down motor	Motor 2.2 kW + 2.2 KW
Stacker upper convey motor	Motor 1.1 kW
Stacker bottom convey motor	Motor 0.75 kW
Lift motor	3 KW
AC	1 kW x 2
Working table	3 set
Lift	1 set
Outside stacker	Yes
Core veneer adjuster	Yes
Finished core lateral move	Yes
Speed adjustable	Yes
Finished core counter	Yes
Total power	54 kW
Total weight	8000 kg
