DHPB-5A1

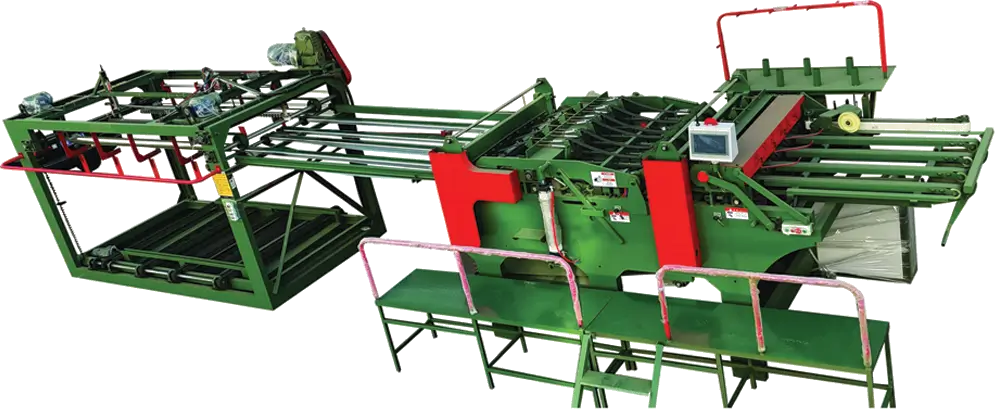

Core Veneer Composer Machine
Specification DHPB-5A1
| Product | Core veneer composer machine |
|---|---|
| Model | DHPB-5A1 |
| Drive type | Servo |
| Structure | Whole steel plate laser cutting |
| Dimensions | 12500 x 4000 x 2480 mm |
| Core composer | 4040 x 2510 x 1960 mm |
| Stacker | 3400 x 2200 x 2480 mm |
| Covered area | 50 m2 |
| Core veneer thickness | 1.0 - 3.6 mm |
| Jointing direction | Horizontal |
| Transfer speed | 0 - 35 m/minute (adjustable) |
| Working efficiency | 300 - 360 pcs/h (finished jointing veneer) |
| Knife length | 1400 mm |
| PLC | Taiwan TECO PLC |
| Touch screen | WECON (with long range control) |
| Glue groove heat | 9 kW |
| AC | 1 kW |
| Front drive | SINEE Servo Motor 3 kW |
| First rear drive | SINEE Servo Motor 3 kW |
| Second rear drive | SINEE Servo Motor 3 kW |
| Sides edging knife | SINEE Servo Motor 3 kW |
| Fixed length knife | SINEE Servo Motor 3 kW |
| Finished core convey motor | 0.75 kW |
| Stacker up and down motor | 2.2 kW + 2.2 kW |
| Stacker top convey motor | 1.1 kW |
| Stacker bottom convey motor | 0.75 kW |
| Lift motor | 3 kW |
| Numbers of servo motor | 5 |
| Thread (yarn) number | 7 |
| Glue point (nose) number | 7 |
| Working table | 2 |
| Vertical knife | 2 |
| AC | 1 set |
| Lift motor | 1 set |
| Core veneer adjuster | Yes |
| Finished core lateral move | Yes |
| Speed adjust | Yes |
| Finished veneer counter | Yes |
| Total power | 35 kW |
| Total weight | 5500 kg |
