Cutmate Series

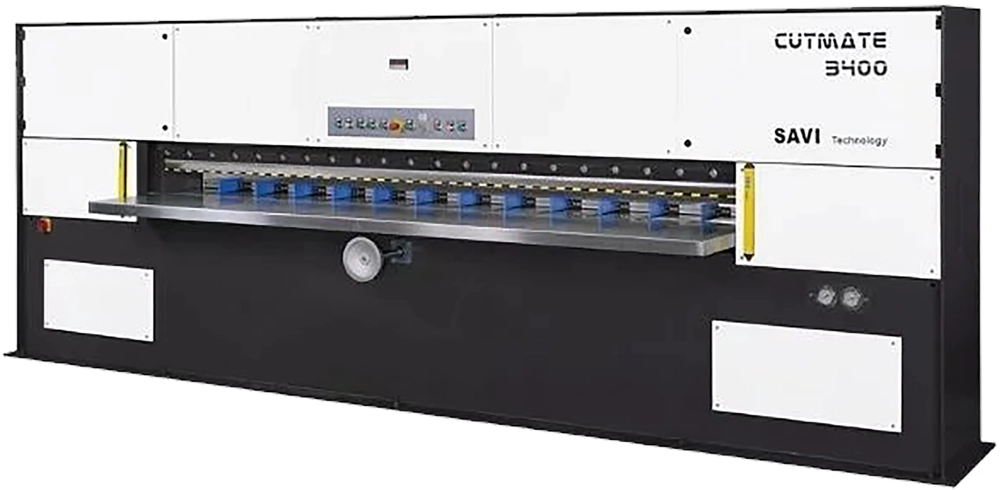

Single Knife Veneer Guillotine
Features
- Red cutting indicator
- 60 mm knife cylinder
- 150 mm wide pack beam
- With european safety standards
- Rigid welded machine body for stable movement
- Safety light barrier of knife and pack beam in front
- Magnetic scale for accurate linear position measurement of the fence
- Adjustable pressure with hydraulic knife and pack beam for all kinds of veneers
- “Safety locker” at the front end of the knife beam (unique and only in Innovator’s guillotines)
- Two-hand operation of the knife and pack beam: no movement of the pack beam against the veneer pack immediately when one push button is released
Optional
Second Cut Technology
This technology is for thick or especially hard species of veneers cutting available – By switching knife beam to second-cut mode, a thin clip of approx. 1 mm is cut off from the veneer pack after the first trim. This unique feature which can only be found in all INNOVATOR’s guillotines, is necessary when working with thick or especially hard species of veneers.
Specification Single Knife Veneer Guillotine
| Model | Cutmate 2800 | Cutmate 3400 | Cutmate 4000 |
|---|---|---|---|
| Cutting length | 2800 mm | 3400 mm | 4000 mm |
| Daylight opening | 120 mm | 120 mm | 120 mm |
| Electrical power | Approx. 7.5 kW | Approx. 75 kW | Approx. 6.5 kW |
| Cutting width | 25 - 650 mm | 25 - 650 mm | 25 - 650 mm |
| Pack beam width | 150 mm | 150 mm | 150 mm |
| Dimension | 4600 x 1750 x 1850 mm | 5200 x 1750 x 1850 mm | 5800 x 1750 x 1850 mm |
| Net weight | Approx. 4400 kg | Approx. 4900 kg | Approx. 5600 kg |
