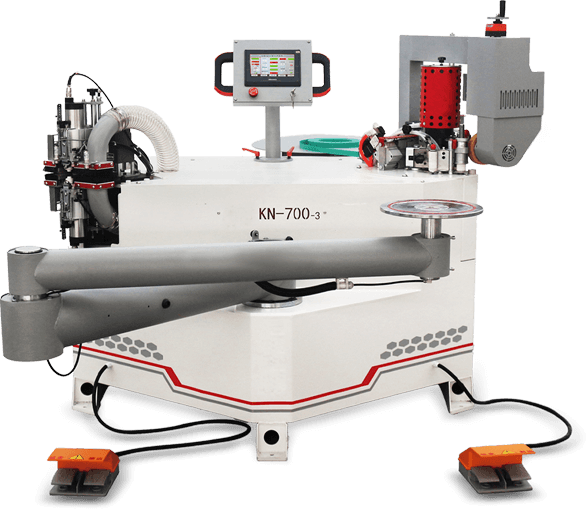

KN-700-3
Curve Edge Banding Machine
- PUR/EVA dual-purpose glue pot
- Auxiliary automatic feeding
- Laser precise docking
- Edge sealing and trimming machine head can be rotated
- Automatic acceleration and deceleration at corners
Specification of Curve Edge Banding Machine
| Model | KN700-3 |
|---|---|
| Power supply voltage | 380V / 50Hz |
| Total power | 6.5 kW |
| Glue pot capacity | 2600 ml |
| Glue pot temperature | 110°C - 210°C |
| Hot melt adhesive | PUR / EVA |
| Width of sealing strip | 14 - 70 mm |
| Thickness of edge banding strip | 0.5 - 3 mm (related to the material of the edge banding strip) |
| Trimming plate thickness | < 14 mm single trimming | 14 - 70 mm double trimming up and down (related to trimming knife) |
| Air source pressure | 0.6 - 0.8 Mpa |
| Inner arc radius | ≥ 20 mm |
| Banding speed | 0 - 30 cm/s |
| Copying speed | 0 - 24 cm/s |
| Gas storage tank volume | 2 L |
| Head rotation angle | 15° |
| External suction | ⌀150 mm |
| Air volume | 9800 m³/h |
| Type of edge strip | PVC, veneer (need to be customized), plastic, melamine, etc |
