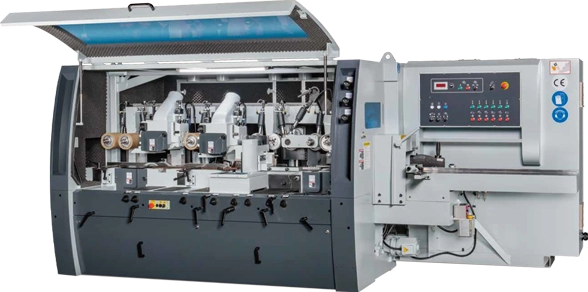

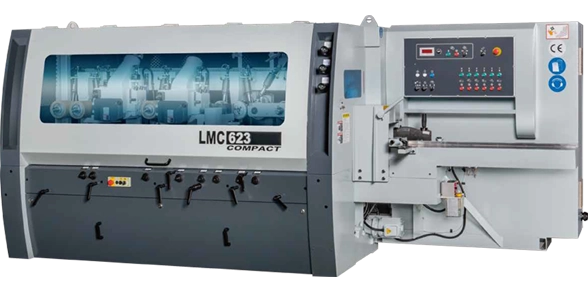

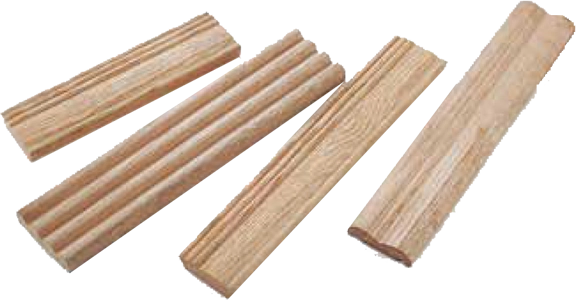

Compact Series – 4-Side Moulder
Leadermac’s wide variety of 4-side moulders have all the very latest technology for increased productivity. These heavy duty moulders are designed to provede fast feed speeds and high accuracy. The machin are precision manufactured by our highly skilled technicians – plus Leadermac service, training, and moulding know-how is offered. No matter what your moulding jobs call for, there is a Leadermac 4-side moulder that’s right for you.
Choice of Machine Models – from LMC-12C (1-Spindle) to LMC-823C (8-Spindle)
Outstanding Features:
- All moulders awarded CE certification
- 1-piece, cast iron machine frame is specially heat treated for maximum stability and rigidity as standard configuration
- Faster feed speeds of up to 24 meters a minute (80 fpm) are standard
- Adjustment of each spindle can be easily performed by using the front adjustment levers
- Each spindle is driven by an individual motor for powerful drilling and easy control
- Pneumatic pressure of the top feed rolls can be easily set to provide an outstanding feeding effect
- Table surfaces are hard-chrome plated for maximum wear resistance
- All manually adjusted turning parts are housed in permanent grease lubricated bearings for oil-free lubrication
- The full safety enclosure serves as a chip and piece guard and helps to reduce noise

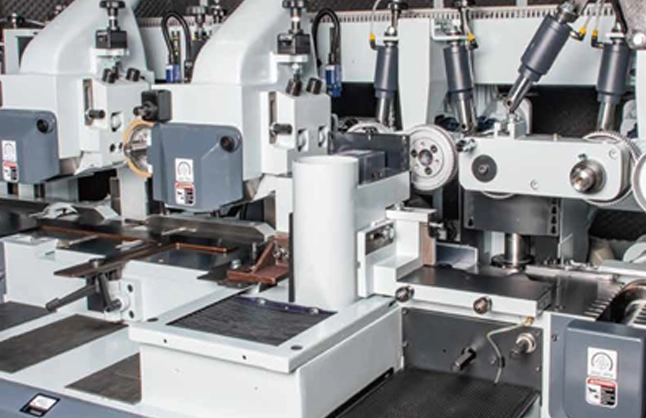

Extremely Short Feeding Capability
The cutting heads are specially designed so that there is a uniquely short distance between them. This results in a superior moulding finish
– 6.000 rpm (7,200 rpm optional) high speed spindles with inverter (VFD) controlled feed motor with LED display, feeding speed up to 24 m/min (80FPM)
Short Stock Feeder
This device permits the feeding of short stocks with a minimum length of 8″. The short stock feeder is driven by a gear drive unit for a powerful and smooth effect
Feed Table
The entire cast iron – chromed infeed table is normalization heat treated for maximum stability. Infeed table & fence adjustment is quickly accomplished by means of a quick-setting levers
Accurate Pressure Display
The position of the top head chip breakers and pressure plates are accurately displayed by digital counters. This increases cutting stability.

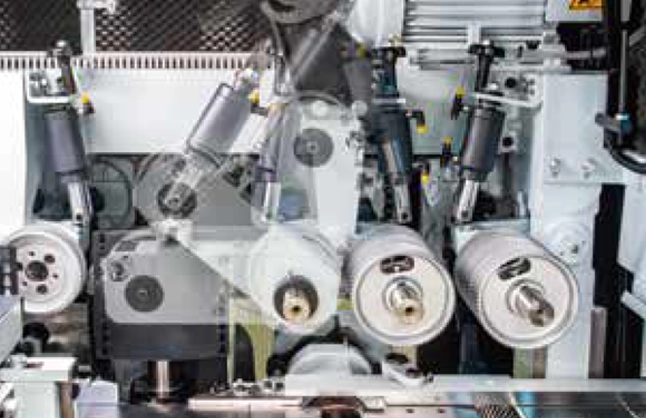

Powered Infeed Bottom Roller

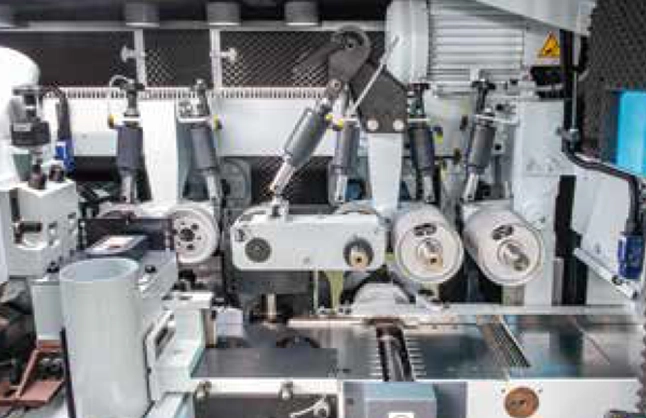

Powered infeed bottom roller (actually more powered top & bottom feed rolls than almost all of our competition.) The smooth initial feeding on the stock is achieved by means of the independently powered infeed rollers.
Liftable Auxiliary Feed Roller
The short stock powered feed mechanism provides added smoothness for short workpiece feeding. The auxilliary feed rollers are power driven for effortless feeding effect, and are quick-liftable for convenient cutterhead change or setup

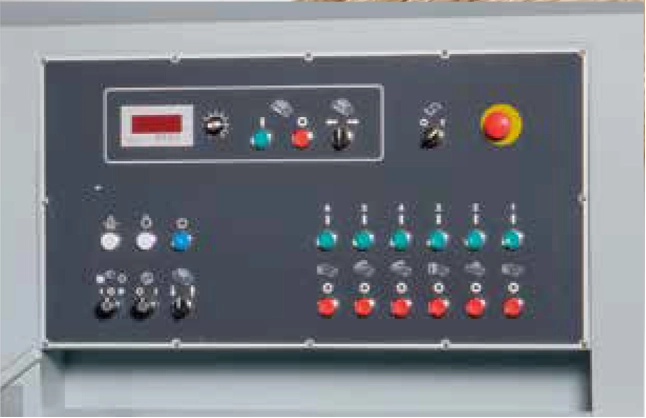

Controller
The speed is VFD inverter controlled, and all electrical components meet CE, UL & CSA standards.

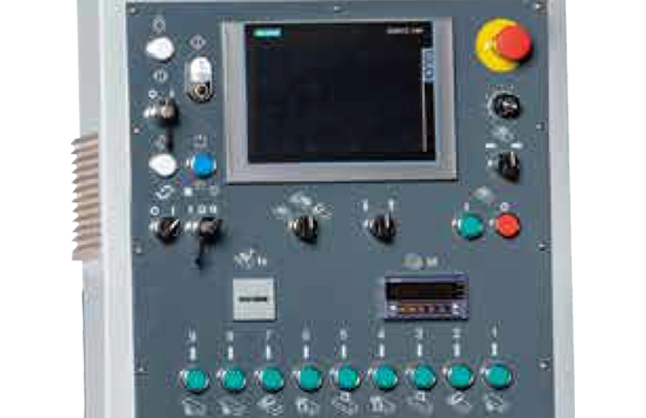

Smartset Controller (Optional)
Touch Screen Control
- 9″ HMI (Memory 300 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Setworks on any axis as desired
- The motorized axis: derived by inverter, transmitted by ball screw, feedback by encoder
- The desired values for radial and axial are displayed on HMI

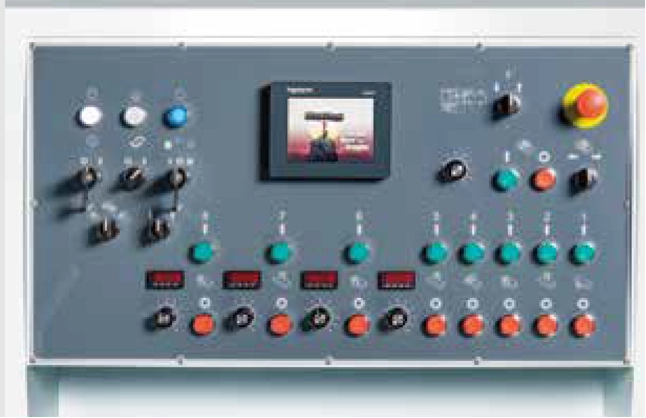

Easyset Controller (Optional)
Touch Screen Control
- 5.7″ HMI (Memory 200 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Workpiece settings on left and top axis as desired
- The width and thickness setting can be easily set using the programmable controller
- The desired values for thickness are displayed on and LED readout
A Wide Range of Spindle Configurations
LMC – 423
4 Spindle
LMC – 523
5 Spindle
LMC – 623
6 Spindle
LMC – 723
7 Spindle
LMC – 823
8 Spindle
Specification Compact Series - 4 Side Moulder
| Model | Standard Machine | Optional Specs |
|---|---|---|
| Working width (at a tool cutting circle of 163 mm) | 15 - 230 mm (0.59" - 9.1") | to 240 mm, 300 mm (9.4", 12" optional) |
| Working height / thickness (at a tool cutting circle of 163 mm) | 10 - 150 mm (0.39" - 6") | to 6 mm & 200 mm (to 1/4" & to 8") - optional |
| Number of spindles, min-max | 1 to 8 heads / spindles | All different types of spindle configurations - optional |
| basic motor capacity of feed - variable speed drive | 4 kW / 5 HP | 5.5 kW / 7.5 HP or 7.5 kW / 10 HP - optional |
| Feed speeds, infinitely variable | 6 -24 m/min (20 - 80 fpm) | |
| Basic motor capacity per spindle | 7.5 kW / 10 HP Vert & 11 kW / 15 HP Hor. | up to 18.5 kW / 25 HP - optional |
| Spindle speed | 6000 rpm | 7200 rpm - optional |
| Spindle diameter | 40 mm (1.6") | 50 mm, 1 1/2", 1 13/16" |
| Tool cutting circle, 1st bottom spindle, min-max | 125 - 160 mm (4.9" - 6.29" | |
| Tool cutting circle, vertical spindles, left, min-max | 112 - 200 mm (4.4" - 7.9") | |
| Tool cutting circle, vertical spindles, right, min-max | 112 - 200 mm (4.4" - 7.9") | |
| Tool cutting circle horizontal spindles, top, min-max | 112 - 200 mm (4.4" - 7.9") | |
| Tool cutting circle, borizontal spindles, bottom, min-max | 112 - 200 mm (4.4" - 7.9") | |
| Feed roll diameter | 140 mm (5.5") | |
| Top feed roll width - each roll with multiples on all top shaft | 50 mm (2") | |
| Bottom feed rolls width | Full Width | |
| Pneumatic pressure for feed rolls, max | 6 bar (85 psi) | |
| Adjustment range for infeed table | 10 mm (0.4") | |
| Adjustment range for edge-jointing fence | 10 mm (0.4") | |
| Adjustment range of vertical spindles (axial) | 40 mm (1.58") | 80 mm (3.14") - optional with setworks if desired |
| Adjustment range of horizontal spindles (axial) | 20 mm (0.79") | |
| Length of the infeed straightening table (bottom head cut) | 2M (78.7") | 2.5 or 3M (98" or 120" - optional) |
| Diameter of dust hood for vertical spindles | 125 mm (5") | |
| Diameter of dust hood for horizontal spindles | 125 mm (5") |
| Standard Configuration | Standard Machine | Optional Specs |
|---|---|---|
| Chainless cardan shaft feed system w/ HD gearbox | Standard | |
| Motorized vertical adjustment of feed beam | Standard | |
| Lateral pressure rollers opposite first right spindle | Spring tensioned standard | Pneumatic tensioned - optional |
| Sectional radial lift - linkage style top head chipbreakers | Spring tensioned standard | Pneumatic tensioned - optional |
| Mechanical digital readouts for the pressure shoes & hold-down unit | Standard | Metric or inch readouts |
| Mechanical digital readouts on all spindle axis | Single - standard | Dual on near side, & tops - radial readouts & quick set - optional |
| Central location of all lubrication points along the front of the machine | Standard | |
| Mechanical digital readouts for the pressure shoes & hold-down unit | Standard | Metric or inch readouts |
| Mechanical digital readouts on all spindle axis | Single - standard | Dual on near side, & tops - radial readouts & quick set - optional |
| Central location of all lubrication points at the front of the machine | Standard | |
| Table lube system | Manual 1 shot | Auto electronic - timer controlled - optional |
| Full sound and safety enclosure | Standard |
| Optional Equipment | |
|---|---|
| A wide range of spindle configurations | SmartSet EL touch screen control with quick-set setworks, special digital |
| (Other configurations available on request) | Position readouts and libraty or stored information |
| Universal last head or rip saw attachment | inverter motor cutterhead brakes |
| Available - option | Split top head pressure plates |
| Tilting top pressure plates |
